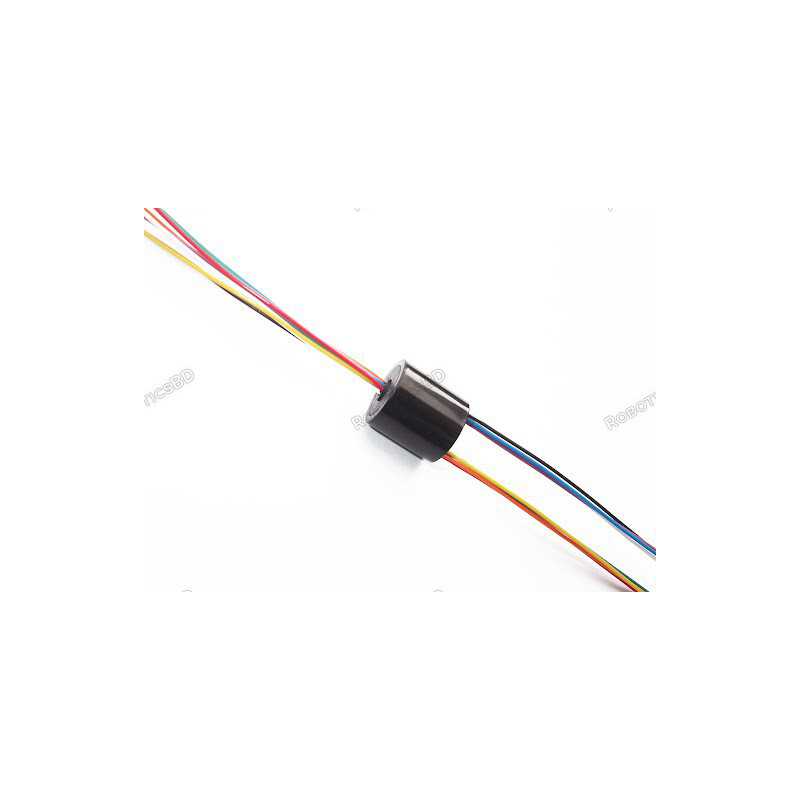

Capsule slip ring is a standard and off-the-shelf unit that uses gold contacts on the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections. It offers a low torque design with gold-to-gold contacts. This slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or electrical rotary joint. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| External dimensions | Ø12.6mm outer diameter, 11.9mm length |
| Housing material | Black plastic |
| Number of channels and capacity | 2-6 channels, each channel below 2A signal or power |
| Rated voltage | 500VAC@50Hz |
| Adjacent circuit insulation resistance | 500MΩ@ 500VDC |
| Wire Specifications | AWG28 Silver Plated Teflon, UL○R |
| Contact Material | Gold-Gold |
| Dynamic resistance fluctuation value | ≤8mΩ |
| Working speed and life: | 0-150rpm/40 million revolutions |
| Sealing class | IP51 |
| Working temperature | -40℃~ +80℃ |
| Minimum rotational torque | ≤0.1N.M |
| Shipment Weight | 0.015 kg |
| Shipment Dimensions | 12 × 8 × 2.5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Slip Ring - 6 Wire
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of Solid Round Slip Ring 6 Wire in Bangladesh is BDT 990 You can buy the Solid Round Slip Ring 6 Wire at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
