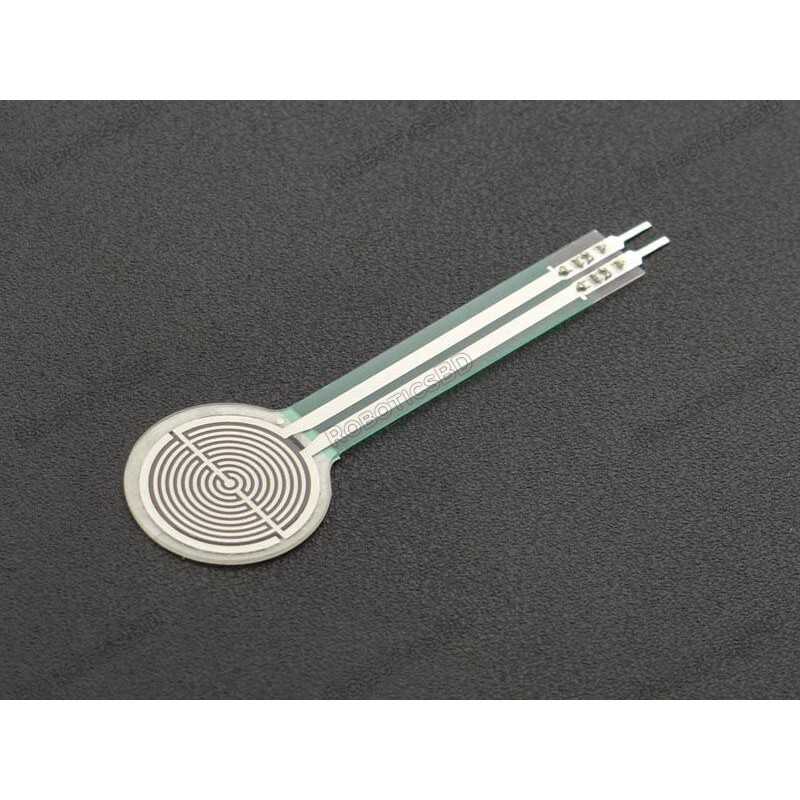

Get the high-quality Force pressure sensor 0.5-inch diameter at a low price. This is a force sensitive resistor with a round, 0.5″ diameter, sensing area. This FSR will vary its resistance depending on how much pressure is being applied to the sensing area. RoboticsBD
The harder the force, the lower the resistance. When no pressure is been apply to the FSR its resistance will be larger than 1MΩ. This FSR can sense applied force anywhere in the range of 100g-10kg. RoboticsBD
Two pins extend from the bottom of the sensor with 0.1″ pitch making it bread friendly. There is a peel-and-stick rubber backing on the other side of the sensing area to mount the FSR. Just Connect a resistor to form a voltage divider and measure the voltage at the junction to find the force applied.
These sensors are simple to set up and great for sensing pressure, but they aren’t incredibly accurate. Use them to sense if it’s being squeezed, but you may not want to use it as a scale. RoboticsBD
This sensor can easily interface with Microcontrollers, Arduino Boards, Raspberry Pi, etc. using an Analog to Digital Converter (ADC). so to get the best deal on this pressure sensor at affordable price buy now.
Note: The colour of the product may vary. You may get any colour while shipping.Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- Testing and Measurement Equipment.
- Embedded Electronics.
- OEM Development Kit.
- Consumer Electronics.
- Multimeter. RoboticsBD
Features:
- Easily customizable to a wide range of sizes.
- Cost-effective.
- Ultra-thin: 0.45 mm.
- Robust: up to 10 million actuations.
- Simple and easy to Integrate.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Shape |
Circular |
| Sensing Area diameter (mm) |
14 |
| Min Pressure |
100 gm |
| Max Pressure |
10 Kg |
| Diameter (mm) |
18 |
| Length (mm) |
60 |
| Weight (gm) |
2 |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
10 × 5 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Integration Guide.
- Hookup Guide.
Package Includes:
1 x Force Sensor Resistor 0.5″ 14.7mm – Pressure Sensor.
