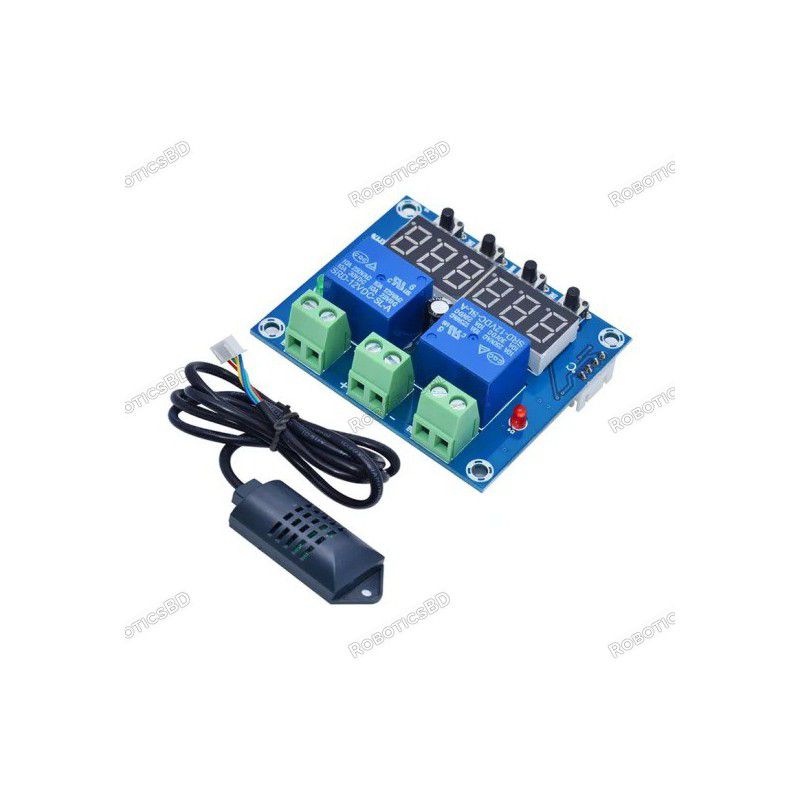

XH-M452 DC 12V LED Digital Thermostat Temperature Humidity Control Module
The XH-M452 temperature and humidity control module is a versatile and precise solution for temperature and humidity regulation in various applications. With a power supply of DC 12V, this module offers reliable performance and accuracy.
Key Specifications:
Temperature Control:
Humidity Control:
Fault Codes:
Package Includes:
The XH-M452 module provides high precision and automatic constant temperature and humidity control, making it suitable for various applications requiring precise environmental regulation.
Temperature control:
1. Set the temperature + :Normal display mode, long press the + key for 3 seconds, start temperature numerical flashing, press the + / - key setting values, wrong operation after 5 seconds, automatically return to detect temperature display
2. Set the temperature - :Normal display mode, long press - button for 3 seconds, stop numerical flashing temperature, press the + / - key set value
3. Restore the factory Settings :At the same time long press temperature, and humidity + key for 3 seconds, digital display, 888, 888
Set the start temperature:Long press the + key, start the flashing temperature, set start temperature by + / - key
set Stop temperature: long press - button, stop flashing temperature, set stop temperature by + / - key
Humidity Settings
Set to start humidity: long press the + key, start the humidity value flashing, set by + / - key launch humidity value
Set stop humidity: long press - to stop humidity value, set by + / - key to stop the humidity value
Fault code: display LLL mean the sensor fault display HHH mean Test temperature exceed the range of measurement
1 x XH-M452 DC 12V LED Digital Thermostat Temperature Humidity Control Thermometer Hygrometer Controller Relay Module SHT20 Sensor Probe
The latest price of XH-M452 Temperature and Humidity Control Module with Digital Display in Bangladesh is BDT 850 You can buy the XH-M452 Temperature and Humidity Control Module with Digital Display at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
