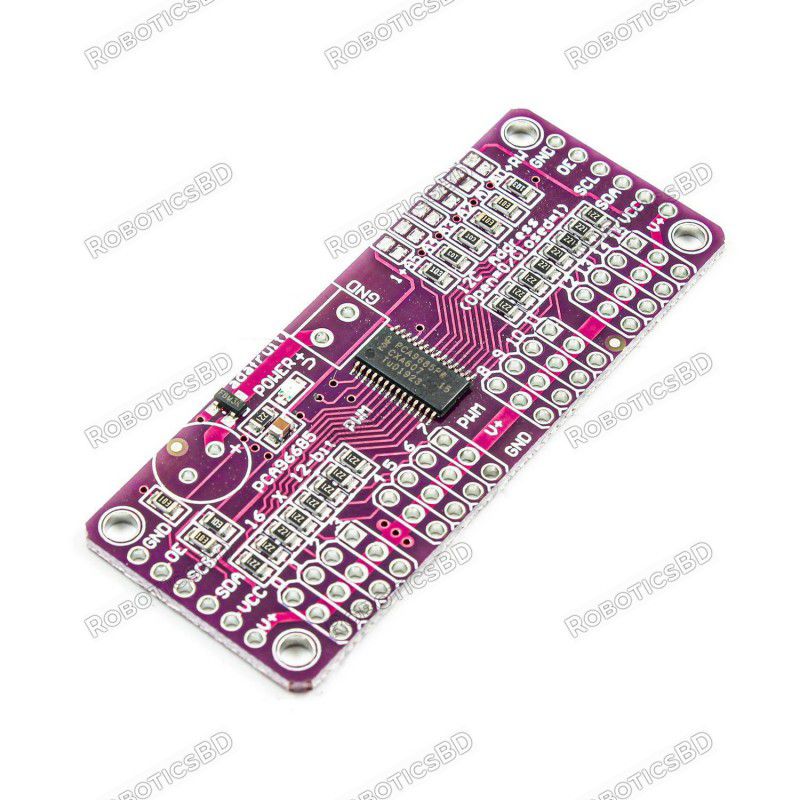

The CJMCU PCA9685 16-Channel PWM/Servo Controller Module is a highly versatile and efficient solution for controlling up to 16 PWM outputs independently over an I2C interface. Powered by the robust PCA9685 chip, this module offers 12-bit resolution per channel, allowing for 4096 levels of programmable brightness or position control.

Designed for applications such as servo motor control, RGB/RGBA LED backlighting, LED displays, and LCD backlights, the PCA9685 module features a built-in clock, eliminating the need for continuous communication to refresh outputs. It supports Fast-mode Plus (Fm+) I2C communication up to 1 MHz, making it ideal for high-speed and dense data environments.

Thanks to its 5V-tolerant inputs, it can safely interface with both 3.3V and 5V microcontrollers, making it perfect for Arduino, Raspberry Pi, ESP32, STM32, and other platforms.

Key Features:

• 16 independent PWM channels, 12-bit resolution (4096 steps)

• Built-in 25MHz oscillator, no external clock needed (optional external 50MHz supported)

• PWM Frequency Range: 24Hz to 1526Hz

• Duty Cycle Range: 0% to 100% adjustable for each channel

• I2C Interface with hardware address pins, allowing up to 62 devices on the same bus

• Software programmable All Call and Sub Call addresses for group addressing

• 5V-tolerant inputs, safely works with 3.3V or 5V controllers

• Low standby current and energy-efficient operation

• Hot insertion support and noise-filtered SDA/SCL lines for stable communication

• Robust protection: ESD, latch-up resistance, and glitch-free startup

• Compact and practical size: Easy to integrate into different projects

Technical Specifications:

• Driver Chip: PCA9685

• Operating Voltage: 2.3V to 5.5V

• PWM Resolution: 12-bit (4096 steps)

• PWM Frequency Range: 24Hz to 1526Hz

• Communication Interface: I2C

• Output Current: 25mA sink / 10mA source per channel

• Maximum I2C Bus Speed: 1MHz (Fast-Mode Plus)

• Internal Oscillator: 25MHz

• Operating Temperature Range: -40°C to +85°C

• Module Size: 65mm x 30mm

How to Use:

1. Connect the module’s VCC and GND to the microcontroller.

2. Connect SDA and SCL to the corresponding I2C lines of your controller.

3. Use libraries (available for Arduino, Raspberry Pi, etc.) to easily control servos or LEDs.

4. Set PWM frequency and adjust duty cycles individually for each output channel.

Address Configuration:

• Six hardware address pins allow connecting up to 62 modules on a single I2C bus.

Output Behavior:

• Each output can be configured as push-pull or open-drain.

• Outputs can be updated immediately or after STOP command, depending on setup.

Applications:

• Servo motor control (robotics, animatronics, CNC machines)

• RGB/RGBA LED matrix and backlighting

• Industrial display lighting

• Home automation lighting systems

• LCD/LED backlight driving

• Signal generation and dimming systems

Package Includes:

• 1 x PCA9685 16-Channel 12-bit PWM/Servo Driver Module

Why Choose the PCA9685 16-Channel PWM/Servo Module?

• Control 16 PWM outputs with only 2 microcontroller pins

• High precision 12-bit PWM for smooth and accurate movement or brightness control

• Supports both 3.3V and 5V logic, perfect for a wide range of controllers

• Fast and reliable I2C communication even in high-capacitance environments

• Robust design with built-in protection and energy-saving features

Expand your project’s control capabilities with the powerful and flexible PCA9685 16-Channel 12-bit PWM/Servo Driver Module.
Order now and bring precision control to your robotics, lighting, or automation designs!
