The L9110S 4-Channel DC Motor Driver Board is a compact and reliable solution for controlling multiple DC motors or stepper motors with ease. Featuring four integrated L9110S H-Bridge driver chips, this module allows for simultaneous control of up to four DC motors or two 4-wire 2-phase stepper motors, making it ideal for robotics, smart cars, and automation projects.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement

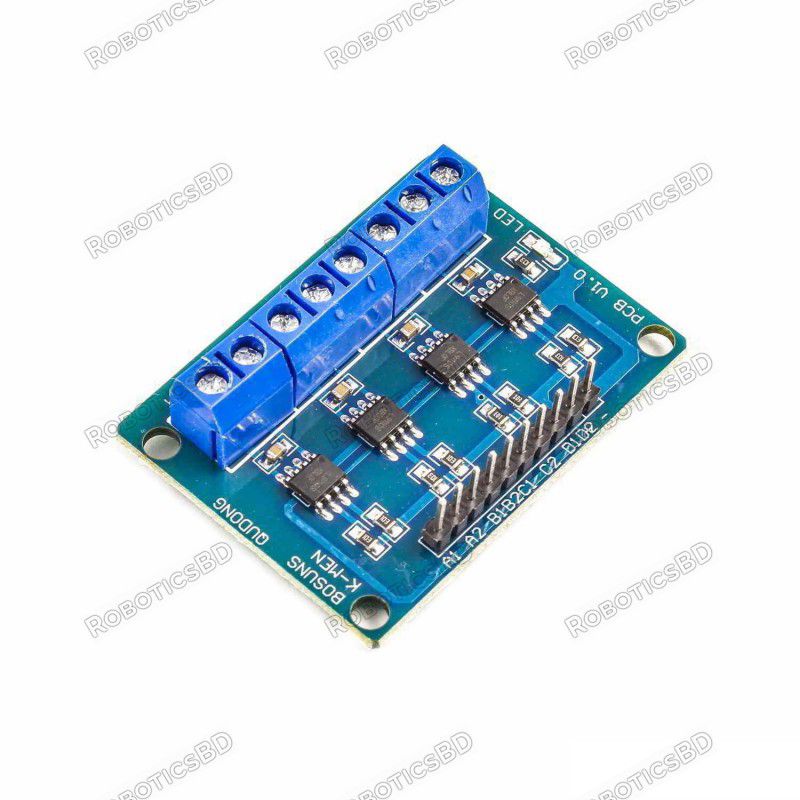

The L9110S 4-Channel DC Motor Driver Board is a compact and reliable solution for controlling multiple DC motors or stepper motors with ease. Featuring four integrated L9110S H-Bridge driver chips, this module allows for simultaneous control of up to four DC motors or two 4-wire 2-phase stepper motors, making it ideal for robotics, smart cars, and automation projects.
Designed to operate within a wide voltage range of 2.5V to 12V, with a working current of up to 0.8A per channel, the module ensures excellent compatibility with most small and medium-sized motors commonly found in smart vehicles and DIY electronics projects. With clear interface markings and built-in power indicators, the board offers a user-friendly experience, ensuring quick setup and safe operation.
Integrated L9110S Chips: Built-in four-channel L9110S H-Bridge driver chips for efficient motor control.
Simultaneous Control: Capable of driving four DC motors or two 4-wire stepper motors at the same time.
Wide Voltage Support: Operates from 2.5V to 12V with up to 0.8A current per channel.
User-friendly Interface: Includes 10P bent pin headers and 8P PCB terminals for easy connections to microcontrollers and motors.
Safe and Reliable: Power indicator lights for VCC and GND provide operational feedback for safe usage.
Compact Design: Suitable for compact and embedded systems.
Model: Motor Driver Controller Board
Motor Driver Chip: L9110S
Operating Voltage: 2.5V to 12V DC
Operating Current: Up to 0.8A per channel
Motor Compatibility: DC motors or 2-phase 4-wire stepper motors
Pin Spacing: 2.54mm
Dimensions: Approximately 44mm x 38mm x 12mm
10P Black Curved Pin Header:
A1, A2: Control inputs for Motor A
B1, B2: Control inputs for Motor B
C1, C2: Control inputs for Motor C
D1, D2: Control inputs for Motor D
: External 2.5V-12V Power Input
: Ground (GND)
8P PCB Terminal Block:
MOTORA: Connect to DC Motor A
MOTORB: Connect to DC Motor B
MOTORC: Connect to DC Motor C
MOTORD: Connect to DC Motor D
Connect motors to the MOTORA, MOTORB, MOTORC, and MOTORD terminals.
Connect VCC (2.5V-12V) and GND to your power source.
Control each motor using the corresponding input pins (A1/A2, B1/B2, etc.).
Logic high/low signals determine motor direction:
A1 high, A2 low → Motor A forward
A1 low, A2 high → Motor A reverse
Similarly for Motors B, C, and D.
Smart car motor control
Robotic systems
Automated guided vehicles (AGVs)
DIY electronic projects
Educational kits for learning motor control
Industrial conveyor systems
1 x L9110S 4-Channel DC Motor Driver Board
Multiple motor control with a single, compact module
Stable and efficient H-Bridge design
Wide compatibility with standard microcontrollers like Arduino, STM32, ESP32, and Raspberry Pi
Simple wiring and clear labeling for easy setup
Reliable performance for DIY and professional automation projects
Power up your robotics and automation projects with the L9110S 4-Channel DC Motor Driver Board.
Order now and experience seamless and flexible motor control!
The latest price of L9110S 4-Channel DC Motor Driver Board in Bangladesh is BDT 260 You can buy the L9110S 4-Channel DC Motor Driver Board at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
