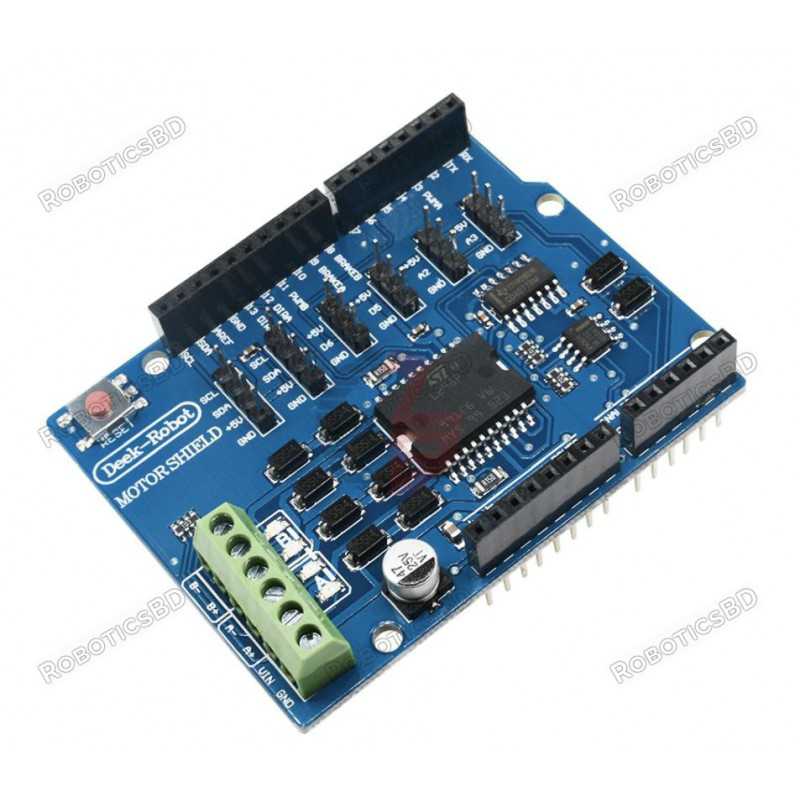

This is 2Amp Motor Driver Shield newly revised dual channel 2A motor shield. It uses L298P chip which allows control of two 5 – 26V DC brush motors with the maximum of 2A current each channel. This shield can be directly stacked onto standard Arduino UNO, Duemilanove, Leonardo, Mega and also CIKU (PIC18F4550). RoboticsBD
Motor power polarity protection, also fast test or manual control buttons for each channel of the motor. Adding LSS05 (Auto-calibration line sensor) to Arduino will be easy as this shield comes with the socket for it. RoboticsBD
The speed control is achieved through conventional PWM which can be obtained from Arduino‘s PWM output pin 5 and 6. The enable/disable of motor driver is controlled by Arduino pin 4 and 7, this is labeled as Signed magnitude control. You have the option to configure it to become Locked Anti-phase which uses PWM signal to decide direction, speed and also start/stop of the motor. The control modes can be configured from jumpers and also program.
The Motor shield can be powered directly from Arduino or from the external power source (jumper to select). It is strongly encouraged to use the external power supply to power the motor shield. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
This module is compatible with following Arduino versions, click on their name below to buy them
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Motor Channel | 2 |
| Operating Voltage (VDC) | 6.5 ~ 12 |
| Peak Current (A) | 2 |
| Continuous Current (A) | 0.8 |
| Length (mm) | 69 |
| Width (mm) | 57 |
| Height (mm) | 24 |
| Weight (gm) | 30 |
| Shipment Weight | 0.033 kg |
| Shipment Dimensions | 8 × 7 × 4 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Dual Channel Motor Driver Shield For Arduino.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of Dual Channel Motor Driver Shield For Arduino in Bangladesh is BDT 1,399 You can buy the Dual Channel Motor Driver Shield For Arduino at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
