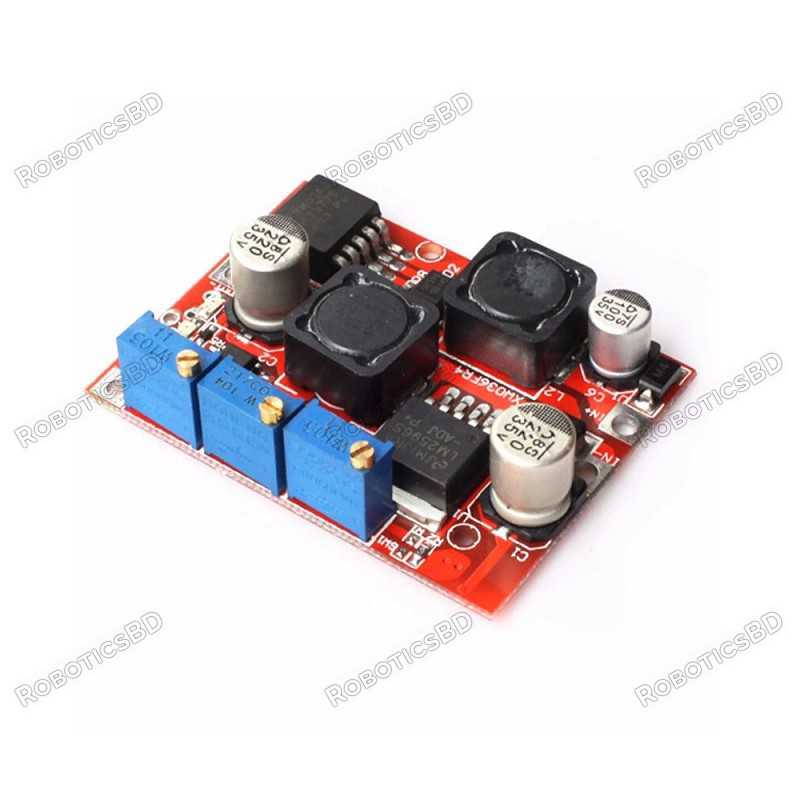

The Solar/Wind Energy Charging CC/CV Power Supply Module is a versatile and efficient power management solution for renewable energy applications. This non-isolated buck-boost module features constant current (CC) and constant voltage (CV) functionality, making it perfect for charging various types of batteries, including ferroelectric, nickel-cadmium, and nickel-metal hydride batteries. It can regulate power from solar panels or wind generators and supports adjustable output currents up to 2A, with a maximum of 4A. Its high-power capabilities extend to LED driving and car power supply regulation, ensuring optimal performance for DIY and industrial applications. Compact and reliable, this module is essential for renewable energy projects. Featured By RoboticsBD.
Note:
Note: This Product is available in two different variants of IC ( LM 2577s and XL6019E1 ) with the same working, we will ship it randomly.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Module Type | Non-Isolated Buck-Boost CC/CV |
| Input Voltage Range | 4V to 35V |
| Output Voltage Range | 1.25V to 30V |
| Output Current | Rated 3A, Max 4A |
| Constant Current Range | 0~2A (adjustable) |
| Application Voltage | 4V, 6V, 12V, 14V, 24V batteries |
| Efficiency | Up to 92% |
| Cooling Requirement | Heat sink needed for >15W load |
| Applications | Solar, Wind, Automotive, DIY LEDs |
| Dimensions (LxWxH) | 5 x 4 x 2 cm |
| Shipment Weight | 0.023kg |
| Shipment Dimensions | 5x4x2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Solar/Wind energy Charging CC/CV Power Supply Module
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of Solar/Wind energy Charging CC/CV Power Supply Module in Bangladesh is BDT 490 You can buy the Solar/Wind energy Charging CC/CV Power Supply Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
