Note: Relay might be different from the picture as per stock
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement

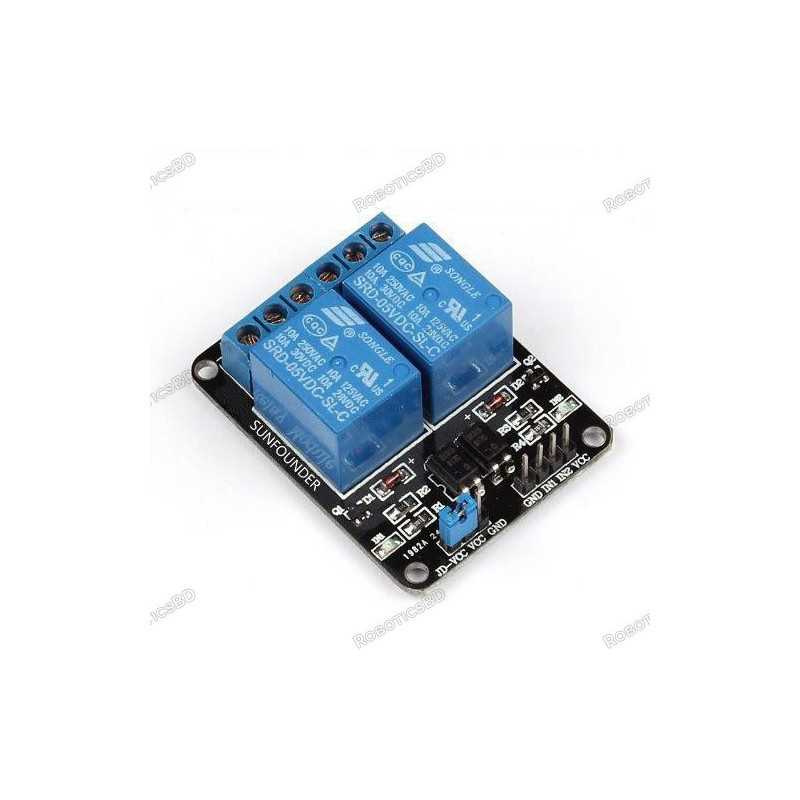

This is a 2 Channel isolated 5V 10A relay module Optocoupler for Arduino PIC ARM. It can be used to control various appliances and other types of equipment with a large current. It can be controlled directly with 3.3V or 5V logic signals from a microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Jumper Instruction = The relay can be turned on when we connect 5v to one end and the other to -5v / Gnd, while talking about the jumper, if we short the VCC and the middle pin, then our relay will act as high level-triggered relay means that when we will apply + 5V input on its input pin it will be turned on and when the jumper will be set to “middle and GND”, it will act as a low-level triggered relay, It means that relay will be triggered when we implement the 5V / GND on its input pin. RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Relay Type | Low Level Trigger |
| Logic Input (V) | 3.3 ~ 5 |
| Trigger Voltage (VDC) | 5 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
| Length (mm) | 50.6 |
| Width (mm) | 39 |
| Height (mm) | 19.5 |
| Weight (gm) | 28 |
| Shipment Weight | 0.03 kg |
| Shipment Dimensions | 6 × 5 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x 2 Channel 5V Relay Board Module.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of 2 Channel 5V Relay Board Module in Bangladesh is BDT 139 You can buy the 2 Channel 5V Relay Board Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
