Note: Relay might be different from the picture as per stock
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement

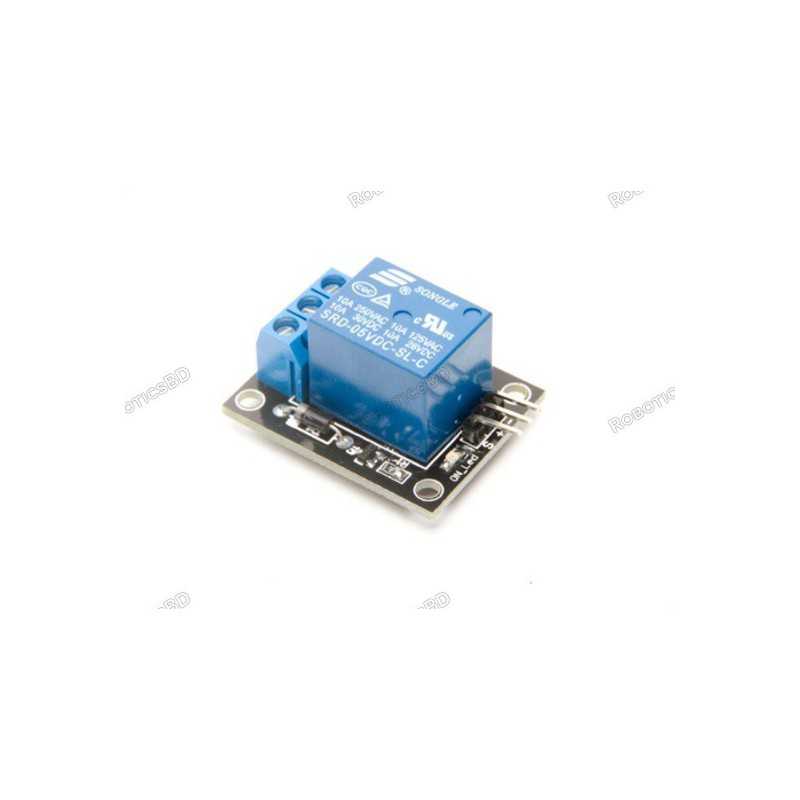

This 5V relay module allows you to switch real world devices with your Arduino projects. It can switch up to 10A per channel. Includes back-EMF protection and LEDs so you can easily see the state of the outputs and even have optical isolation to protect your development boards. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
Note: Product images/ Components brand may vary from actual product as our stock rotates.
Note: PCB might be different from the picture as per stock
| General Specification | |
| Channel | 1 |
| Supply Voltage | 5V DC |
| Current Ratings | 10A at 250VAC/10A at 30V DC |
| Dimensions | 40 x 27 x 18mm |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 12 × 8 × 2.5 cm |
Please allow 5% measuring deviation due to manual measurement.
1 x 5v Relay module for Arduino
The latest price of 5V Relay Module for Arduino in Bangladesh is BDT 75 You can buy the 5V Relay Module for Arduino at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
