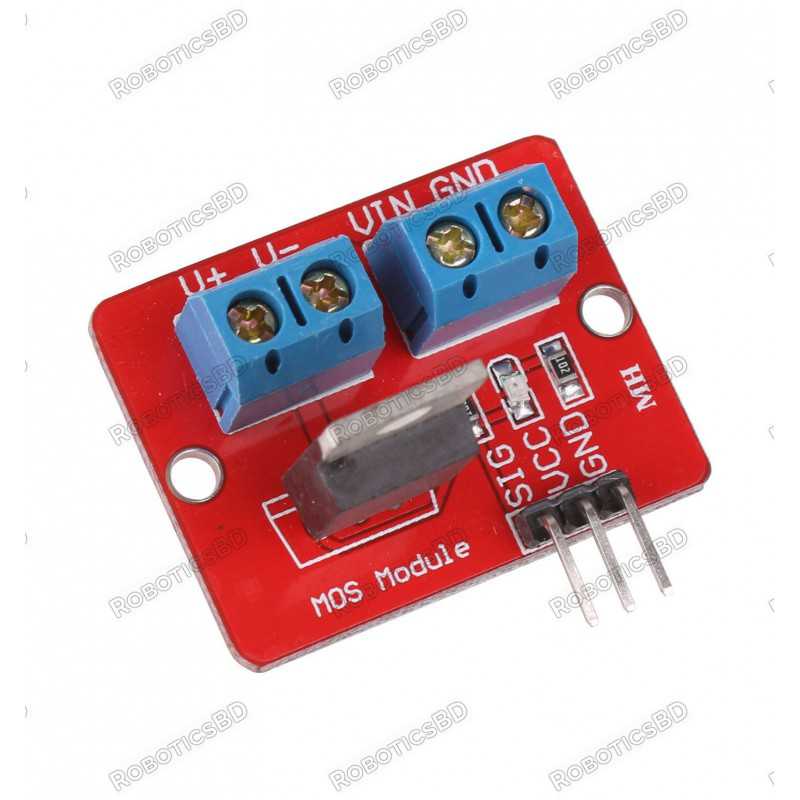

• Uses IRF520 MOSFET, can be used as a PWM output driver.
• Allows up to 24V DC load, such as LED lamp strip, DC motor, micro pump and solenoid valve. Useful for switching higher voltage loads using Arduino
• Suitable for Arduino, SCM, ARM and Raspberry Pi

• Signal Voltage: 3.3V/5V
• Interface: Digital Level
• Output Load Voltage: 0~24V
• Output Load Current: < 5A



  Interfacing IRF520 MOSFET Driver Module with Arduino

  Step 1: Circuit

  The following circuit shows how you should connect Arduino to IRF520 sensor. Connect wires accordingly.



  Step 2: Code

  Upload the following code to Arduino.

  /*
    IRF520-MOSFET-Driver
    made on 28 oct 2020
    by Amir Mohammad Shojaee @ Electropeak
    Home

  */
  #define PWM 3
  int pot;
  int out;

  void setup() {
    Serial.begin(9600);
    pinMode(PWM,OUTPUT);

  }


  void loop() {
    pot=analogRead(A0);
    out=map(pot,0,1023,0,255);
    analogWrite(PWM,out);
  }


  Arduino

  Copy

  In this code, by rotating the potentiometer, the value of PWM pin 3 changes from 0 to 5. The voltage of the motor also changes from 0 to 9.
  It can be seen that by turning the potentiometer, the motor speed can be controlled.

  Warning

  Be careful not to fully turn the pententiometer because the motor is a 6 volts DC motor and the input voltage is 9 volts and the motor may be damaged. Of course, you can use a lower voltage battery or a higher voltage motor.

  Unlock the Potential of IRF520 MOSFET Driver Module with Arduino

  The IRF520 MOSFET Driver Module combined with Arduino opens up a world of possibilities for motor control applications. By leveraging the power of PWM and the ease of Arduino programming, you can achieve precise and efficient control over your DC motors. Experiment with different voltages, explore advanced motor control techniques, and take your Arduino projects to new heights with the IRF520 MOSFET Driver Module.
