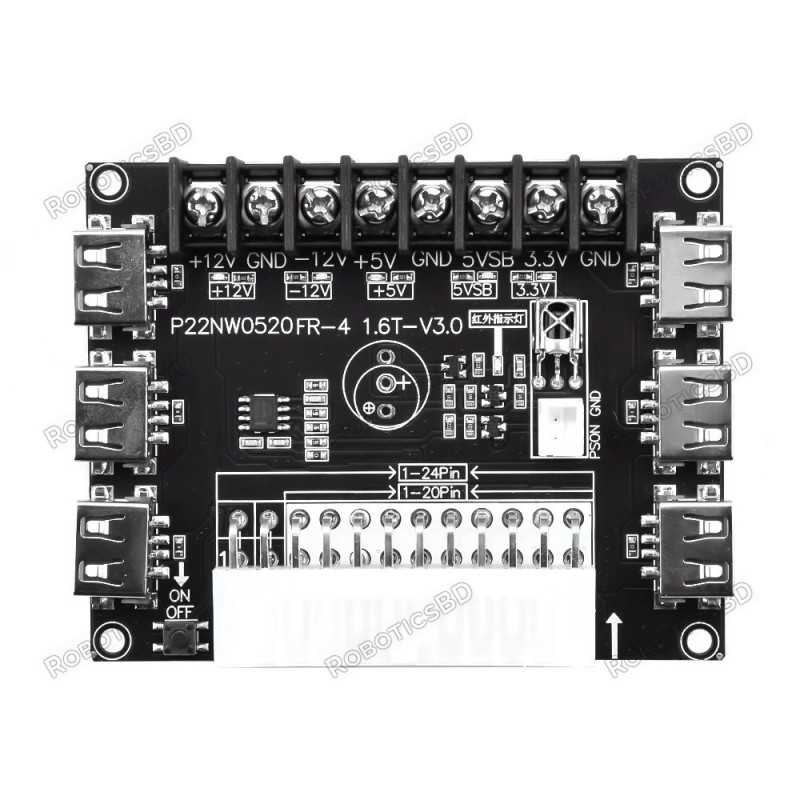

ATX power supply breakout board allows for easy connection to the outputs of a standard ATX style PC power supply with 20 or 24 pin connections.
Easily supply power to your projects from a high-quality and inexpensive (ofter surplus) PC-style power supply. This board provides +3.3V, +5V, +12V, -12V and 5VSB DC outputs. Plug your ATX power supply into the input connector.
Board also has six USB ports, each capable of delivering 5V at up to 2.1A output current.
Each voltage output has an indicator LED showing the status (on indicates power good).
The onboard switch can be used to turn the power supply on or off as needed.
The +3.3V, +5V, +12V, -12V, and 5VSB outputs are extended to a screw terminal block.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
ATX power supply breakout board allows for easy connection to the outputs of a standard ATX style PC power supply with 20 or 24 pin connections.
Easily supply power to your projects from a high-quality and inexpensive (ofter surplus) PC-style power supply. This board provides +3.3V, +5V, +12V, -12V and 5VSB DC outputs. Plug your ATX power supply into the input connector.
Board also has six USB ports, each capable of delivering 5V at up to 2.1A output current.
Each voltage output has an indicator LED showing the status (on indicates power good).
The onboard switch can be used to turn the power supply on or off as needed.
The +3.3V, +5V, +12V, -12V, and 5VSB outputs are extended to a screw terminal block.
The latest price of ATX Power Supply Breakout Board in Bangladesh is BDT 790 You can buy the ATX Power Supply Breakout Board at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
