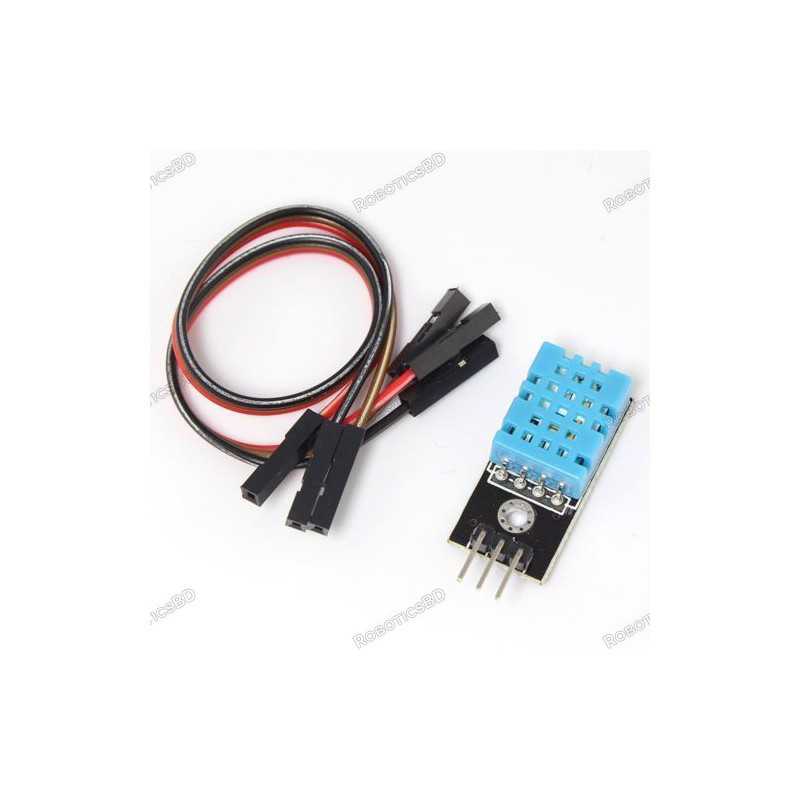

The DHT11 Humidity & Temperature Sensor Module is a basic, low-cost digital temperature and humidity sensor. It uses a capacitive humidity sensor and a thermistor to measure the surrounding air and outputs a digital signal on the data pin (no analog input pins needed). Its very simple to use, and libraries and sample codes are available for Arduino and Raspberry Pi. RoboticsBD
This DHT11 Humidity & Temperature Sensor Module makes is easy to connect to an Arduino or microcontroller as it includes the pull-up resistor required to use the sensor. Only three connections are required to be made to use the sensor – VCC, GND, and Output. We have also included the cables required to connect the DHT11 to a microcontroller. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Indoor Climate Monitoring: Monitor the temperature and humidity levels in homes, offices or greenhouses to ensure optimal living conditions.
Agriculture: Monitor soil moisture levels and environmental conditions to optimize crop growth and yield.
Weather Station: Build a weather station that measures temperature, relative humidity, and pressure to predict weather patterns.
HVAC Control: Automatically control heating, ventilation, and air conditioning systems based on real-time temperature and humidity data.
Humidor Control: Monitor and maintain proper humidity levels for storing cigars, wine or other items sensitive to temperature and humidity fluctuations.
Possible Pinout:
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Model | DHT11 |
| Input Supply voltage (VDC) | 3.3 ~ 5 |
| Supply Current (mA) | measurement 0.3mA standby 60μA |
| Temperature range (°C) | 0 ~ 50 |
| Temperature measurement error | ±2°C |
| Humidity measurement range | 20% ~ 95%RH |
| Humidity measurement error | ±5%RH |
| Resolution | 16 Bit |
| Output form | Digital output |
| Length (mm) | 28 |
| Width (mm) | 13.5 |
| Height (mm) | 7 |
| Weight (gm) | 448 |
| Shipment Weight | 0.03 kg |
| Shipment Dimensions | 5 × 4 × 3 cm |
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x DHT11 Temperature And Humidity Sensor Module.
3 x Female to Female connecting cable.
The latest price of DHT11 Temperature and Relative Humidity Sensor Module for Arduino in Bangladesh is BDT 120 You can buy the DHT11 Temperature and Relative Humidity Sensor Module for Arduino at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
