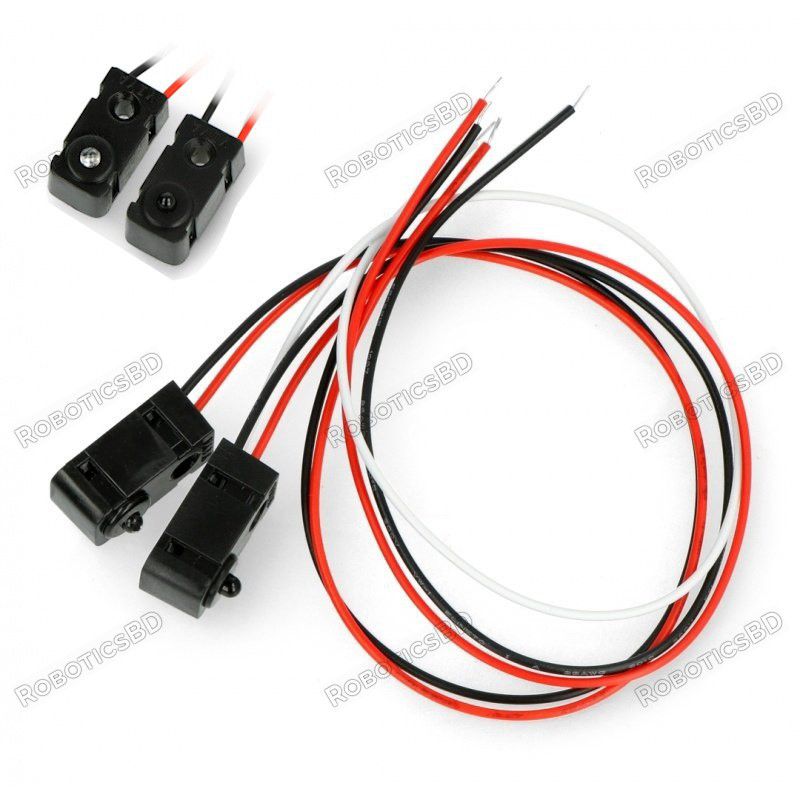

The sensor reacts to an interruption in the beam of infrared light that is transmitted between the transmitter and receiver. When the beam is interrupted by another object, the receiver signals this event by lighting up. The module is equipped with a 3 mm IR LED with an illumination angle of 10°. Beam interruption systems are used e.g. in measuring gates.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The sensorreacts to an interruptionof the beam of infrared lightthat is transmitted between thetransmitterandreceiver. When the beam is interrupted by another object, the receiver signals this event by lighting up. The module is equipped with a3 mm IR LEDwith an illumination angle of10°. Beam interruption systems are used e.g. in measuring gates.
Wiring these sensors for Arduino use is really easy.
First up you'll need to power the transmitter. Connect the black wire to ground and the red wire directly to 3.3V or 5V power. It will draw 9mA from 3.3V (lower power) and 20mA from 5V (better range)
Next up you'll want to connect up the receiver. Connect the black wire to ground, the red wire to 3.3V or 5V (whichever logic level you like) and then the white or yellow wire to your digital input.
Note that you do not have to share power supply ground or power between the two, the 'signal' is sent optically.
The receiver is open collector which means that you do need a pull up resistor. Most microcontrollers have the ability to turn on a built in pull up resistor. If you do not, connect a 10K resistor between the white wire of the receiver and the red wire.
On an Arduino, we'll connect the signal (yellow/white) pin to Digital #4
Run this demo code on your Arduino
/*
IR Breakbeam sensor demo!
*/
#define LEDPIN 13
// Pin 13: Arduino has an LED connected on pin 13
// Pin 11: Teensy 2.0 has the LED on pin 11
// Pin 6: Teensy++ 2.0 has the LED on pin 6
// Pin 13: Teensy 3.0 has the LED on pin 13
#define SENSORPIN 4
// variables will change:
int sensorState = 0, lastState=0; // variable for reading the pushbutton status
void setup() {
// initialize the LED pin as an output:
pinMode(LEDPIN, OUTPUT);
// initialize the sensor pin as an input:
pinMode(SENSORPIN, INPUT);
digitalWrite(SENSORPIN, HIGH); // turn on the pullup
Serial.begin(9600);
}
void loop(){
// read the state of the pushbutton value:
sensorState = digitalRead(SENSORPIN);
// check if the sensor beam is broken
// if it is, the sensorState is LOW:
if (sensorState == LOW) {
// turn LED on:
digitalWrite(LEDPIN, HIGH);
}
else {
// turn LED off:
digitalWrite(LEDPIN, LOW);
}
if (sensorState && !lastState) {
Serial.println("Unbroken");
}
if (!sensorState && lastState) {
Serial.println("Broken");
}
lastState = sensorState;
}
With the above wiring, when you put you hand between the sensor pair, the onboard LED will turn on and the serial console will print out messages:
The latest price of IR Beam Interruption Sensor - LED 3mm - 0-50 cm in Bangladesh is BDT 450 You can buy the IR Beam Interruption Sensor - LED 3mm - 0-50 cm at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
