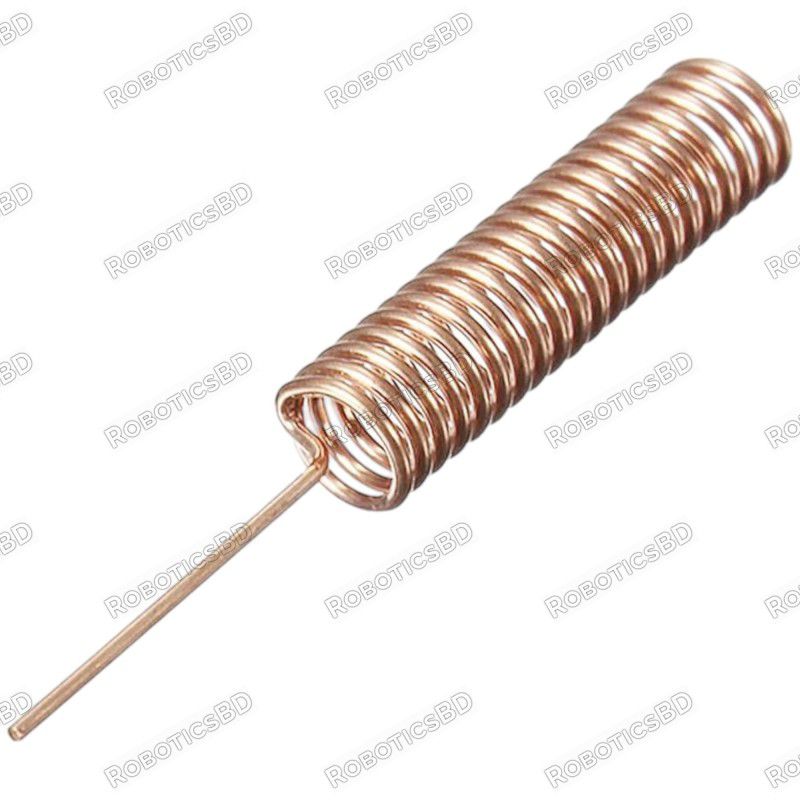

This 433MHz Spring Antenna is a versatile solution for wireless communication projects operating at the 433MHz frequency. This antenna functions by transmitting and receiving radio waves, facilitating wireless data transmission between devices. The compact spring design saves valuable space and simplifies integration into various electronic devices. The antenna boasts a gold-plated finish (alternative plating options are available) that ensures durability and resistance to corrosion, providing a long-lasting performance. This spring antenna features a solder-type connection for easy installation onto your PCB (Printed Circuit Board). Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Frequency Range | 433MHz |
| VSWR | ≤ 2 |
| Gain (dBi) | 2-3 (typical) |
| Max Input Power | 10W |
| Input Impedance | 50Ω |
| Antenna Size | 17mm ± 0.1mm x 21mm |
| Connector | Solder Housing |
| Copper Direction | Omni-directional |
| Material Options | Gold-plated (other options available) |
| Shipment Weight | 0.010 kg |
| Shipment Dimensions | 12 x 3 x 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x 433MHz spring antenna
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of 433MHz spring antenna in Bangladesh is BDT 100 You can buy the 433MHz spring antenna at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
