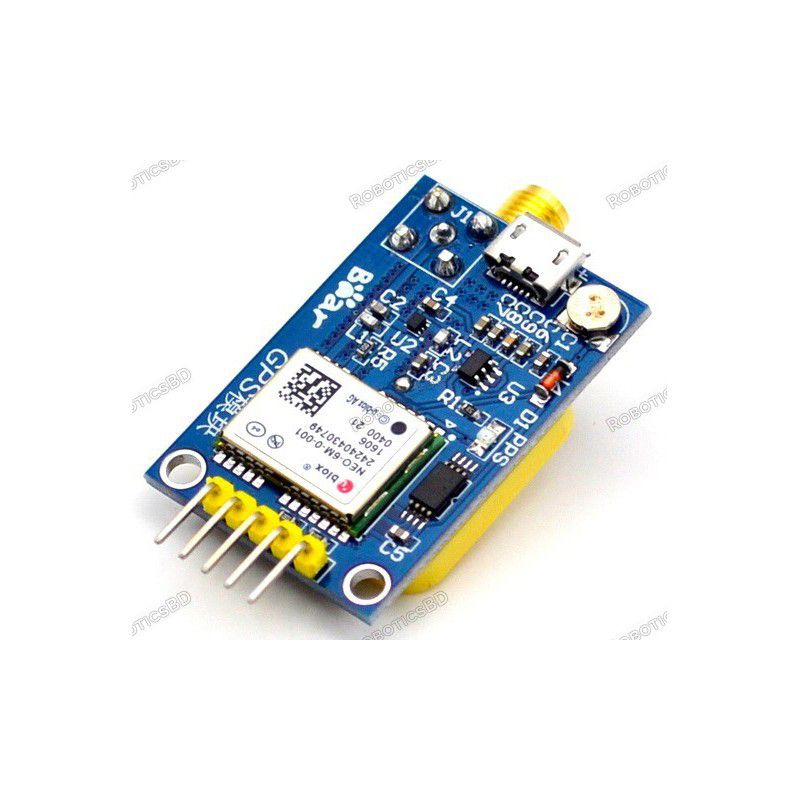

The NEO-6M GPS Module is a reliable and compact satellite positioning module designed for seamless integration with Arduino, STM32, and other microcontroller systems. Featuring a MicroUSB interface for easy debugging and a TTL interface for direct control, this module offers flexible connectivity options. The built-in ceramic antenna ensures excellent satellite signal reception, while the SMA interface allows for an external active antenna connection. Operating at 3.3V-5V, it is compatible with most development platforms. Customizable baud rate and output frequency through U-CENTER software make this module adaptable to a wide range of applications, including navigation, tracking, and time synchronization. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Model | NEO-6M |
| Operating Voltage | 3.3V-5.0V |
| Current Consumption | 40mA |
| Default Baud Rate | 9600 (adjustable via U-CENTER) |
| Output Frequency | 1Hz (adjustable via U-CENTER) |
| Built-in Antenna | Ceramic |
| External Antenna Interface | SMA |
| Pin Definitions | VCC, GND, TXD, RXD, PPS |
| Frequency | 1575.42 MHz |
| Dimensions | 39 x 25.5 mm |
| Shipment Weight | 0.018 kg |
| Shipment Dimensions | 6 x 3 x 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
GPS second pulse signal PPS one second, it is used to indicate the role of the whole second moment, and the time is usually marked with the rising edge of PPS seconds pulse. Because GPS can give UTC time, but received the user is there will be a delay, then in order to get the precise timing, the introduction of PPS signal rising edge to indicate the UTC whole seconds in time, the accuracy can be to a nanosecond, and no accumulated error.
1, VCC: power supply (3.3V-5V)
2, GND: ground wire
3, TXD: module serial port to send pin (TTL level, can not be directly connected to the RS232 level, can be connected to the microcontroller RXD)
4, RXD: module serial port receive pin (TTL level, can not be directly connected to the RS232 level, can be connected to the microcontroller TXD)
5, PPS: clock pulse output pin.
1 x GPS Module NEO-6M Satellite Positioning Module for Arduino with MicroUSB
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of GPS Module NEO-6M Satellite Positioning Module for Arduino with MicroUSB in Bangladesh is BDT 990 You can buy the GPS Module NEO-6M Satellite Positioning Module for Arduino with MicroUSB at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
