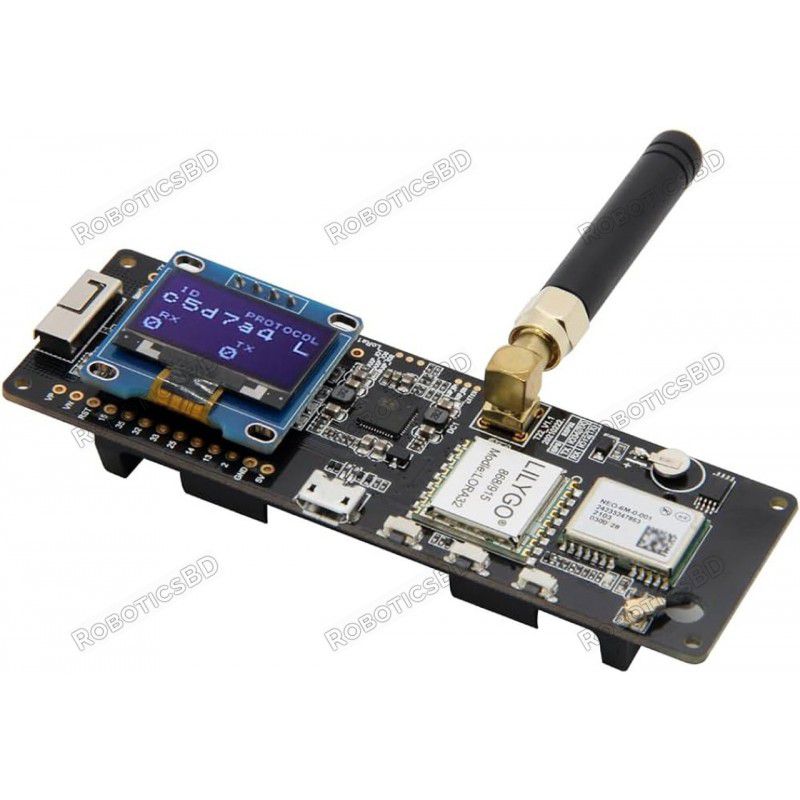

TTGO Meshtastic T-Beam V1.1 ESP32 915Mhz/433Mhz WiFi Bluetooth ESP32 GPS NEO-6M SMA 18650 Battery Holder with OLED (915Mhz OLED) Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Working voltage | 1.8~3.7V |
| Acceptable current | 10~14mA |
|
Transmit current
|
120mA@+20dBm |
| 90mA@+17dBm | |
| 29mA@+13dBm | |
| Operating frequency | 433/915/923MHz (Random) |
| Transmit power | 20dBm |
|
Receive sensitivity
|
-139dBm@LoRa &62.5Khz&SF=12&146bps |
| -136dBm@LoRa &125Khz&SF=12&293bps | |
| -118dBm@LoRa &125Khz&SF=6&9380bps | |
| -123dBm@FSK&5Khz&1.2Kbps | |
| Frequency error | 15KHz |
| FIFO space | 64Byte |
|
Data rate
|
1.2K~300Kbps@FSK |
| 0.018K~37.5Kbps@LoRa | |
| Modulation Mode | FSK, GFSK, MSK, GMSK, LoRa TM, OOK |
| Interface form | SPI |
|
Sleep current
|
0.2uA@SLEEP |
| 1.5uA@IDLE | |
| Operating temperature | -40℃ ~ +85℃ |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 X TTGO T-Beam
1 X 433/915/923MHz Antenna
1 X 0.96 inch 128X64 OLED
2 X Pin.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of TTGO Meshtastic T-Beam V1.1 ESP32 WiFi Bluetooth GPS with OLED in Bangladesh is BDT 7,290 You can buy the TTGO Meshtastic T-Beam V1.1 ESP32 WiFi Bluetooth GPS with OLED at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
