Take your IoT and embedded development projects to the next level with the ESP32-C3 Development Board, powered by the ESP32-C3-Mini module. This board combines the versatility of dual Type-C connectivity, WiFi, and Bluetooth 5.0 with Mesh and BLE support, all within a compact, black PCB form factor. Built around a powerful 32-bit RISC-V processor, the ESP32-C3 board is ideal for next-generation wireless applications requiring secure communication, high performance, and low power consumption.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
Product Description:

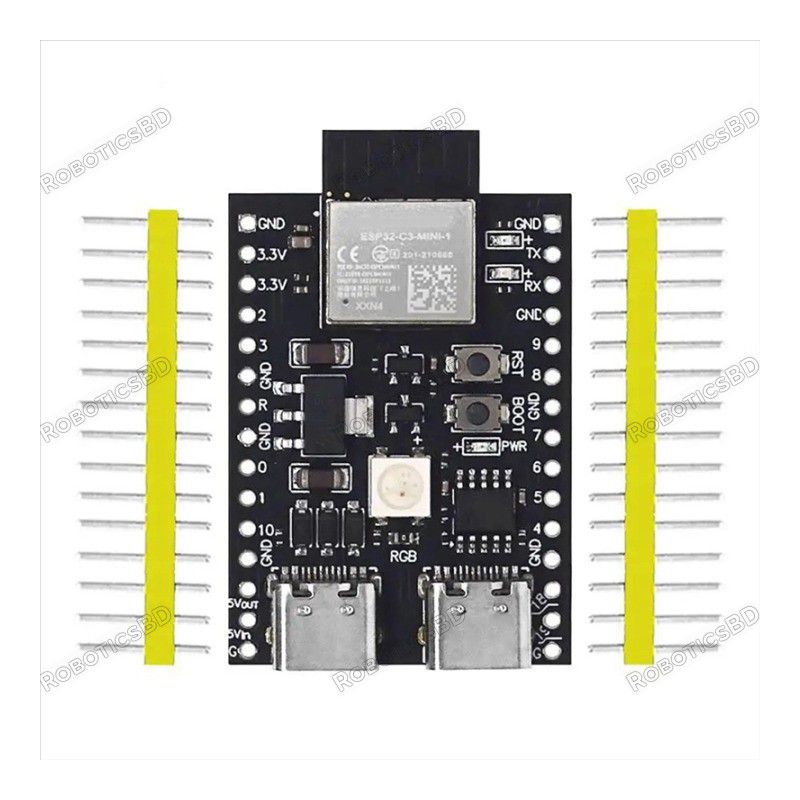

Take your IoT and embedded development projects to the next level with the ESP32-C3 Development Board, powered by the ESP32-C3-Mini module. This board combines the versatility of dual Type-C connectivity, WiFi, and Bluetooth 5.0 with Mesh and BLE support, all within a compact, black PCB form factor. Built around a powerful 32-bit RISC-V processor, the ESP32-C3 board is ideal for next-generation wireless applications requiring secure communication, high performance, and low power consumption.
Key Features:
Based on the ESP32-C3-Mini module
Dual USB Type-C connectors for convenient power and programming
Integrated 2.4GHz WiFi and Bluetooth 5.0 (BLE + Mesh) with shared antenna
High power Bluetooth transmission (up to 18 dBm)
Supports advanced BLE features like Multiple Advertisement Sets, Channel Selection Algorithm #2, and Advertising Extensions
RISC-V 32-bit single-core processor @ 160 MHz
Rich peripheral support with SPI, Dual SPI, Quad SPI, and OPI interfaces
CoreMark Score: 407.22 at 160 MHz, offering excellent performance per MHz
8 KB low-power SRAM for optimized energy usage in sleep modes
Onboard embedded flash, cache-supported flash acceleration
Support for in-circuit flash programming (ICSP)
Compact and sturdy black PCB design
Technical Specifications:
Processor: 32-bit RISC-V single-core @ 160 MHz
Flash: Embedded, supports ICSP
Connectivity:
WiFi 802.11 b/g/n
Bluetooth 5.0 (BLE, Mesh)
BLE data rates: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
I/O Interfaces: Multiple SPI variants, USB Type-C
Operating Voltage: 3.3V (USB powered)
Color: Black
Material: PCB
Applications:
IoT sensors and devices
Home automation
Bluetooth Mesh networks
Secure wireless controllers
BLE beacons and asset tracking
Low-power wireless communication projects
RISC-V development and learning
Package Includes:
1 x ESP32-C3 Development Board (Dual Type-C, Black PCB)
Why Choose This Development Board?
With its advanced wireless capabilities, RISC-V architecture, compact form factor, and dual Type-C support, this board is perfect for hobbyists, developers, and engineers looking to explore secure IoT, BLE Mesh, or high-performance embedded systems. Its rich set of features ensures compatibility with a wide range of applications from prototyping to deployment.
Get started with cutting-edge RISC-V + Bluetooth Mesh + WiFi in one compact board – upgrade your projects with the ESP32-C3 DevKitM-1 today!
The latest price of ESP32-C3 Development Board Dual Type-C WiFi Bluetooth BLE 5.0 DevKitM-1 Core Board in Bangladesh is BDT 490 You can buy the ESP32-C3 Development Board Dual Type-C WiFi Bluetooth BLE 5.0 DevKitM-1 Core Board at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
