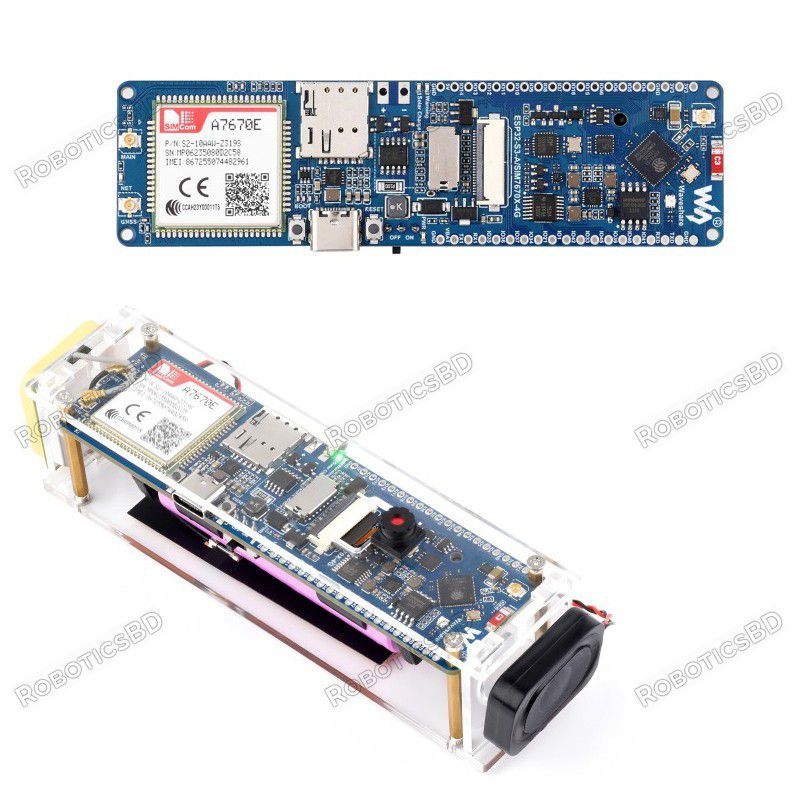

The ESP32-S3 A7670E 4G Development Board is a versatile and powerful platform designed for IoT, smart home, and portable 4G WiFi applications. Combining the robust ESP32-S3R2 chip and A7670E 4G module, this board offers seamless LTE Cat-1/2G connectivity, GNSS positioning, and integrated camera support. With multiple power options, including solar charging, and advanced features like telephone call/SMS support and real-time battery capacity measurement, the board is ideal for outdoor monitoring, automation, and IoT projects.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
Based on ESP32-S3, Integrates A7670E 4G module, Camera and TF Card Slot, etc.
Multiple low-power working modes, Suitable for Applications such as outdoor monitoring, 4G Portable WiFi, smart home, etc.
The ESP32-S3-A7670E-4G is a multi-functional and high-performance microcontroller development board designed by Waveshare, build-in A7670E 4G communication module, onboard OV series camera interface, TF card slot, RGB colorful LED, 18650 battery holder (18650 battery is NOT included), battery voltage measurement IC, solar panel charging interface, and other peripherals. Adopts the ESP32-S3R2 chip, which integrates low-power WiFi and BLE 5.0, onboard external 16MB Flash and 2MB PSRAM, built-in hardware encryption accelerator, random number generator, HMAC, and digital signature module to meet the security requirements of the IoT. Equipped with A7670E Cat-1 4G communication module to achieve mobile network connection and meet the low-power requirements of IoT, mobile devices, outdoor monitoring, smart home, and other applications.
| Communication Parameters | |
|---|---|
| Frequency Band | LTE-FDD: B1, B3, B5, B7, B8, B20 |
| Data Transmission | ≤5Mbps(UL) ≤10Mbps(DL) |
| GNSS | GPS, BeiDou, GLONASS |
| Operating Parameters | |
| Power supply method | USB port, 18650 lithium battery holder (18650 battery is NOT included), pin header |
| Power input | 5V (USB port / 5V pin header) 3.7~4.2V (18650 lithium battery holder / VBAT pin header) |
| Logic Level | 3.3V |
Multi Band and Multi regions Support, mainly applicable in Europe, Southeast Asia, West Asia, Africa, China, South Korea
* Please confirm the supported bands according to your local service provider
ESP32-S3 is connected to the A7670E via USB to enable 4G networking while simultaneously activating WiFi AP hotspot, allowing smartphones or other WiFi terminals to connect and access network
Onboard USB switching IC and DIP switch, for switching to use the USB interface of A7670E, suitable for connecting with PC for dial-up internet or debugging of A7670E module
Making telephone call or sending SMS by AT commands, with onboard microphone and Speaker
Onboard 24PIN camera interface, comes with OV2640 camera
Compatible with the ESP32-Camera framework, Suitable for facial recognition
Onboard lithium battery charging, solar charging, power management, battery capacity measurement, and related protection circuits, supports USB and solar charging with real-time battery capacity measurement
Supports GPS, BeiDou, GLONASS positioning
provides multiple networking demos with Waveshare.cloud, using the lightweight MQTT protocol to achieve data visualization service
provides tutorial and demo for quick start of smart IoT solutions, with large-screen Data Visualization display to meet various application scenarios
Smart garden solutions:
The ESP32-S3-A7670E-4G can report various sensor data of the garden through MQTT to remotely control device ON/OFF, irrigation, fertilization, and so on.
Server Performance Cloud Monitoring:
The ESP32-S3-A7670E-4G can report various performance parameters of the Raspberry Pi server through MQTT, and monitor the operation status in real-time through the cloud platform.
IoT GPS Mobile Positioning:
The ESP32-S3-A7670E-4G can regularly report the data of the GPS positioning module through MQTT to realize mobile detection, animal or device positioning and tracking, etc.
The latest price of Waveshare ESP32-S3 A7670E 4G High Performance Development Board in Bangladesh is BDT 9,500 You can buy the Waveshare ESP32-S3 A7670E 4G High Performance Development Board at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
