Product Description:

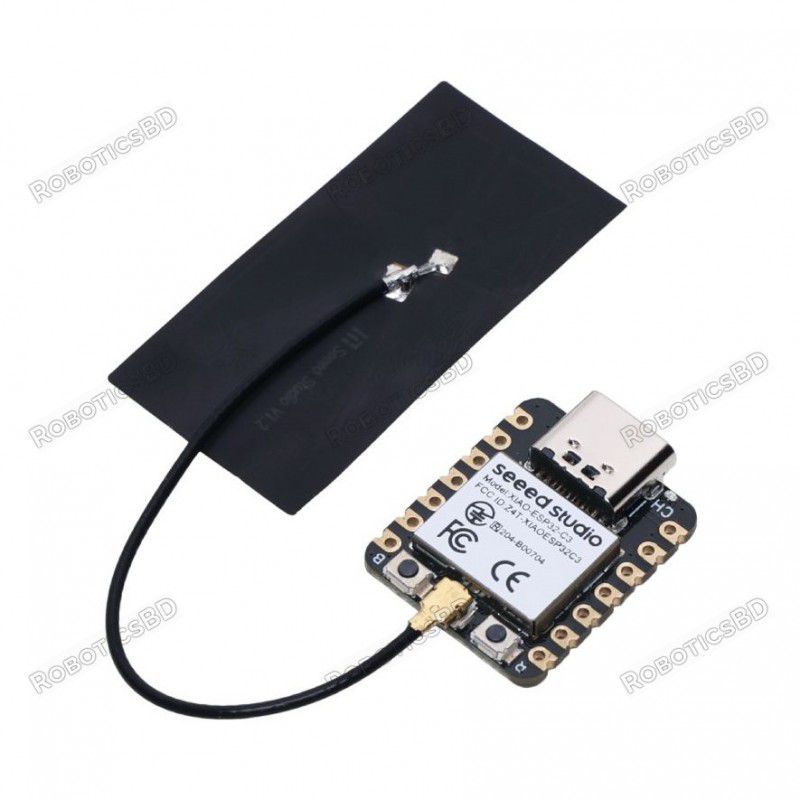

The Seeed Studio XIAO ESP32-C3 is a powerful and ultra-compact microcontroller board built around the 32-bit RISC-V-based ESP32-C3 SoC. It offers robust wireless connectivity via 2.4GHz Wi-Fi and Bluetooth 5.0, making it an excellent solution for IoT, smart home, and wearable device applications. With support for Arduino and CircuitPython, deep sleep modes for ultra-low power consumption, and a fully SMD-compatible design, this board is ideal for both prototyping and production-ready deployment.
Key Features:
Powered by a 160 MHz 32-bit RISC-V ESP32-C3 processor
Supports Wi-Fi 2.4GHz and Bluetooth 5.0/BLE Mesh
Ultra-low power consumption: as low as 44 μA in deep sleep
Integrated 4MB Flash and 400KB SRAM
Lithium battery charge management onboard
Rich I/O: 11x GPIO (PWM), 4x ADC, 1x UART, 1x I2C, 1x SPI
Compact 21 x 17.8 mm form factor with single-sided mount
Breadboard-friendly and production-ready SMD layout
Supports Arduino IDE and CircuitPython
Technical Specifications:
Processor: ESP32-C3, RISC-V single-core 32-bit @ 160 MHz
Memory: 400KB SRAM, 4MB Flash
Wireless: Wi-Fi 802.11 b/g/n, Bluetooth 5.0 and BLE Mesh
Interfaces: UART, I2C, SPI, ADC, GPIO
Buttons: Boot & Reset
Power:
VIN: 5V
Operating Voltage: 3.3V@200mA
Charging current: 350mA / 100mA
Power Consumption:
Deep Sleep: >44 μA
Wi-Fi Active: <75 mA
BLE Light-sleep: <10 mA
Temperature Range: -40°C to 85°C
Dimensions: 21mm x 17.8mm
Applications:
Wearable electronics
IoT data logging and sensing nodes
Smart home devices
Robotics and automation
Battery-powered embedded systems
Package Includes:
1 x Seeed Studio XIAO ESP32-C3 Development Board
Why Choose Seeed Studio XIAO ESP32-C3?
This board brings together high-performance wireless connectivity, compact size, and energy efficiency in one reliable module. With support for popular programming environments and seamless PCBA integration, the XIAO ESP32-C3 simplifies both prototyping and product scaling.
Upgrade your project with the Seeed Studio XIAO ESP32-C3 today and experience compact power like never before!
Application 1: Smart Private Garage
Materials: XIAO ESP32-C3 *2, Grove - Button *1, Grove - Relay*1
Description:
This is a peer-to-peer WiFi communication application, since two XIAOs detect each other via Wifi, the garage door will open or keep opening, and vice versa.
Improvement:
It is nice to add an ultrasonic distance sensor to measure the car-to-door distance and an OLED screen to check the status of the garage. If you want an onboard voice sensor to command the door to open with vocal instruction, try our XIAO BLE Sense.
Application 2: Remote Forest Tracker
Materials: XIAO ESP32-C3 *1, Grove - Wio - E5 *1, Grove - GPS *1
Description:
Thanks to the tiny size of the XIAO series, it is suitable to make the wearable devices, such as a small pet trackers. This wearable device can be used as a simple GPS-Tracker which will lock its current location and publish other data via LoRa.
Improvement:
A compass that shows direction and distance is a great added value to the tracker that you could consider. Meanwhile, publishing altitude, speed, or other parameters could bring more scenarios to this tracker. Besides, the chip ESP32-C3 allows this tracker to communicate over WiFi or BLE, and therefore, we can upload the tracker’s data or realize the Long Range-to-MQTT bridge as well.
Probably you are worried about the wireless capability of the above application of XIAO ESP32-C3, and We have a 2.4GHz Rod Antenna for XIAO ESP32-C3 which increases the wireless capability of the XIAO ESP32-C3, The antenna is certified TELEC and XIAO ESP32C3 is compatible with Antenna, Check 2.4GHz 2.81dBi Antenna for XIAO ESP32C3 - Seeed Studio to see more!
The latest price of Seeed Studio XIAO ESP32-C3 – Compact & Versatile RISC-V MCU Board for IoT & Wearables in Bangladesh is BDT 1,390 You can buy the Seeed Studio XIAO ESP32-C3 – Compact & Versatile RISC-V MCU Board for IoT & Wearables at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
