Product Description:

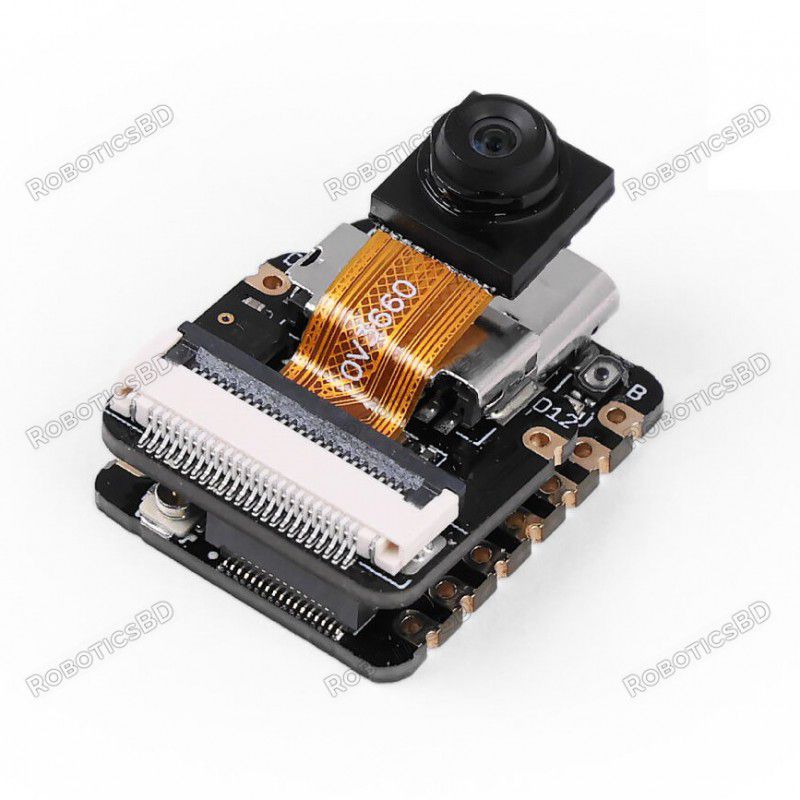

The Seeed Studio XIAO ESP32-S3 Sense is an advanced microcontroller board combining powerful processing, rich wireless communication, and onboard sensors in a thumb-sized footprint. Built around the dual-core ESP32-S3R8 chip, it features built-in Wi-Fi and Bluetooth 5.0, along with an integrated OV3660 camera, digital microphone, 8MB PSRAM, and 8MB Flash. With support for an external SD card (up to 32GB FAT), it's tailor-made for embedded AI applications, such as image recognition, voice interaction, and smart monitoring.
Whether you're exploring TinyML or creating intelligent IoT systems, the XIAO ESP32-S3 Sense offers an efficient and compact solution—perfect for wearable tech, smart homes, and rapid prototyping.
Key Features:
AI-Ready Hardware: Built-in OV3660 camera sensor and digital MEMS microphone
Wireless Connectivity: 2.4GHz Wi-Fi and Bluetooth 5.0 with BLE Mesh support
Powerful MCU: Dual-core Xtensa LX7 running up to 240MHz
Rich Memory: 8MB PSRAM + 8MB Flash onboard
Storage Expansion: MicroSD slot supports FAT-formatted cards up to 32GB
Compact Design: 21 x 17.8 x 15mm form factor with included expansion board
Low Power Operation: Deep sleep as low as 3μA, optimized for battery use
Battery Management: Integrated lithium battery charge circuit (100mA)
Technical Specifications:
| Category | Details |
|---|---|
| Processor | ESP32-S3R8 (Xtensa LX7 Dual-Core, up to 240MHz) |
| Memory | 8MB PSRAM, 8MB Flash |
| Storage | MicroSD card slot (32GB FAT supported) |
| Wireless | Wi-Fi 2.4GHz, Bluetooth 5.0, BLE Mesh |
| Sensors | OV3660 Camera (upgraded), Digital Microphone |
| I/O Interfaces | UART, I2C, SPI, IIS, 11x GPIOs (PWM), 9x ADC |
| Buttons & LEDs | Reset button, Boot button, User LED, Charge LED |
| Expansion | B2B connector with 2 additional GPIOs |
| Power Input | 5V (USB-C), 4.2V (Battery) |
| Power Consumption | Deep Sleep: ~3μA, Wi-Fi Active: ~110mA, BLE Active: ~102mA |
| Charging Current | 100mA |
| Operating Temp. | -20°C to +70°C |
| Dimensions | 21 x 17.8 x 15mm (with camera board) |
Applications:
Embedded machine learning (TinyML)
Real-time image and voice recognition
Smart home security and automation
Wearable health monitors
Environmental sensing and logging
Educational prototyping for AI/IoT
Package Includes:
1 x Seeed Studio XIAO ESP32-S3 Sense Board with Camera Module
Note: SD card and battery not included.
Why Choose Seeed Studio XIAO ESP32-S3 Sense?
This board offers all-in-one functionality for next-generation embedded AI projects. Its small size, powerful processor, built-in camera and mic, and low power features make it a go-to choice for developers building smart, connected, and AI-enabled devices.
Note
Note Change Record
2025/6/30, Upgrade camera sensor from OV2640 to OV3660.
Start building intelligent solutions with the Seeed Studio XIAO ESP32-S3 Sense—your ultimate tool for embedded vision and voice AI projects
The latest price of Seeed Studio XIAO ESP32-S3 Sense Compact AI-Ready Development Board with Camera & Microphone in Bangladesh is BDT 3,450 You can buy the Seeed Studio XIAO ESP32-S3 Sense Compact AI-Ready Development Board with Camera & Microphone at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
