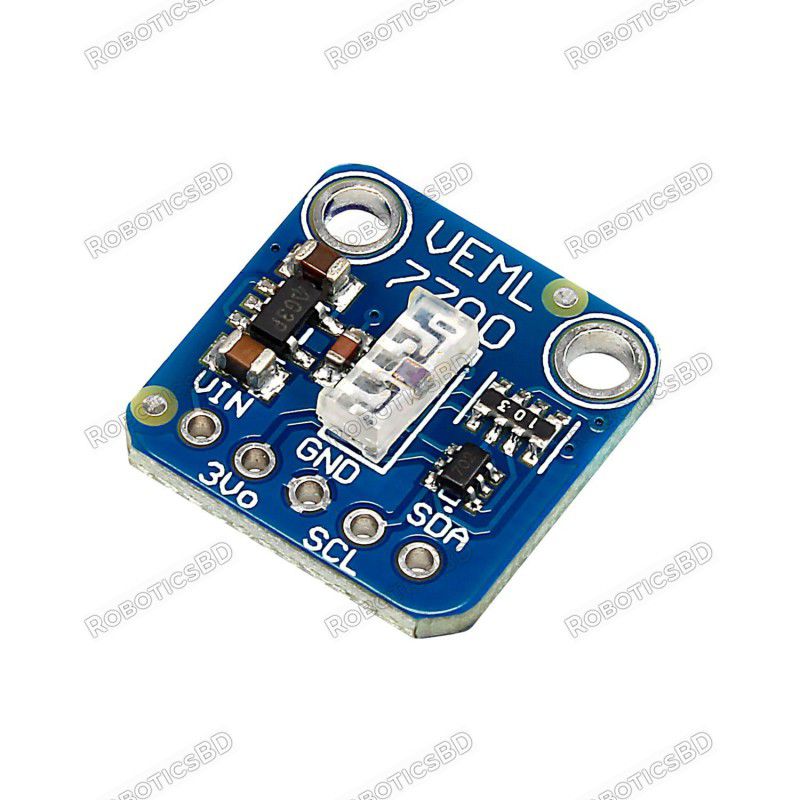

The VEML7700 Ambient Light Sensor Module is a high-precision light measuring solution designed for applications requiring accurate ambient light detection. Built around the advanced VEML7700 sensor, this module can detect illumination levels ranging from 0 to 120,000 lux with 16-bit resolution, making it ideal for smart lighting systems, automatic screen brightness adjustment, environmental monitoring, and more.
The module communicates via the standard I2C interface, ensuring simple integration with popular microcontrollers such as Arduino, Raspberry Pi, ESP32, and others. It operates seamlessly on both 3.3V and 5V power supplies, featuring an onboard voltage regulator to ensure stable operation. Thanks to its compact size, excellent performance, and long service life, this ambient light sensor is a dependable addition to any light-sensitive project.
Wide Measuring Range: Detects ambient light from 0 to 120,000 lux
High Accuracy: Lux resolution of 0.0036 lx/count
I2C Communication: Easy to connect with 3.3V and 5V microcontrollers
Fixed I2C Address: 0x10 (non-changeable)
Onboard Voltage Regulator: Supports stable 3.3V output up to 100mA
Stable and Durable: Built with a robust structure for long-term reliable performance
Compatible with Development Boards: Works with Raspberry Pi, Arduino, ESP32, STM32, and more (with proper libraries)
| Feature | Specification |
|---|---|
| Sensor Type | VEML7700 Ambient Light Sensor |
| Measuring Range | 0 to 120,000 lux |
| Accuracy | 0.0036 lx/count |
| Interface | I2C |
| I2C Address | 0x10 (fixed) |
| Operating Voltage | 3.3V or 5V DC |
| Regulator Output | 3.3V DC / 100mA maximum |
| Output Format | 16-bit digital data |
| Application Environment | Indoor or outdoor light detection |
Solder the provided 5-pin connector to the module.
Connect the module’s I2C pins (SCL, SDA, VCC, GND) to your microcontroller.
Ensure your microcontroller has the appropriate VEML7700 driver/library installed.
Begin reading ambient light levels through simple I2C communication commands.
Typical Connections:
VCC: Connect to 3.3V or 5V supply
GND: Connect to ground
SCL: Connect to I2C clock pin
SDA: Connect to I2C data pin
INT: (optional, interrupt output if used)
Smart lighting control systems
Mobile device automatic brightness adjustment
Environmental light monitoring
Solar tracking systems
Agricultural and horticultural lighting control
IoT-based light monitoring projects
1 x VEML7700 Ambient Light Sensor Module
1 x 5-Pin Header Connector
Superior sensitivity and accuracy across a wide range of lighting conditions
Simple integration with any I2C-capable microcontroller
Stable operation with both 3.3V and 5V systems
Ideal for long-term projects requiring reliable ambient light measurement
Monitor light with precision and stability using the VEML7700 Ambient Light Sensor Module.
Order now and add intelligent light-sensing capabilities to your next project!
The latest price of VEML7700 Ambient Light Sensor Module in Bangladesh is BDT 440 You can buy the VEML7700 Ambient Light Sensor Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
