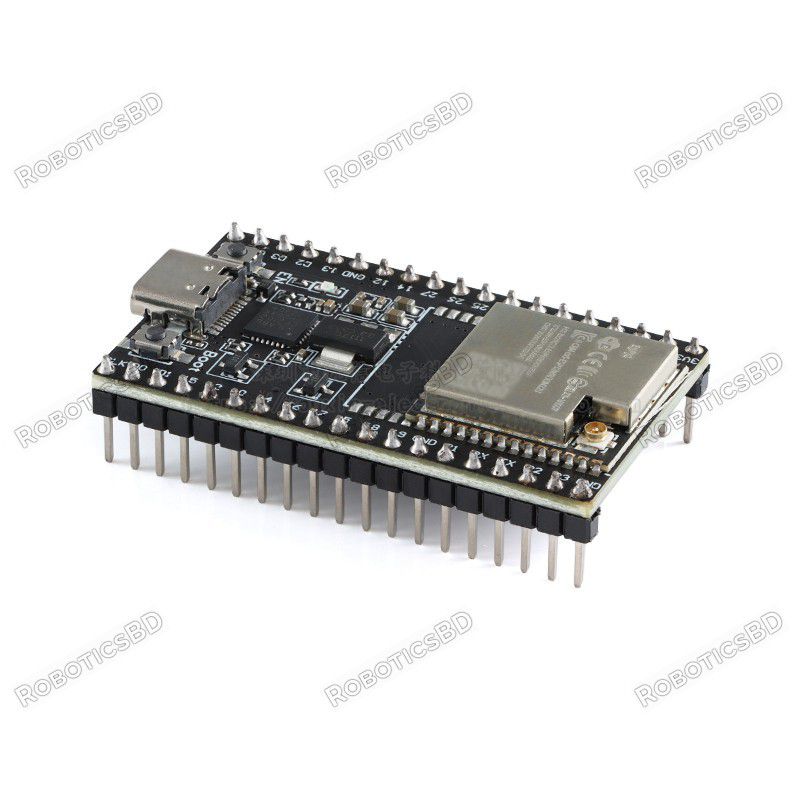

The ESP32-WROOM-32U Development Board with USB Type-C is a compact and feature-rich board powered by the ESP32-WROOM-32U module from Espressif. This version includes a CP2102 USB-to-Serial converter and supports an external antenna via the onboard U.FL connector, allowing for improved wireless performance in demanding environments. Ideal for IoT, wireless communication, and embedded applications, it offers dual-mode WiFi and Bluetooth connectivity with reliable performance.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
Product Description:
The ESP32-WROOM-32U Development Board with USB Type-C is a compact and feature-rich board powered by the ESP32-WROOM-32U module from Espressif. This version includes a CP2102 USB-to-Serial converter and supports an external antenna via the onboard U.FL connector, allowing for improved wireless performance in demanding environments. Ideal for IoT, wireless communication, and embedded applications, it offers dual-mode WiFi and Bluetooth connectivity with reliable performance.
Key Features:
Based on ESP32-WROOM-32U module
USB Type-C connector for robust and reversible connectivity
CP2102 USB-to-Serial interface for fast and stable communication
External antenna support via U.FL connector
4MB onboard SPI Flash
Dual-core 32-bit LX6 microprocessor, up to 240 MHz
520 KB SRAM + RTC memory support
WiFi 802.11 b/g/n and Bluetooth v4.2 (BLE + BR/EDR)
Fully breadboard-compatible
Integrated boot and reset buttons
Compatible with Arduino IDE, ESP-IDF, MicroPython
Specifications:
Input Voltage: 5V via USB Type-C
Wireless: WiFi 2.4GHz & Bluetooth
Memory: 4MB Flash, 448 KB ROM, 520 KB SRAM
Antenna: External (via U.FL)
Serial Chip: CP2102
RTC slow/fast memory for deep sleep operations
EFUSE: 1 Kbit (256-bit system, 768-bit user-configurable)
Applications:
IoT Devices
Smart Home Projects
Wireless Sensor Networks
Industrial Control Systems
Robotics & Automation
Package Includes:
1 x ESP32 WROOM-32U CP2102 Development Board (USB Type-C)
The latest price of ESP32 WROOM-32U CP2102 Development Board USB Type-C in Bangladesh is BDT 720 You can buy the ESP32 WROOM-32U CP2102 Development Board USB Type-C at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
