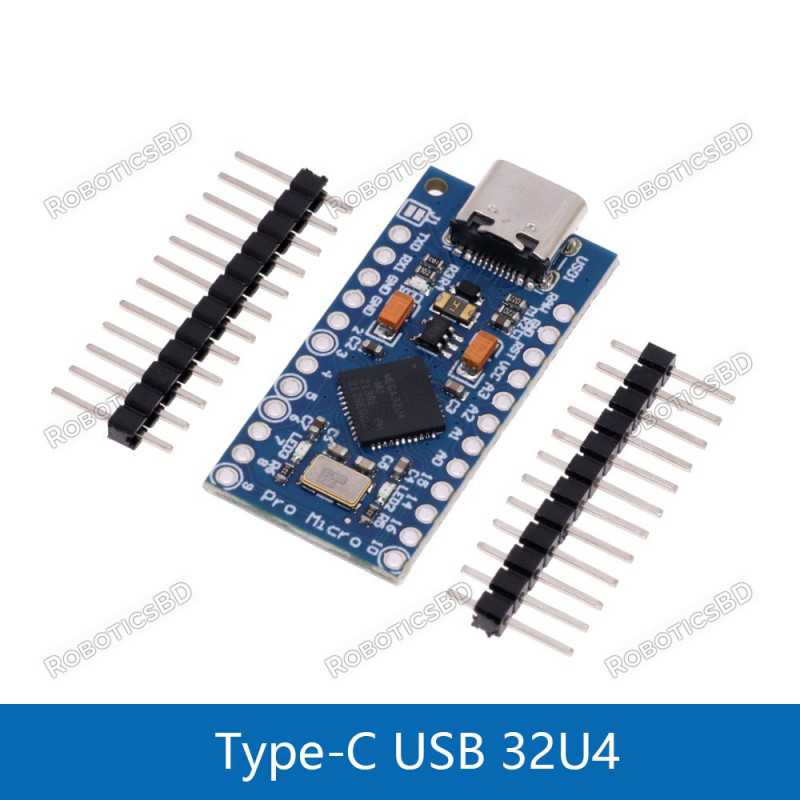

This Pro Micro 5V 16M Mini Leonardo Microcontroller Development Board For Arduino development board has 4 channel 10 bit ADC, 5 PWM pins, 12 DIO, and a hardware serial connection Rx and Tx you are familiar with Running on 16MHz and 5V, this board will remind you a lot of other Arduino compatible boards that you like.
There is a voltage regulator on board, so it can accept up to 12V DC. RoboticsBD
The Micro is a microcontroller board based on the ATmega32U4. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a Type C USB connection, an ICSP header, and a reset button. RoboticsBD
It contains everything needed to support the microcontroller; simply connect it to a computer with a Type C USB cable to get started. It has a form factor that enables it to be easily placed on a breadboard. Featured By RoboticsBD.
The Micro board is similar to the Arduino Leonardo in that the ATmega32U4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.
If you supply an unstable power supply board, be sure to connect to the “RAW”, not on the VCC pin. It has also added a PTC fuse and diode protection to the power circuit and to correct the RX and LED TX circuits. RoboticsBD
Note: Product images/ Components brand may vary from actual product as our stock rotates.
Product Images are shown for illustrative purposes only and may differ from the actual product.
| General Specification | |
| Microcontroller | ATmega32U4 |
| Input Voltage(Recommended) | 7-12V |
| Operating Voltage (VDC) | 5 |
| Input Voltage (limits) | 6-20V |
| Analog I/O Pins | 12 |
| Digital I/O Pins | 20 |
| DC Current per I/O Pin (mA) | 20 |
| DC Current for 3.3V Pin (mA) | 50 |
| PWM Pins | 7 |
| Flash Memory | 32 KB |
| EEPROM | 2.5KB |
| SRAM | 1 |
| Clock Speed | 16 MHz |
| Dimensions (mm) LxWxH | 48x18x8 |
| Weight (gm) | 13 |
| Shipment Weight | 0.06 kg |
| Shipment Dimensions | 8 × 6 × 4 cm |
Please allow 5% measuring deviation due to manual measurement.
1 x Arduino Pro Micro 5V/16MHz
The latest price of Arduino Pro Micro 5V/16MHz Type-C in Bangladesh is BDT 755 You can buy the Arduino Pro Micro 5V/16MHz Type-C at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
