Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement

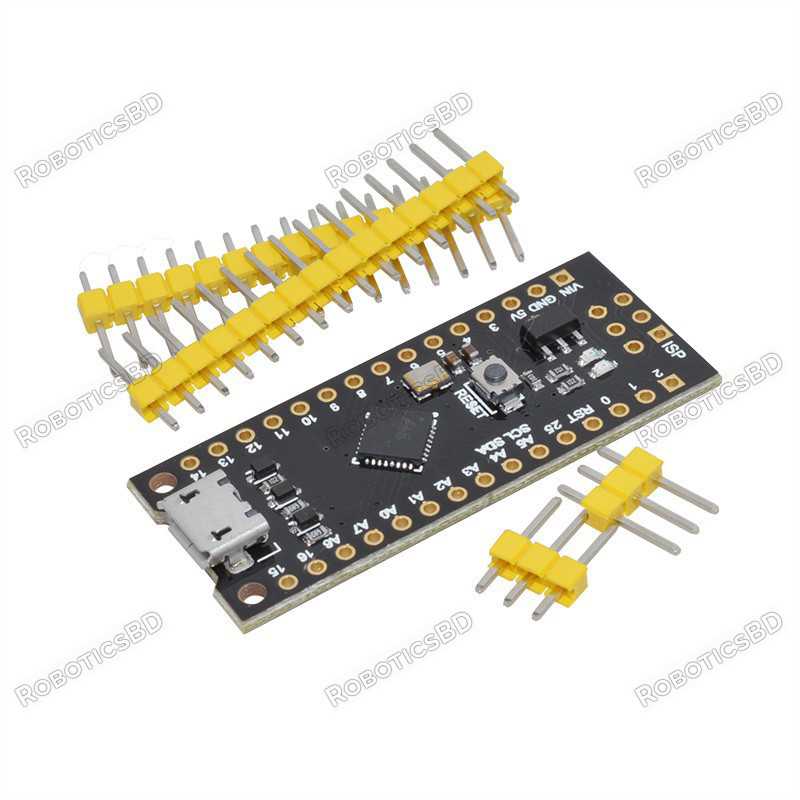

The MH-ET LIVE Tiny88(16.0Mhz) based microcontroller development board similar to the Arduino line, only cheaper, smaller, and a bit less powerful. With the ability to use the familiar Arduino IDE the MH-ET LIVE Tiny88(16.0Mhz) is a great board to jump into electronics, or perfect for when an other board is too big or too much. The MH-ET LIVE Tiny88(16.0Mhz) is shipped fully assembled except for the headers (included) and easy to solder them by yourself. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
Note: Pin header are unsoldered**
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Power via USB or External Source | 5v or 7-35v (12v or less recommended, automatic selection) |
| Regulator | On-board 500ma 5V |
| USB | 3. Built-in |
| I/O Pins | 26 (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB) |
| Flash Memory | 8k (about 6k after bootloader) |
| I2C and SPI | Available |
| PWM | 26 (26 pins with Software PWM, only two(D9,D10) with hardware PWM ) |
| ADC | on 8 pins |
| Power LED and Test/Status LED | Available |
| Size(mm): | 44.5x18.3x3 |
| Shipment Weight | 0.008 kg |
| Shipment Dimensions | 10 × 6 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Note: Product images/ Components brand may vary from actual product as our stock rotates.
You can use the link below to program the ATTINY88 development board with the Arduino IDE program. You can introduce the card to the program by pasting the link in the "Additional Circuit Boards Manager URLs" section in the window that opens when we click File > Preferences in the IDE and press the OK button.
1 x NANO V3.0 Upgraded MH-Tiny ATTINY88 Micro Development Board 16MHz (Unsoldered)
The latest price of NANO V3.0 Upgraded MH-Tiny ATTINY88 Micro Development Board 16MHz in Bangladesh is BDT 350 You can buy the NANO V3.0 Upgraded MH-Tiny ATTINY88 Micro Development Board 16MHz at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
