Note: The component, colour & shape of the motor may vary depending on our stock rotation.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
|
This servo motor requires a higher current and cannot be powered directly from the Arduino Uno or Mega. You will need to provide an additional 5V, 3A power supply in conjunction with the Arduino. |
RED – Positive
Brown – Negative
Orange – Signal
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Model | MG90S |
| Weight(gm) | 13 |
| Operating Voltage (VDC) | 4.8 ~ 6.6 |
| Operating Speed @4.8V | 0.10sec/60° |
| Operating Speed @6.6V | 0.08sec/60° |
| Stall Torque @ 4.8V (Kg-Cm) | 1.8 |
| Stall Torque @6.6V (Kg-Cm) | 2.2 |
| Operating Temperature (°C) | 0 to 55 |
| Dead Band Width ( μs) | 1 |
| Rotational Degree | 180º |
| Servo Plug | JR |
| Cable Length (cm) | 25 |
| Length (mm) | 12.4 |
| Width (mm) | 22.8 |
| Height (mm) | 32.5 |
| Shipment Weight | 0.017 kg |
| Shipment Dimensions | 8 × 6 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

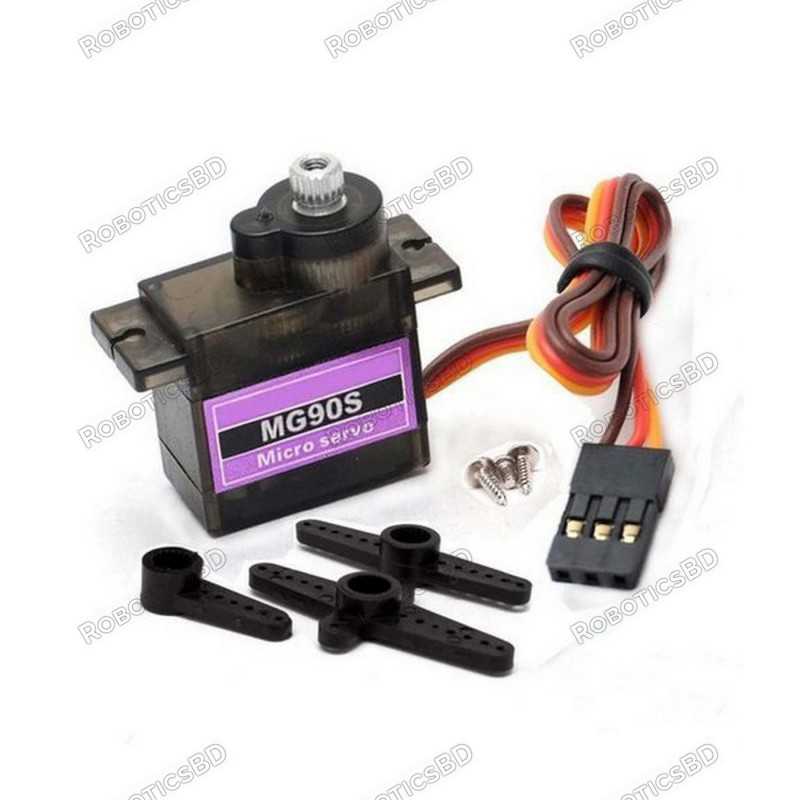

1 x Towerpro MG90S Mini Digital 180 Degree Servo
Set of Horns
1 x Set of Screws.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of Servo Motor Micro MG90S 180 Degree Rotation in Bangladesh is BDT 209 You can buy the Servo Motor Micro MG90S 180 Degree Rotation at best price from our RoboticsBD or visit RoboticsBD Office.
|
