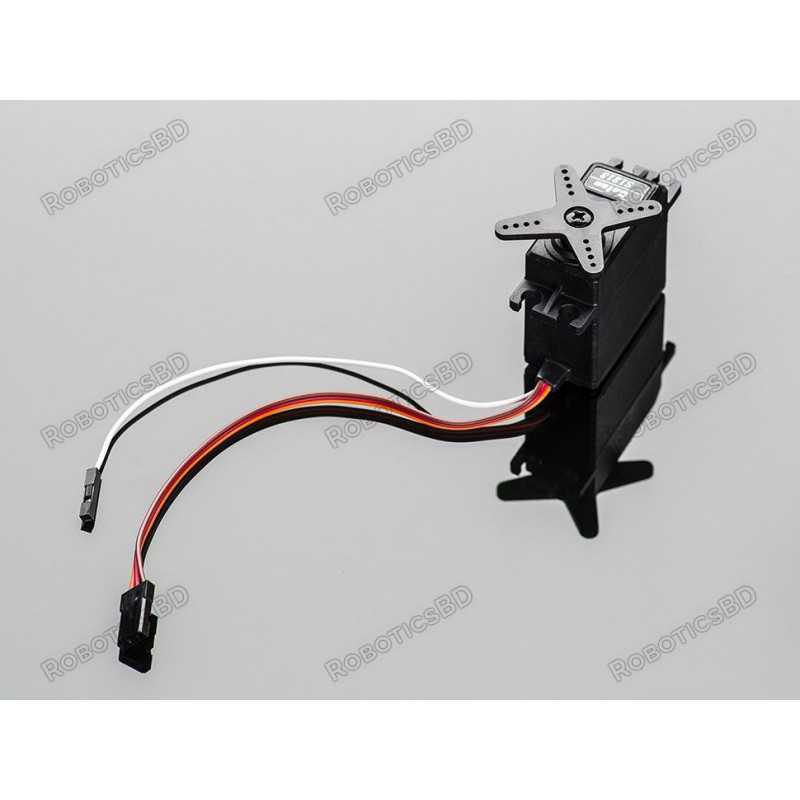

It looks like a servo, it acts like a servo, but it's more than just a servo! We got a factory to custom-make these classic 'standard' sized hobby servos with a twist - the feedback (potentiometer wiper) line is brought out to a fourth white wire. You can read this wire with an analog input such as those on an Arduino, to get the servo's position.
Getting an original TowerPro Servo Motor is not an economical option at all!!! And is also a very difficult task to recognize and buy an original TowerPro servo, Because there are many suppliers spread over different online shops who are selling fake servo motors under this Brand name.
Only after doing all the possible quality checks we make the product available to our customers.Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RED – Positive
Brown – Negative
Orange – Signal
White- Analog Feedback
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Operating Voltage (VDC) | 4.8 ~ 6.6 |
| Temperature Range | 0- 55℃ |
| Stall Torque @ 4.8V (Kg-Cm) | 9.4 |
| Stall Torque @6.6V (Kg-Cm) | 11 |
| Operating Speed @4.8V | 0.19sec/60° |
| Operating Speed @6.6V | 0.15sec/60° |
| Dead Bandwidth | 1uS |
| Gear Type | Metal |
| No. of teeth | 25 |
| Length (mm) | 40.7 |
| Width (mm) | 19.7 |
| Height (mm) | 42.9 |
| Weight (gm) | 55 |
| Shipment Weight | 0.059 kg |
| Shipment Dimensions | 5 × 3 × 5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Analog Feedback Servo MG996R.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of Analog Feedback Servo MG996R in Bangladesh is BDT 1,200 You can buy the Analog Feedback Servo MG996R at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
