Micro size servo is perfect for driving micro-robot drive wheels.
|
Continuous rotation servos are like regular hobby RC servos but modified to offer speed control instead of position control. They're essentially compact, affordable motors with integrated motor drivers. Add a wheel, and you've got a simple drive system for your robot, controllable with an RC signal or directly connected to a single microcontroller I/O line. |
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
|
Continuous rotation servos are like regular hobby RC servos but modified to offer speed control instead of position control. They're essentially compact, affordable motors with integrated motor drivers. Add a wheel, and you've got a simple drive system for your robot, controllable with an RC signal or directly connected to a single microcontroller I/O line.
Enjoy controlling your robot and exploring its capabilities! |

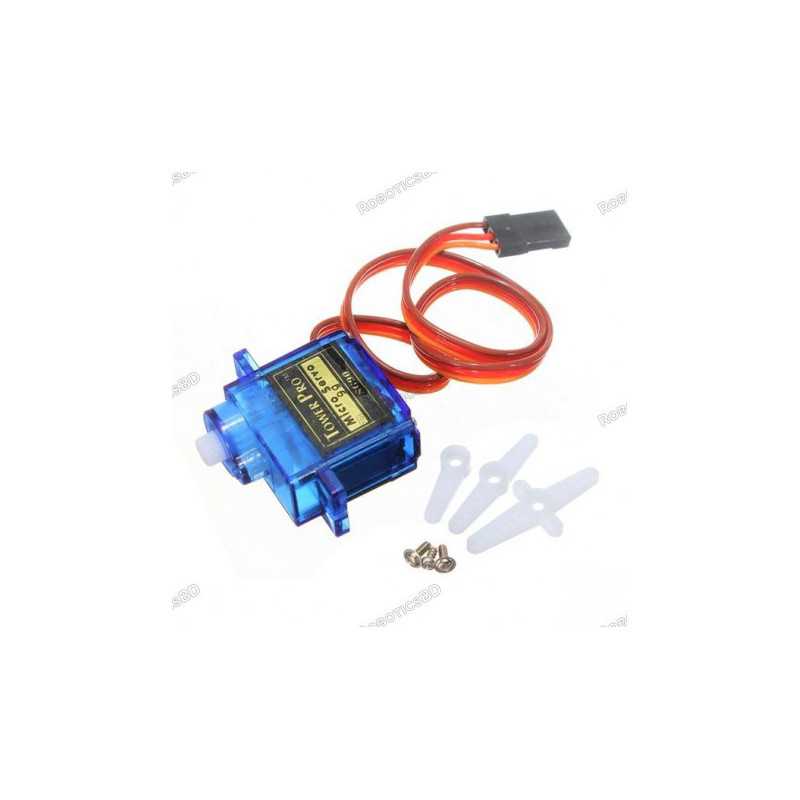

The SG90 – 360 degree continuous rotation servo is a micro size analog servo.
|
This servo motor requires a higher current and cannot be powered directly from the Arduino Uno or Mega. You will need to provide an additional 5V, 3A power supply in conjunction with the Arduino. |
Unlike normal servos that can be commanded to an exact position within a range of about 180 or 360 degrees, these servos will rotate continuously in either direction with no ability to position it to a particular position. Think of them more like small DC motors with a motor controller built-in that powers the motor and that allows you to start/stop and control direction.
The gears are nylon. The nominal speed of rotation is 120RPM @ 5V. The motor can be run slower down to about 60RPM, but will stall easier at lower speeds.
These types of servos are handy for driving wheels on a micro-robot where space is limited or if you just want to spin something.
These are driven by a PWM signal. A pulse width of approximately 1500uS (PWM value of about 185) will cause the motor to stop. A higher PWM value over about 195 will rotate the motor in one direction while a lower PWM value under about 175 will cause the motor to rotate in the opposite direction. If the PWM value drops below about 500uSec (PWM value of 62), the motor will also stop due to insufficient drive.
If using the Servo.h library, as shown in the code below, a command of about 90 will cause the motor to stop. A value of 0 will cause it turn in one direction at full speed and a value of 180 will cause it to turn in the other direction at full speed.
The built-in cable has a 3-pin female connector that is usually mated with a male header.
1×3 Female Connector
These servos are fairly strong little motors.
The servo runs on 5V with a current draw about 10mA at idle and 110mA to 250mA when being commanded to move depending on how it is being operated. Current draw can get up to a maximum of 300mA under a stall condition, so be aware of that. One SG90 can typically be driven off the power pin of an Arduino when experimenting as long as you don’t stall it, but motors in general are electrically noisy and power hungry devices. It is always better to drive them directly off of a power supply rather than trying to power from the on-board MCU regulator whenever possible
If you do decide to run it directly off the MCU, you can help avoid most problems by running the power and ground from the MCU over to a breadboard and then to the servo. By placing a fairly large electrolytic cap of around 470-1000uF across the power and ground on the breadboard, that will help to insulate the MCU from some of the power surges of the motor.
The program below can be used to exercise a 360 degree servo motor. It simply spins the servo in one direction for 3 seconds, pauses and the spins in the opposite direction for 3 seconds.
To use, hookup 5V and ground to the servo power and ground pins. Connect the PWM pin to pin 9 on the MCU, but this can be changed to any PWM capable pin.
/* Exercise 360 degree Servo motor Simply runs servo in one direction for 2 seconds and then reverses direction Uses built-in Servo.h library */ #include "Servo.h" #define SERVO_PIN 9 // Can use any PWM pin Servo servo; // creates servo object used to control the servo motor //=============================================================================== // Initialization //=============================================================================== void setup() { servo.attach(SERVO_PIN); // assigns PWM pin to the servo object } //=============================================================================== // Main //=============================================================================== void loop() { servo.write(0); //Spin in one direction delay(3000); servo.write(90); // Stop delay(500); servo.write(180); // Spin in opposite direction delay(3000); servo.write(90); // Stop delay(500); }
The latest price of Servo Motor Micro SG90 360 Degree Continuous Rotation in Bangladesh is BDT 170 You can buy the Servo Motor Micro SG90 360 Degree Continuous Rotation at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
