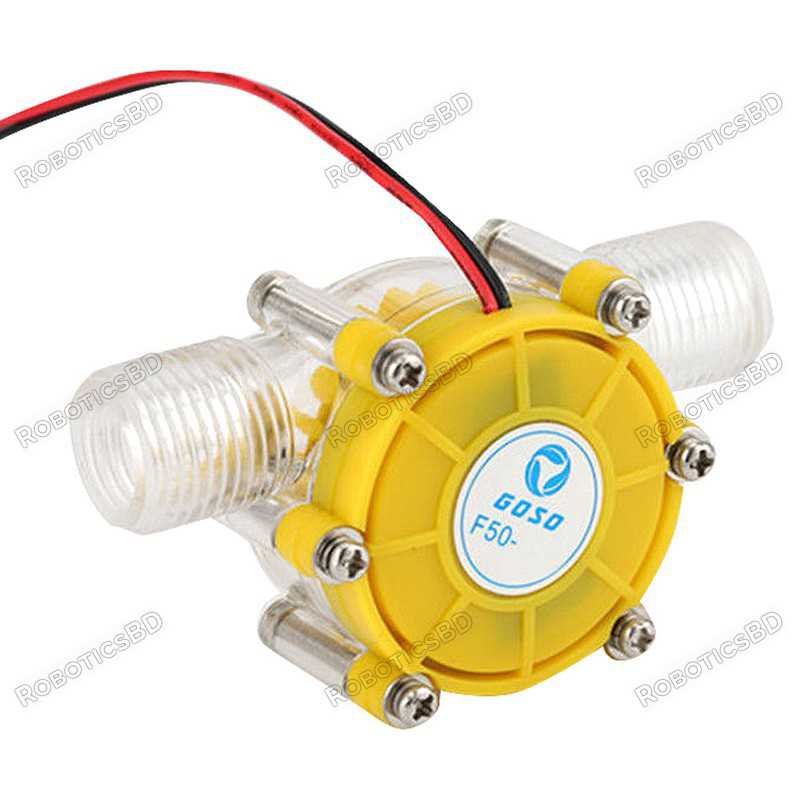

The DC 12V Water Flow Pump Mini Hydro Generator Turbine is a versatile device that allows for the conversion of water energy into electrical energy. This turbine can be used to directly charge small batteries, mobile phones, or power LED lights, making it an excellent solution for portable and off-grid applications. With a maximum output current of greater than equal 220mA, it provides sufficient power for various low-power devices. The line resistance of 10.5+/-0.5ohm ensures efficient energy transfer, while the insulation resistance of 10Mohm guarantees safe operation. The turbine is designed to withstand pressure, with a maximum closed outlet pressure of 0.6Mpa and a maximum opened outlet pressure of 1.2Mpa.
It can start operating at a water pressure as low as 0.05Mpa. With an axial clearance of 0.2-1.0mm and a mechanical noise level of less than equal 55dB, the turbine delivers smooth and quiet performance. The output voltage is directly proportional to the water pressure, eliminating the need for a voltage regulator circuit. Installation is simple, as it fits standard household 1/2 inch water pipes. With a voltage rating of 12V and a durable plastic construction, this turbine is a reliable and efficient solution for water energy conversion. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Product Name | DC 12V Water Flow Pump Mini Hydro Generator Turbine |
| Output Current | Max. greater than equal 220mA |
| Line Resistance | 10.5+/-0.5ohm |
| Insulation Resistance | 10Mohm (DC100 megohmmeter) |
| Closed Outlet Pressure | Max. 0.6Mpa |
| Opened Outlet Pressure | Max. 1.2Mpa |
| Starting Water Pressure | 0.05Mpa |
| Axial Clearance | 0.2-1.0mm |
| Mechanical Noise | less than equal 55dB |
| Output Characteristics | Voltage proportional to water pressure |
| Installation | Standard household 1/2 inch water pipe (Outer diameter: 20mm, inner diameter: 13mm) |
| Voltage | 12V |
| Color | Transparent + yellow |
| Material | Plastic |
| Shipment Weight | 0.088 kg |
| Shipment Dimensions | 12 × 8 × 4 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x DC 12V Water Flow Pump Mini Hydro Generator Turbine
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of DC 12V Water Flow Pump Mini Hydro Generator Turbine in Bangladesh is BDT 1,220 You can buy the DC 12V Water Flow Pump Mini Hydro Generator Turbine at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
