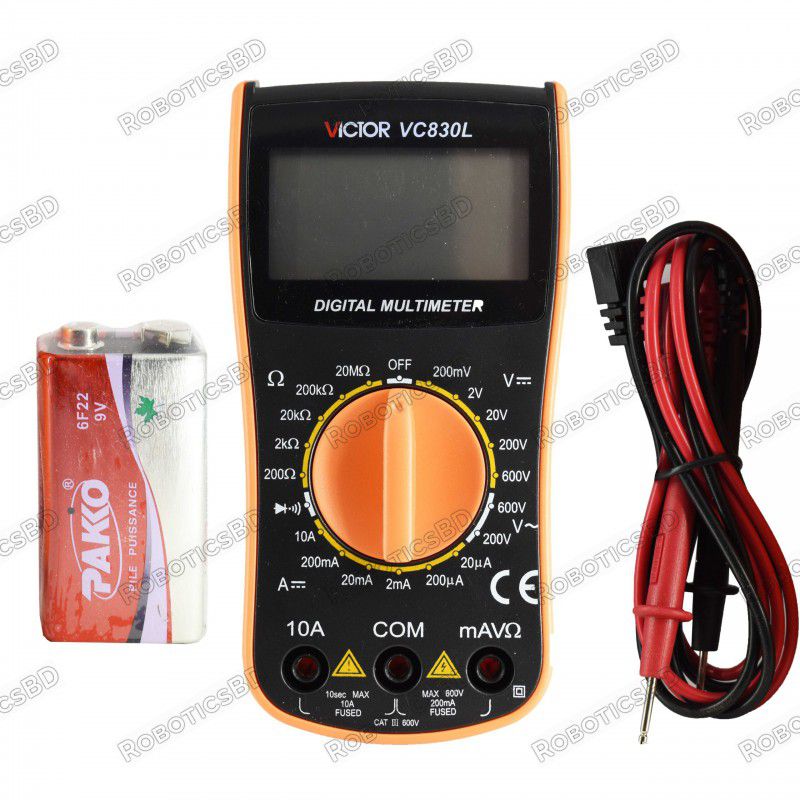

The Victor VC830L Digital Multimeter – Multimeter with Probes is a handheld Digital Multimeter for measuring DC and AC Voltage, DC Current, Resistance, Diode and Transistor with battery operated. The Mastech MAS830L Digital Multimeter has Blue Backlight LCD display with 1999 counts and 2-3/sec updates Measuring method. It features dual-slope integration A/D Converter. RoboticsBD
Accurate Victor VC830L Digital Multimeter is designed to be used in your household and other working spaces. You can easily rely on its accuracy and count on it for its readings. This helps you keep a check on the usage and voltage. RoboticsBD
The Victor VC830L Digital Multimeter is a compact, pocket-sized digital multimeter. It is ideal for most DC measurements. This meter is convenient for them on the go professionals who need to do basic voltage, current, resistance, continuity measurements, Diode check:3V/0.8mA, etc. This meter also has data hold facility and backlight for those nightlife DIY makers. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Features | ||
| DC Voltage | 200mV/2V/20V/200V/600V | ±(0.5%+4) |
| AC Voltage | 200V/600V | ±(1.2%+10) |
| DC Current | 200uA/2mA/20mA/200mA/10A | ±(1.5%+3) |
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ/20MΩ | ±(0.8%+5) |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| Special Features | |
| Special Function | VC830L |
| Diode test | √ |
| Continuity buzzer | √ |
| Low battery indication | √ |
| Input impedance | 10MΩ |
| Sampling rate | 3times/s |
| AC frequency response | (40-400)Hz |
| Operation way | Manual range |
| Max. Display | 1999 |
| LCD size | 57×33mm |
| Battery | 9V(6F22) |
| General Specification | |
| Product color | Case: dark gray ; Holster color : yellow |
| Product Net Weight | Approx. : 150g(include battery ) |
| Product Dimension | 138×72×35mm |
| Standard Accessories | Test leads / battery /instruction manual |
| Shipment Weight | 0.150 kg |
| Shipment Dimensions | 14 × 7.5 × 3.5 cm |
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Victor VC830L Digital Multimeter
The latest price of Victor VC830L Digital Multimeter in Bangladesh is BDT 1,100 You can buy the Victor VC830L Digital Multimeter at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
