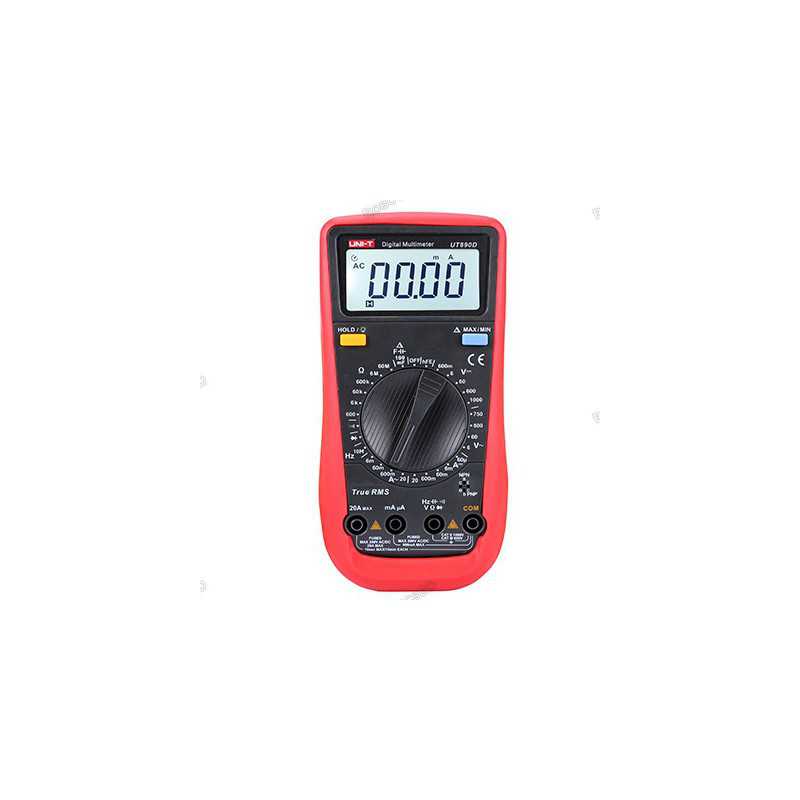

The UT890D+ Digital Multimeter is a measurement tool used for electrical testing and troubleshooting. It is manufactured by Uni-Trend, a leading supplier of electronic testing equipment. The multimeter is designed to measure a wide range of electrical parameters, including AC/DC voltage, current, resistance, capacitance, frequency, duty cycle, and temperature. It features a large LCD display, auto-ranging, manual range selection, and data hold function. The UT890D+ also has safety features such as a built-in fuse, overload protection, low battery indicator, and automatic power-off function. The device is widely used by electricians, technicians, and DIY enthusiasts for various electrical testing applications.
The maximum measurable capacitance is 100mF, with fast response time of less than 12s. The NCV and continuity measurement have acousto-optic indications. UT890D+ has a LIVE function for distinguishing between live and neutral wires. In addition, it is equipped with the automatic fuse blown detection and high voltage protection.Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | ||
| DC Voltage | 600mV/6V/60V/600V/1000V | ±(0.5%+2) |
| AC Voltage | 6V/60V/600V/750V | ±(0.8%+3) |
| ACV Frequency | 10Hz～10kHz | ±（0.1%+5) |
| DC Current | 600mA/20A | ±(0.8%+8) |
| AC Current | 60uA/600uA/6mA/60mA | ±(1%+12) |
| AC Current | 600mA/20A | ±(1%+12) |
| Resistance | 600Ω/6kΩ/60kΩ/600kΩ | ±(0.8%+3) |
| Resistance | 6MΩ/60MΩ | ±(0.8%+3) |
| Capacitor | 6.000nF/60.00nF/600.0nF | ±(3%+10) |
| Capacitor | 6.000μF/60.00μF | ±(3%+10) |
| Capacitor | 0.00mF/100.0mF | ±(3%+10) |
| Frequency | 9.999Hz～9.999MHz | ±(1.0%+5) |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Features | ||
| Display Count | 6000 | |
| Manual Range | √ | |
| NCV | √ | |
| hFE | √ | |
| Diode Test | √ | |
| Continuity Test | √ | |
| Live | √ | |
| True RMS | √ | |
| Fuse blowing alarm | √ | |
| Acousto-optic indication(NCV/continuity) | √ | |
| High voltage false detection | 1000Vrms | √ |
| Current (AC/DC) mode memory | √ | |
| Over-current alarm | ≥20A | √ |
| Low Battery Indication | ≤2.5V | √ |
| Data Hold | √ | |
| REL | √ | |
| Max/Min | V 、A | √ |
| Auto Power Off | 15Min | √ |
| Back light | 30s | √ |
| Operation Temperature | 0℃～40℃ | |
| Safety | CAT Ⅱ 1000V/CAT III 600V | |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Multiple measurement functions: The UT890D+ Digital Multimeter can measure AC/DC voltage, current, resistance, capacitance, frequency, duty cycle, and temperature. It's capable of handling a wide range of electrical testing needs.
Large display: The multimeter has a large 3.5-inch backlit LCD display that makes it easy to read the measurement results, even in low light conditions.
Auto-ranging: The multimeter has an auto-ranging feature that automatically selects the appropriate measurement range based on the input signal. This makes it easier to use, especially for beginners.
Data hold and manual range selection: The UT890D+ Digital Multimeter has a data hold function that allows users to freeze the measurement results on the display. It also has manual range selection, giving users more control over the measurement range.
Safety features: The multimeter has a built-in fuse and overload protection to prevent damage to the device or the circuit being tested. It also has a low battery indicator and automatic power-off function to conserve battery life.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Characteristics | |
| Power | 1.5V x 2 |
| Product color | Red and Gray |
| Product Net Weight | 346g |
| Product Size | 183mm x 88mm x 56mm |
| Shipment Weight | 0.350 kg |
| Shipment Dimensions | 19 × 9 × 6 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x UT890D+ Digital Multimeter
The latest price of UNI-T UT890D+ Digital Multimeter in Bangladesh is BDT 2,300 You can buy the UNI-T UT890D+ Digital Multimeter at best price from our RoboticsBD or visit RoboticsBD Office.
|
