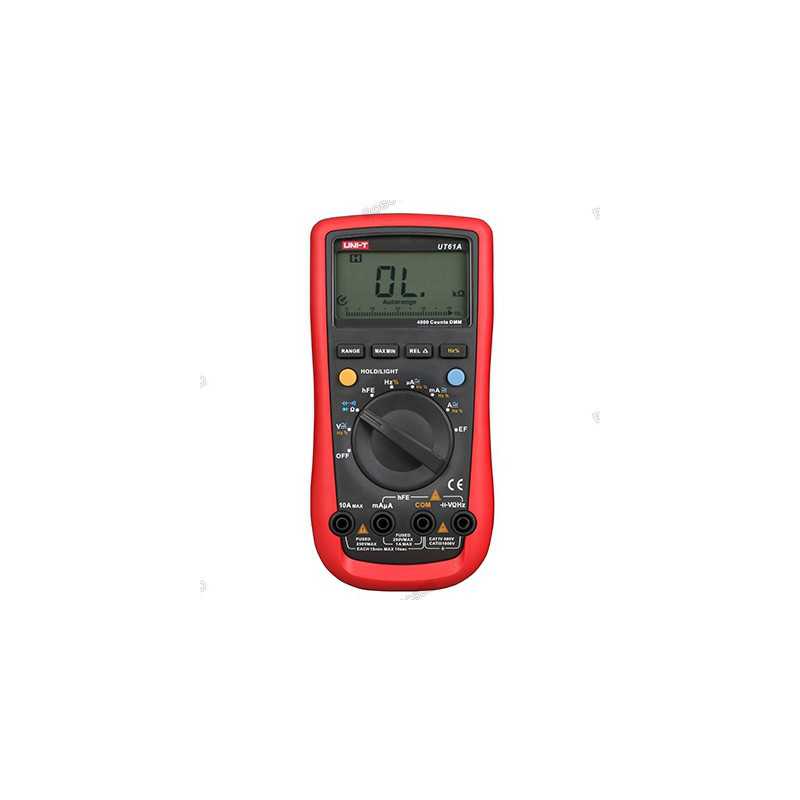

The UT61A is a digital multimeter manufactured by Uni-T. It is a versatile and accurate tool used to measure various electrical values such as voltage, current, resistance, capacitance, frequency, and temperature.
The UT61A has a 4 3/4 digit LCD display and can measure AC/DC voltage up to 1000 volts, AC/DC current up to 10 amps, resistance up to 40 megaohms, capacitance up to 4000 microfarads, frequency up to 40 MHz, and temperature up to 1000 degrees Celsius. It also has a continuity test function, a diode test function, and a data hold function.
The UT61A is powered by a 9-volt battery and is housed in a durable and ergonomic plastic case. It also features overload protection and is designed to meet the safety standards of EN61010-1, CAT III 1000V and CAT IV 600V.
The UT61A also has some additional features such as a relative measurement function, a peak value measurement function, and a USB interface for connecting to a computer for data logging and analysis.
Overall, the UT61A is a high-quality and versatile multimeter that can be used in a variety of applications, from basic electrical work to more advanced testing and analysis. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | ||
| DC voltage (V) | 1000V | ±(0.5%+1) |
| AC voltage (V) | 750V | ±(1%+3) |
| DC current (A) | 10A | ±(1%+2) |
| AC current (A) | 10A | ±(1.2%+5) |
| Resistance (Ω) | 40MΩ | ±(1%+2) |
| Capacitance (F) | 4000μF | ±(3%+5) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+4) |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Features | ||
| Display count | 4000 | |
| Bandwidth (Hz) | 45Hz~400Hz | |
| Duty cycle | 0.1%~99.9% | √ |
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Power | 9V battery (6F22) |
| Display | 65mm x 43mm |
| Product color | Red and grey |
| Product net weight | 370g |
| Product size | 180mm x 87mm x 47mm |
| Shipment Weight | 0.380 kg |
| Shipment Dimensions | 18 × 9 × 5 cm |
| Frequency | 9.999Hz～9.999MHz |
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x UT61A Digital Multimeter
The latest price of UNI-T UT61A Digital Multimeter in Bangladesh is BDT 4,100 You can buy the UNI-T UT61A Digital Multimeter at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
