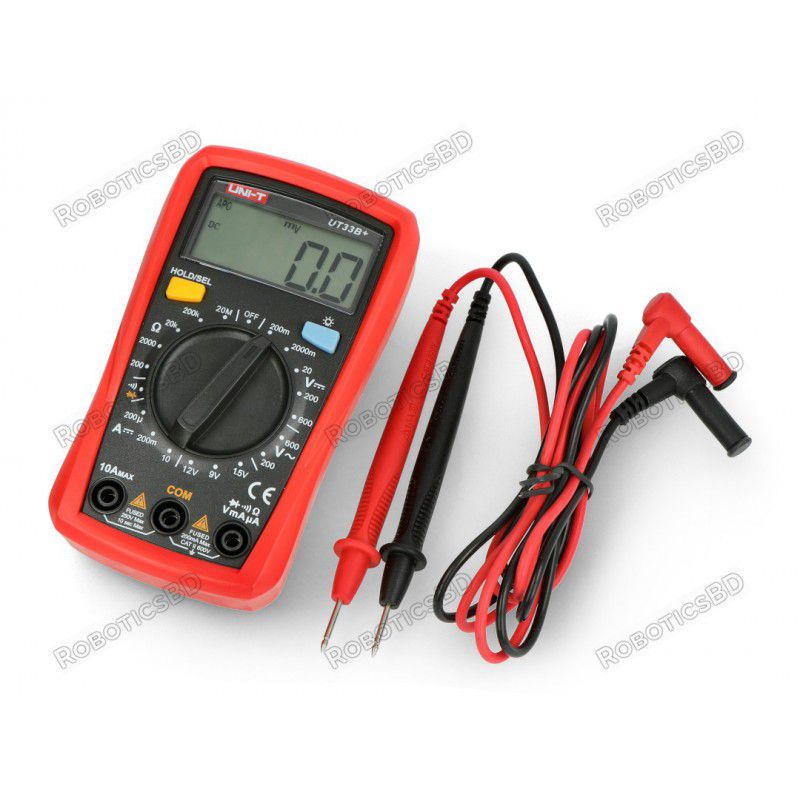

The Uni-T UT33B+ is a digital multimeter, which is a tool used to measure various electrical values such as voltage, current, and resistance. The UT33B+ is a low-cost, portable multimeter designed for both professional and amateur use.
The UT33B+ has a 3 1/2 digit LCD display and can measure AC/DC voltage up to 600 volts, DC current up to 10 amps, resistance up to 20 megaohms, and frequency up to 10 MHz. It also has a continuity test function, a diode test function, and a data hold function.
The UT33B+ is powered by a 9-volt battery and is housed in a compact and durable plastic case with a tilt stand on the back. The multimeter also features overload protection and is designed to meet the safety standards of EN61010-1, CAT II 600V.
Overall, the Uni-T UT33B+ digital multimeter is a basic but versatile tool that can be used in a variety of applications, from hobby electronics to basic electrical work. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Features | ||
| DC voltage (V) | 200mV/2V/20V/200V/600V | ±(0.5%＋2) |
| AC voltage (V) | 200V/600V | ±(1.2%+3) |
| DC current (A) | 200μA/200mA/10A | ±(1%+2) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ | ±(0.8%+2) |
| Resistance (Ω) | 200kΩ/20MΩ | ±(0.8%+2) |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| Special Features | |
| Display count | 2000 |
| Auto power off/Auto backlight off | √ |
| Diode test/Continuity buzzer | √ |
| 2m drop test/ Test probe holder | √ |
| Range selection | Manual |
| Battery test | 1.5V/9V/12V |
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Power | 1.5V battery (R03) x 2 |
| Display | 66mm x 51mm |
| Product net weight | Red and grey |
| Product color | 206g (batteries included) |
| Product size | 134mm x 77mm x 47mm |
| Shipment Weight | 0.315 kg |
| Shipment Dimensions | 13.5 × 8 × 5 cm |
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Uni-T UT33B+ Digital Multimeter
The latest price of Uni-T UT33B+ Digital Multimeter in Bangladesh is BDT 1,145 You can buy the Uni-T UT33B+ Digital Multimeter at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
