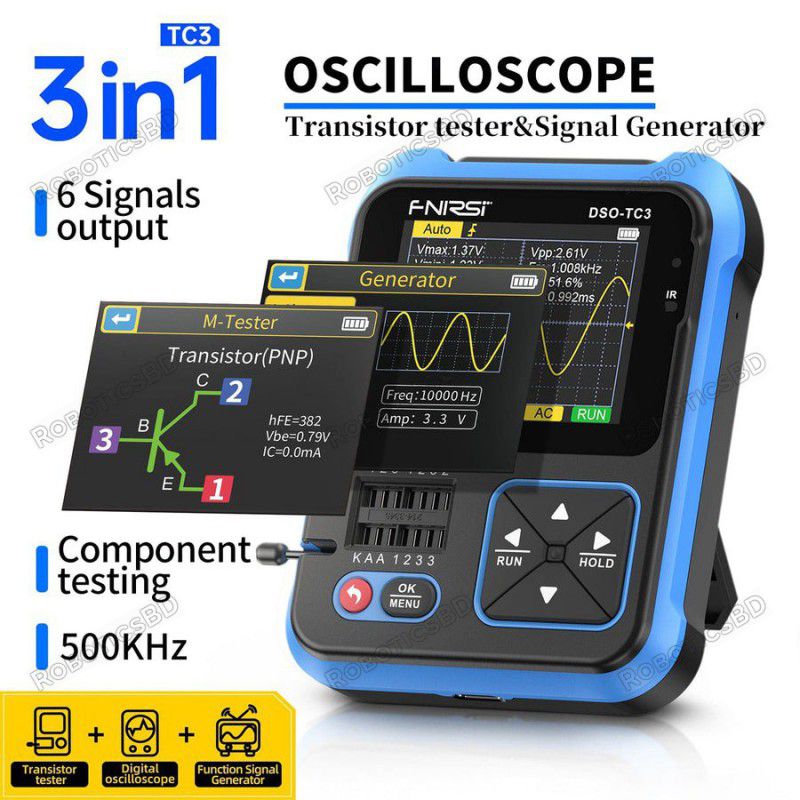

The FNIRSI DSO-TC3 is a powerful and portable 3-in-1 multifunction tester that combines a 500kHz digital oscilloscope, function signal generator, and transistor/component tester into a compact handheld device. Designed with a clear 2.4-inch TFT color screen and a rechargeable lithium battery, this all-in-one instrument is perfect for electronics enthusiasts, students, hobbyists, and field technicians alike.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
Product Description:
The FNIRSI DSO-TC3 is a powerful and portable 3-in-1 multifunction tester that combines a 500kHz digital oscilloscope, function signal generator, and transistor/component tester into a compact handheld device. Designed with a clear 2.4-inch TFT color screen and a rechargeable lithium battery, this all-in-one instrument is perfect for electronics enthusiasts, students, hobbyists, and field technicians alike.
Whether you're analyzing signal waveforms, identifying unknown components, or generating test signals, the DSO-TC3 provides professional-grade capabilities in a palm-sized format.
Key Features:
3-in-1 Functionality: Digital Oscilloscope + Transistor Tester + Function Signal Generator
Oscilloscope Specs:
Sampling rate: 10MS/s
Analog bandwidth: 500kHz
Voltage range: up to 400V
Trigger modes: Auto / Normal / Single
Waveform freeze and auto measurement supported
Component Testing:
Supports NPN/PNP transistors, FETs, diodes, triacs, resistors, capacitors, inductors, and more
MOS Test mode for detailed transistor identification
Capacitance ESR testing and diode regulation up to 32V
Signal Generator Modes:
Output waveforms: sine, square, triangle, pulse, ramp, DC
Frequency: 1Hz to 100kHz
Voltage: 0–3.3V adjustable output
Additional Test Modes:
Circuit continuity check
Input voltage detection (0–40V)
Infrared remote decoding (NEC protocol)
DS18B20 and DHT11 sensor support for temperature and humidity
PWM output and diode testing
Display & Build:
2.4-inch TFT color screen with LED backlight
Foldable integrated stand for hands-free operation
USB Type-C charging
Technical Specifications:
Oscilloscope:
Sample Rate: 10MSa/s
Bandwidth: 500kHz
Input Resistance: 1MΩ
Coupling: AC/DC
Voltage Range: up to 400V
Vertical Sensitivity: 10mV – 10V
Time Base Range: 1µs – 10s
Trigger Type: Rising/Falling edge
Trigger Modes: Auto / Normal / Single
Function Signal Generator:
Waveforms: Sine, Square, Pulse, Triangle, Ramp, DC
Frequency: 1Hz – 100kHz
Output Voltage: 0–3.3V
Transistor Tester & Components:
Triodes: β = 10–600
Capacitor Range: 25pF – 100mF
Resistor Range: 0.01Ω – 50MΩ
Inductor Range: 10µH – 1000µH
Voltage Testing: 0 – 40V
Diode Forward Drop: <4.5V
Regulated Diode: 0.01–32V
Temperature: DS18B20 (0–85°C), DHT11 (0–60°C, RH 5–95%)
Infrared Code Analysis: NEC protocol
Applications:
DIY electronics and prototyping
Circuit debugging and testing
Signal waveform monitoring
Component identification and sorting
Educational and training labs
Portable field diagnostics
Package Includes:
1 x FNIRSI DSO-TC3 Handheld Digital Oscilloscope
1 x Test Probe
1 x USB Type-C Charging Cable
1 x User Manual
Why Choose the FNIRSI DSO-TC3?
With a versatile set of features packed into a compact and user-friendly design, the DSO-TC3 simplifies electronics testing, waveform analysis, and signal generation. Whether you're learning, building, or troubleshooting, it gives you professional tools at your fingertips—anywhere, anytime.
Upgrade your electronics workspace with the FNIRSI DSO-TC3 and experience true all-in-one functionality today!
The latest price of FNIRSI DSO-TC3 3-in-1 Handheld Digital Oscilloscope, Signal Generator & Transistor Tester in Bangladesh is BDT 7,475 You can buy the FNIRSI DSO-TC3 3-in-1 Handheld Digital Oscilloscope, Signal Generator & Transistor Tester at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
