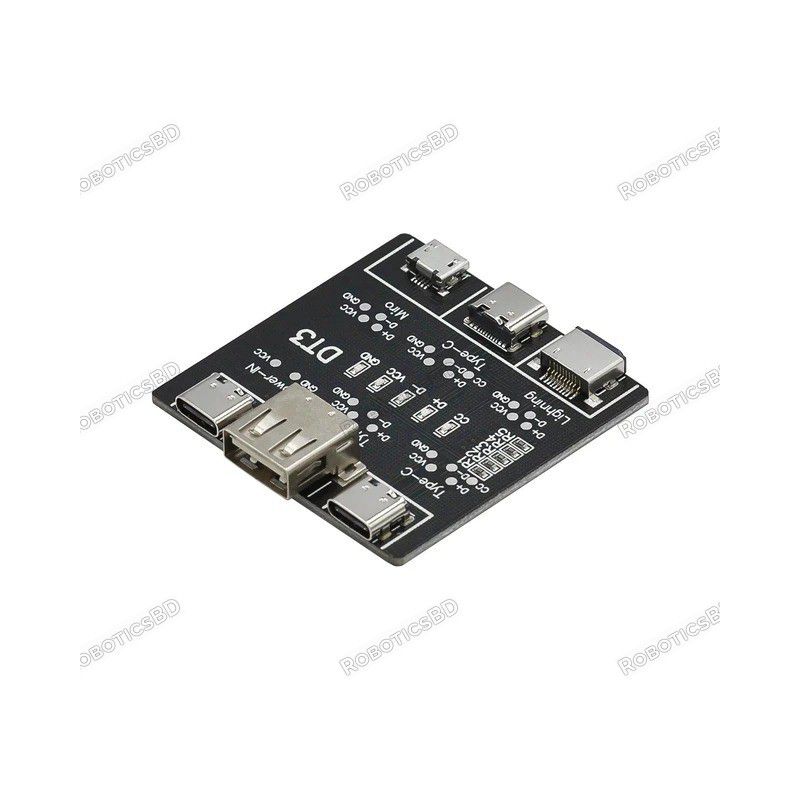

USB Data Cable On-Off Detection Board for Micro Type-C Port (DT3 USB Cable Tester)
The USB Data Cable On-Off Detection Board for Micro Type-C Port (DT3) is a fast, lightweight, and durable tester designed for quick identification of abnormal data lines. This tool is perfect for ensuring reliable data cable performance with ease.
Quick Detection of Abnormal Data Lines: Provides rapid diagnosis to identify issues in USB cables.
Compact and Convenient: Small size makes it easy to carry and use anywhere.
Fast and Efficient: Facilitates quick detection to save time.
Multi-Level Protection: Ensures stability and safety during testing.
User-Friendly: Simple operation for ease of use.
The DT3 USB Data Cable Tester is designed for lightning-fast detection and simple operation. Equipped with multi-level protection, this detection board guarantees stability and safety throughout the testing process. Ideal for Micro and Type-C port USB cables, it is perfect for field technicians and home use alike.
How It Works:
Connect power to the board via the designated power port.
Insert the test leads into the appropriate input ports.
Indicator lights provide immediate feedback:
4 lights on: Power supply is normal.
4 lights off: Power supply is abnormal.
Two-head Type-C connection: 5 lights indicate normal power.
Indicator Guide:
When the light is on, power is functioning as expected.
When the light is off, power is not present or abnormal.
Size: 5.4 x 5 cm (manual measurement)
Net Weight: 13g
1 x Data Line Detection Board
The latest price of USB Data Cable Tester Board for Micro Type-C Port in Bangladesh is BDT 234 You can buy the USB Data Cable Tester Board for Micro Type-C Port at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
