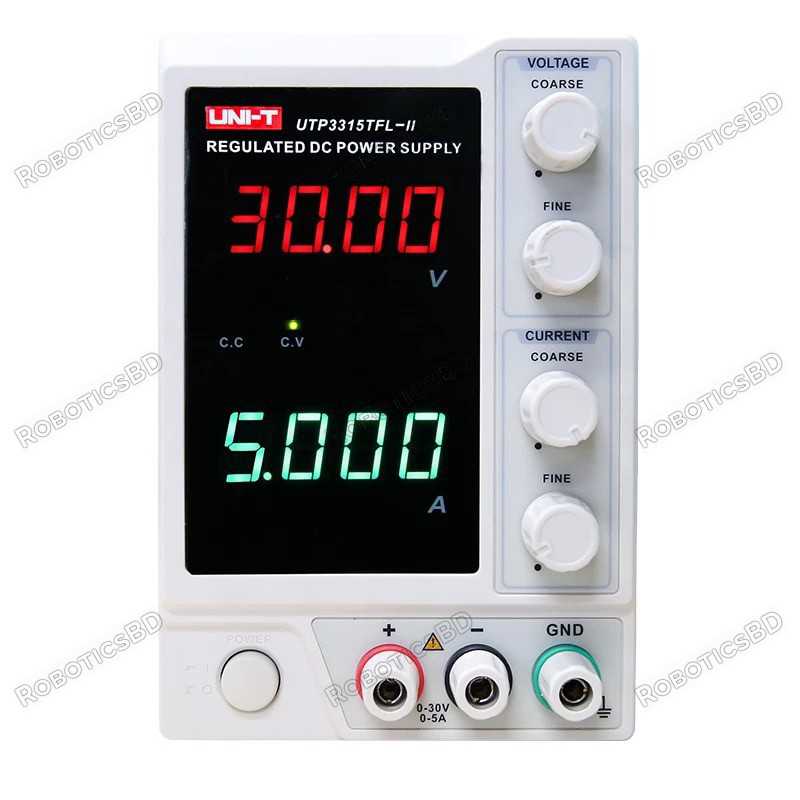

UNI-T UTP3315TFL-II is a single-channel transformer DC power supply with an LED display. UNI-T UTP3315TFL-II ensures the power supply of electronic devices and circuits with DC voltage in a range of 0 to 30 V and with the current in a range of 0 to 5 A. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Output voltage | 0-30 V |
| Output current | 0-5 A |
| Output power | 150 W |
| Load regulation | CV: ≤0.01%+5 mV, CC: ≤0.1%+10 mA |
| Accuracy (25°C±5°C) | Voltage: <0.5%+20 mV Current: <0.5%+10 mA |
| Ripple and noise | ≤2 mVrms |
| Output regulation resolution | CV: 10 mV (typical), CC: 1 mA (typical) |
| Display | LCD |
| Power | input voltage: 110 V/220 V±5% AC; frequency: 50 Hz/60 Hz |
| Dimensions | 105 mm × 165 mm × 249 mm |
| Weight | 4 kg |
| Shipment Weight | 4.1 kg |
| Shipment Dimensions | 31 × 23 × 17 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x UNI-T UTP3315TFL-II DC Power Supply .
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of UNI-T UTP3315TFL-II DC Regulated Power Supply in Bangladesh is BDT 11,500 You can buy the UNI-T UTP3315TFL-II DC Regulated Power Supply at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
