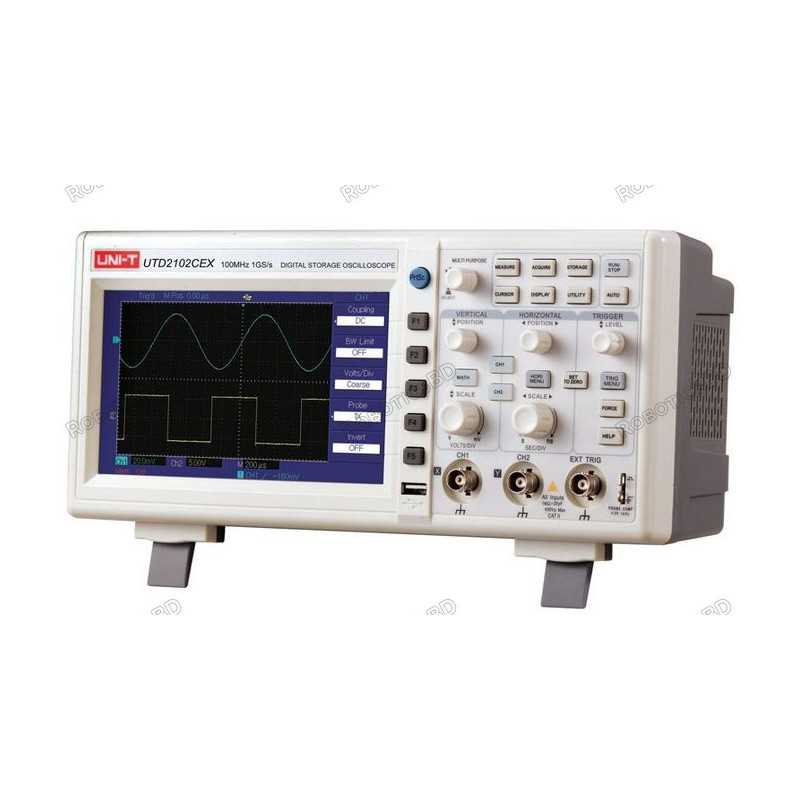

UNI-T UTD2102CEX Digital Oscilloscope 100MHz Bandwidth with USB OTG Interface 2 Channels Storage Portable Oscilloscope. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The UNI-T UTD2102CEX+ is a high-performance 100MHz Digital Storage Oscilloscope designed for professionals, educators, and electronics enthusiasts who demand precision, versatility, and deep analytical capability. With a real-time sample rate of 1GSa/s, dual analog channels, and a powerful feature set including advanced math operations, FFT spectral analysis, and XY mode, this oscilloscope is an essential tool for every modern electronics lab.
Bandwidth: 100MHz
Real-Time Sample Rate: 1GSa/s
Channels: 2 analog input channels
Waveform Capture Rate: 5,000 wfms/s
Memory Depth: 64kpts for detailed waveform storage and analysis
Display: 7-inch high-resolution LCD screen
Advanced Math Capabilities:
Perform real-time calculations with addition, subtraction, multiplication, and division of CH1 and CH2 signals.
Dual View Zoom Mode:
Zoom in on signal details without losing the overall waveform context, with a split-screen view for both full and magnified signals.
FFT Spectral Analysis:
Switch seamlessly from time-domain to frequency-domain analysis to inspect harmonics, signal noise, and distortion characteristics.
XY Mode (Lissajous Figures):
Graphically measure phase differences between two signals with precision.
Intelligent AUTO Mode:
Automatically optimizes vertical, horizontal, and trigger settings for perfect waveform visualization with one click.
34 Auto-Measurement Parameters:
Includes RMS, Peak-to-Peak, Frequency, Rise/Fall Time, Duty Cycle, Min/Max, and more. Custom groups allow focused analysis.
Versatile Trigger Options:
Edge, Slope, Pulse Width, Video, and Alternating triggers enable accurate capture of complex signals.
Electronic circuit debugging
Signal integrity analysis
Embedded system diagnostics
Education and laboratory use
Power supply and noise analysis
1 x UNI-T UTD2102CEX+ Digital Storage Oscilloscope
2 x Passive Probes
1 x Power Cable
1 x USB Cable
1 x User Manual
This oscilloscope combines professional-grade performance with user-friendly features, making it ideal for both advanced engineers and educators. Its deep analysis tools and fast refresh rate offer unmatched clarity and control, all at a competitive price point.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Model Name/Number | UTD2012CEX+ |
| Brand | Uni-T |
| Bandwidth | 100MHz |
| Usage/Application | Industrial |
| Channels | Dual |
| Usage | Industrial |
| Size/Dimension | 306mm x 134mm x122mm |
| Memory Depth | 25kpts |
| USB Connectivity | Yes |
| Automated Measurement | Yes |
| Limit Testing | Yes |
| Data Logging Frequency Counter | Yes |
| Help Menu Type | Yes |
| Real Time Sample Rate | 1GS/s |
| Minimum Order Quantity | 1 |
| Shipment Weight | 2.2 kg |
| Shipment Dimensions | 31 × 15 × 12.5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
2 x Probe (1x, 10x switchable)
1 x Power Cord
1 x USB Cable
1 x PC Software CD
The latest price of Oscilloscope UNI-T UTD2102CEX+ in Bangladesh is BDT 33,999 You can buy the Oscilloscope UNI-T UTD2102CEX+ at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
