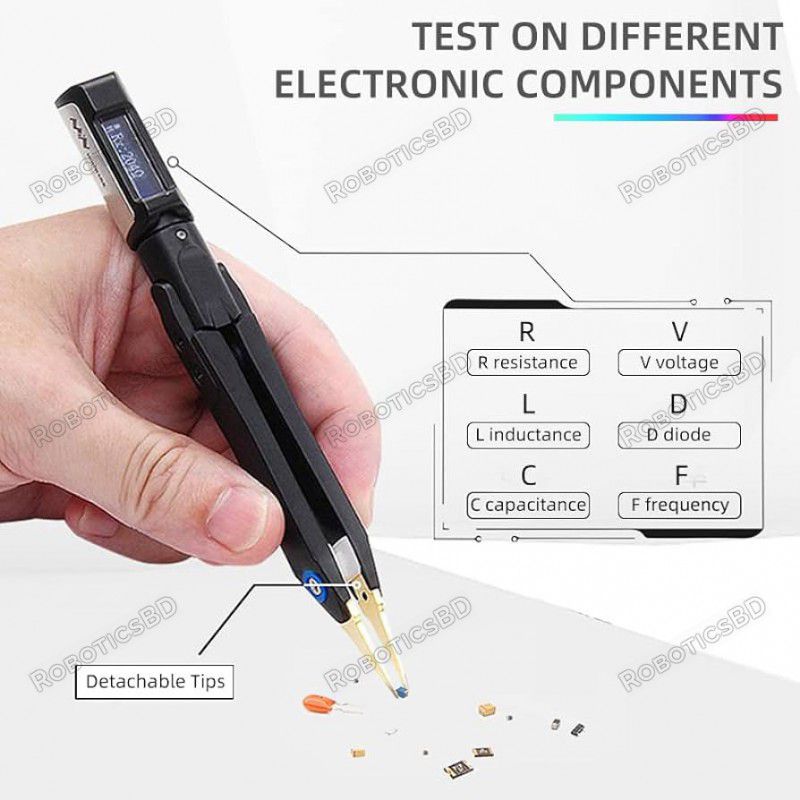

DT71 mini digital tweezers is a tool that integrates multi-function measurement, signal generator, and fully differential input measurement.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
DT71 mini digital tweezers is a tool that integrates multi-function measurement, signal generator, and fully differential input measurement.
It has a unique trinary structure that includes a controller, measuring arm and tweezers head, which can be flexibly replaced and combined.
There is an OLED screen on the 360° rotatable controller, which provides visibility from all angles. With smart gesture recognition, it can automatically recognize left and right operations and adjust the screen display.
Different from other LCR testers, DT71 has no physical buttons. Instead, there is a hidden touch button on the top of the controller, which can be easily operated with a light touch.
The test arm uses magnetic elasticity to provide easy clipping, ergonomic, and durable structure.
It comes with gold-plated interchangeable tweezer tips, enabling higher measurement accuracy in various usages.
The built-in dual rechargeable lithium batteries can last 10 hours for one full charge, and the charging time is about 2 hours.
A variety of measurement types are available for measuring resistance, capacitance, inductance, voltage, frequency, diodes and other devices.
Tweezers have manual and automatic recognition modes. In automatic mode, DT 71 can automatically identify SMDs including resistance, capacitance, inductance and diode, and display primary and secondary parameters, which is very useful for quickly distinguishing different components.
At the same time, the built-in miniature waveform signal generator can output a variety of waveform signals, providing a perfect solution for the debugging and maintenance of complex electronic systems and the classification and detection of discrete chip components.
With a compact and mini size, it is convenient to carry around, overturning the appearance restrictions of traditional desktop and hand-held measuring instruments. It is an innovative work in the appearance and structure design of measuring instruments and can be used in any place such as laboratory, workbench, warehouse and outdoor.
With intelligent functions such as automatic identification, automatic shutdown, firmware upgrade, etc.
| Measurement parameters | Range | Resolution | Accuracy |
| Resistance | 0.1Ω~1KΩ | 0.1Ω | 0.5%+2 |
| 1KΩ~2000KΩ | 1KΩ | 0.5%+2 | |
| Capacitance | 0.1pF~1000pF | 0.1pF | 2%+3 |
| 0.001uF~400uF | 0.001uF | 2%+3 | |
| Inductance | 1uH~1000uH | 1uH | 5%+3 |
| 1mH~50mH | 1mH | 5%+3 | |
| Voltage | 1mV~100mV | 1mV | 2%+5 |
| 0.1V~40V | 0.1V | 1%+3 | |
| Frequency | 10Hz~1KHz | 10Hz | 0.1%+3 |
| 1KHz~20000KHz | 1KHz | 0.1%+3 | |
| Diode | Silicon diode, Schottky diodes, LED (forward voltage 0.1~3V) | 0.1V | 1% |
| Maximum input voltage | -5V~+50V | ||
| Input resistance | 1MΩ | ||
The latest price of Miniware DT71 Mini Digital Tweezers in Bangladesh is BDT 16,550 You can buy the Miniware DT71 Mini Digital Tweezers at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
