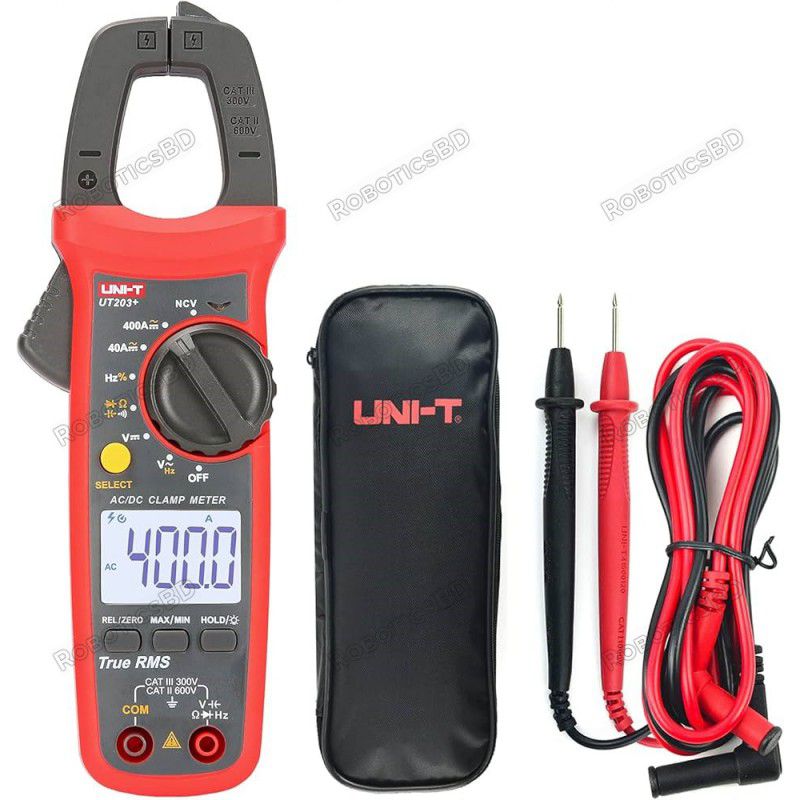

The UNI-T UT203+ Digital Clamp Meter is a versatile, professional-grade tool ideal for accurate AC and DC current measurement in various settings. Equipped with True RMS technology, it provides precise readings even on non-linear waveforms, essential for complex electrical environments. The UT203+ is designed for high-performance applications, with a maximum current range of 400A and a frequency range up to 10MHz, making it suitable for electrical troubleshooting, HVAC diagnostics, and automotive applications. Enhanced by features like temperature measurement (-40°C to 1000°C), Data Hold, MAX/MIN recording, and Relative/Zero modes, it offers flexibility and efficiency for advanced users. Safety rated to CAT III 300V/CAT II 600V, this clamp meter ensures reliability and durability for professional and DIY applications alike. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Model | UT203+ |
| Display Count | 4000 |
| True RMS | Yes |
| AC/DC Current Measurement | Yes, up to 400A |
| AC/DC Voltage Measurement | Yes, up to 600V |
| Frequency Measurement | Yes, up to 10MHz |
| Temperature Measurement | Yes, -40°C to 1000°C |
| Continuity Test | Yes |
| MAX/MIN Recording | Yes |
| Relative/Zero Modes | Yes |
| Jaw Opening | 28mm |
| Safety Rating | CAT II 600V / CAT III 300V |
| NCV (Non-Contact Voltage) | Yes |
| Power Supply | 1.5V Battery (R03) x 2 |
| Product Dimensions | 215 x 63 x 36 mm |
| Product Weight | 235g |
| Shipment Weight | 0.350 kg |
| Shipment Dimensions | 22 x 10 x 5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| Specification | Range | Accuracy |
| AC Current (A) | Up to 400A | ±(2.5% +5) |
| DC Current (A) | Up to 400A | ±(2.5% +5) |
| AC Voltage (V) | Up to 600V | ±(0.8% +5) |
| AC Voltage Frequency | 10Hz - 60kHz | ±(0.5% +2) |
| DC Voltage (V) | Up to 600V | ±(0.5% +2) |
| Resistance (Ω) | Up to 40MΩ | ±(0.8% +2) |
| Capacitance (F) | Up to 40mF | ±(4% +5) |
| Frequency (Hz) | 10Hz - 10MHz | ±(0.1% +4) |
| Temperature (°C) | -40°C to 1000°C | ±(1.5% +5) |
1 x UNI-T UT203+ Digital Clamp Meter AC/DC Current Auto Range True RMS Multimeter
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of UNI-T UT203+ Digital Clamp Meter AC/DC Current Auto Range True RMS Multimeter in Bangladesh is BDT 4,395 You can buy the UNI-T UT203+ Digital Clamp Meter AC/DC Current Auto Range True RMS Multimeter at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
