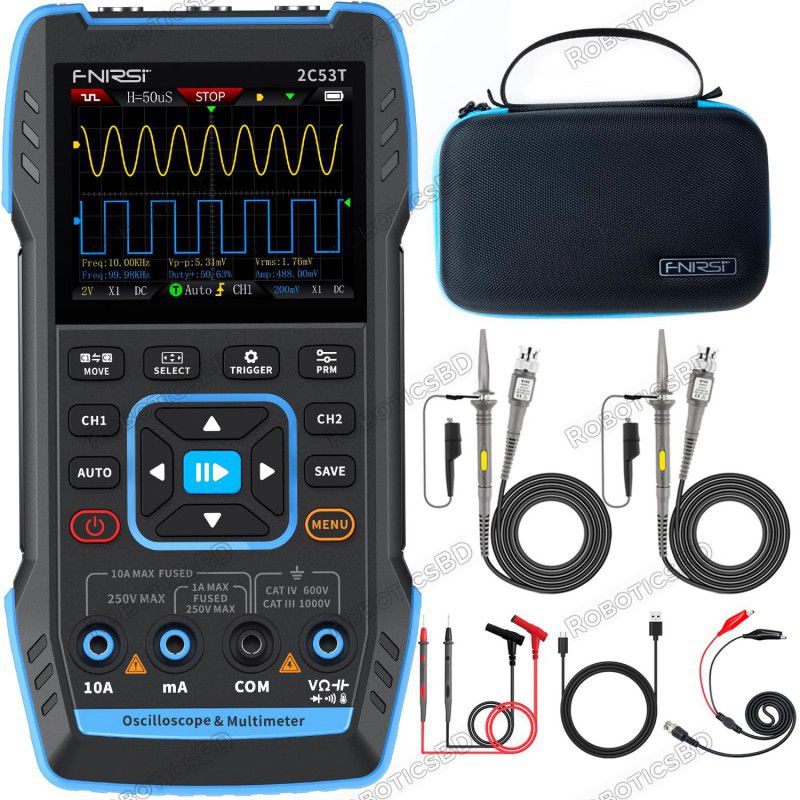

The FNIRSI 2C53T is a compact and powerful 3-in-1 lab instrument that integrates a dual-channel oscilloscope, true RMS multimeter, and DDS signal generator into one handheld device. It features a 50MHz analog bandwidth, 250MSa/s real-time sampling rate, and waveform storage/export capabilities, making it a reliable tool for electronics professionals and enthusiasts alike. With support for math operations, XY mode, cursor measurement, and afterglow persistence, it offers advanced signal analysis functionality. The multimeter supports a full suite of measurements including voltage, current, resistance, capacitance, temperature, diode, and continuity testing. Additionally, the 13-waveform signal generator allows for precise output control in testing and development scenarios. Powered by a 3000mAh battery with up to 6 hours of operation and equipped with a 2.8-inch color LCD display, the FNIRSI 2C53T is the ultimate all-in-one solution for portable diagnostics, development, and testing. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Triple Functionality: Oscilloscope + Multimeter + DDS Signal Generator in one unit.
Dual Channel Oscilloscope: 50MHz bandwidth, 250MSa/s sampling rate, 1Kpts storage depth.
Advanced Oscilloscope Features: Supports math functions, cursor measurement, XY mode, persistence mode, and waveform screenshots.
DDS Signal Generator: Outputs 13 types of waveforms with adjustable frequency (0-50kHz), amplitude, and duty cycle.
High-Accuracy Multimeter: 4.5-digit, 19999 count true RMS with full range of voltage, current, resistance, and capacitance.
Wide Voltage Handling: Can measure up to ±400V in oscilloscope mode and 1000V in multimeter mode.
Color LCD Display: 2.8-inch 320x240 IPS screen for crystal-clear waveform and measurement visualization.
Long Battery Life: Built-in 3000mAh Li-ion battery provides up to 6 hours of standby time.
USB-C Interface: For fast charging and waveform export via PC.
Compact & Portable: Lightweight, durable, and ideal for field technicians, educators, and electronics enthusiasts.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Electronics Repair & Diagnostics: Ideal for troubleshooting circuits and signals.
Embedded System Testing: Analyze waveforms and debug Arduino, ESP32, STM32 projects.
Field Service & Portable Use: Battery-powered, lightweight solution for on-site electronics analysis.
Educational Use: Suitable for labs, universities, and training institutes for hands-on learning.
Prototyping & Development: Analyze outputs, test components, and simulate input signals with the signal generator.
Industrial Equipment Testing: Diagnose PLC systems, motors, sensors, and more.
Signal Simulation: Generate waveforms for circuit response testing and timing analysis.
Sensor Calibration: Use signal output and oscilloscope features for sensor testing and adjustment.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Brand / Model | FNIRSI 2C53T |
| Display | 2.8 inch 320x240 IPS LCD |
| Functionality | Oscilloscope, Multimeter, Signal Generator |
| Oscilloscope Bandwidth | 50 MHz (dual channel) |
| Sample Rate | 250 MSa/s |
| Storage Depth | 1 Kpts |
| Voltage Range (Oscilloscope) | ±400V |
| Vertical Sensitivity | 10mV/div to 10V/div |
| Math / Cursor / XY / Persistence | Supported |
| Waveform Save/Export | Yes (via USB Type-C) |
| Multimeter Voltage | DC: 0–1000V, AC: 0–750V |
| Multimeter Current | DC/AC: up to 9.999A |
| Resistance / Capacitance | Up to 19.99MΩ / 99.99mF |
| Continuity / Diode Test | Yes |
| Temperature Measurement | -551300°C / -672372℉ |
| Signal Generator Output | 0–50kHz, 13 waveforms |
| Power Supply | 3000mAh Li-ion battery, USB-C 5V/1A charging |
| Battery Life | Up to 6 hours (standby) |
| Dimensions | 167 × 89 × 35 mm |
| Weight (Net) | ~345g |
| Shipment Weight | 0.830 kg |
| Shipment Dimensions (cm) | 22 × 14 × 10 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x FNIRSI® 2C53T 50MHz 250MS/s Handheld 3in1 Oscilloscope Multimeter Signal Generator
