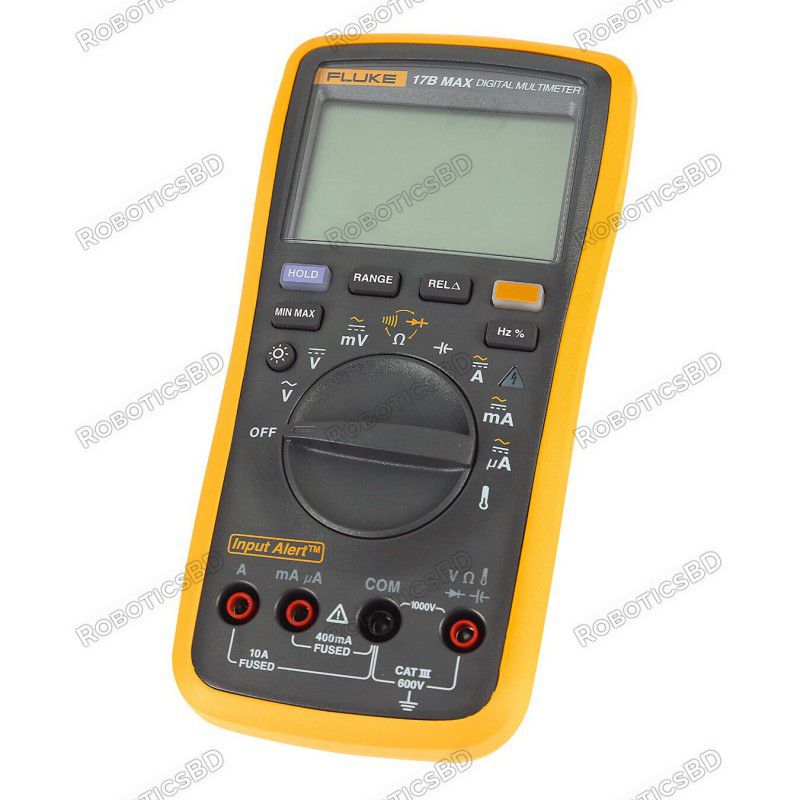

Designed for professionals and electronics enthusiasts alike, the Fluke 17B MAX Digital Multimeter builds upon the legacy of the popular 17B+ model with enhanced functionality, robust protection, and improved ease of use. Ideal for both field and bench applications, the 17B MAX features audible and visual alerts for incorrect connections, fine-tip leads for PCB-level precision, and a straightforward interface for effortless operation.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
Designed for professionals and electronics enthusiasts alike, the Fluke 17B MAX Digital Multimeter builds upon the legacy of the popular 17B+ model with enhanced functionality, robust protection, and improved ease of use. Ideal for both field and bench applications, the 17B MAX features audible and visual alerts for incorrect connections, fine-tip leads for PCB-level precision, and a straightforward interface for effortless operation.
Whether you're measuring voltage, current, resistance, frequency, capacitance, or temperature, the 17B MAX ensures dependable accuracy, extended battery life, and built-in safety features conforming to CAT III 600V ratings.
Audible & Visual Alerts: Instantly identifies incorrect probe connections for added safety.
Fine Tip Test Leads: Ideal for precision measurements on circuit boards.
Smart Sleep Mode: Instantly wakes with a button press for uninterrupted workflow.
Wide Measurement Range: Voltage up to 1000V, current up to 10A, capacitance up to 2000μF.
Frequency & Temperature Measurement: Expands versatility for electronic and HVAC applications.
CAT III 600V Safety Rated: Certified for high-reliability industrial and commercial environments.
DC Voltage: 6.000V to 1000V (±0.5% + 3 digits)
AC Voltage (40Hz–500Hz): 6.000V to 1000V (±1.0% + 3 digits)
DC & AC Current: 400μA to 10.00A (±1.5% + 3 digits)
Resistance: 400Ω to 40MΩ (±0.5% to ±1.5%)
Capacitance: 40nF to 2000μF (±2% to ±5%)
Frequency: 50Hz to 100kHz (±0.1% + 3 digits)
Duty Cycle: 1% to 99%
Range: -55°C to 400°C (±2% or 9% depending on range)
Continuity Test: Audible beep at <70Ω
Diode Test: Up to 2.000V
Input Impedance: >10MΩ (V), >1MΩ (mV)
CMRR (DC): >100dB @ 50/60Hz
Display: 6000-count LCD, updates 3 times/sec
Battery: 2 × AA (500+ hours battery life)
Dimensions: 183 × 91 × 49.5mm
Weight: 455g
Ingress Protection: IP40
Safety: IEC61010 CAT III 600V
Electronic R&D and repair
Industrial system diagnostics
HVAC temperature monitoring
Circuit design and verification
Education and lab use
1 x Fluke 17B MAX Digital Multimeter
1 x Set of fine-tip test leads
2 x AA Batteries (pre-installed)
1 x User Manual
Fluke's reputation for reliability, precision, and safety is unmatched, and the 17B MAX continues that legacy with enhanced alerts, durable design, and essential measurement capabilities tailored for modern technicians and engineers.
The latest price of Fluke 17B MAX Digital Multimeter in Bangladesh is BDT 16,950 You can buy the Fluke 17B MAX Digital Multimeter at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
