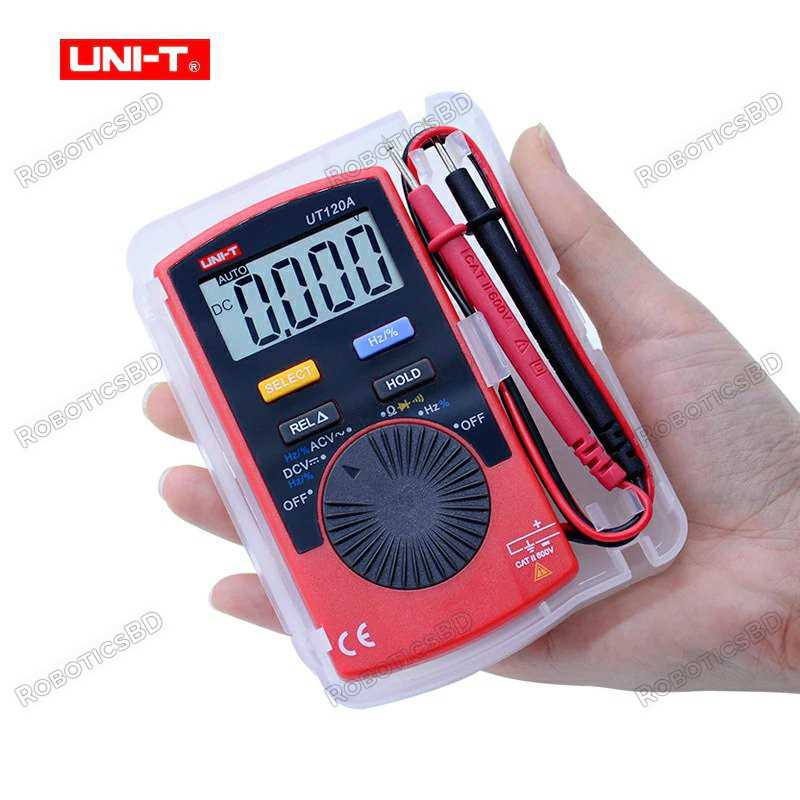

UT120 series multimeters are designed for DIYers and electronics engineers to troubleshoot electronics systems development and electronics circuits. It is a simple and portable multimeter for every electronics engineer.
Models in UT120 Series: UT120A, UT120B, UT120C
Our Model Version is UT120A
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
Specifications of UT120 Series Pocket Size Digital Multimeters
| Specifications | Range | UT120A | UT120B | UT120C |
| DC voltage (V) | 600V | ±(0.8%+1) | ±(0.8%+1) | ±(0.8%+1) |
| AC voltage (V) | 600V | ±(1.2%+3) | ±(1.2%+3) | ±(1.2%+3) |
| DC current (A) | 400mA | ±(1%+3) | ||
| AC current (A) | 400mA | ±(1.5%+5) | ||
| Resistance (Ω) | 40MΩ | ±(1%+2) | ±(1%+2) | ±(1%+2) |
| Capacitance (F) | 100μF | ±(4%+3) | ±(4%+3) | |
| Frequency (Hz) | 10MHz | ±(0.5%+3) | ±(0.5%+3) | ±(0.5%+3) |
| Features | ||||
| Display count | 4000 | 4000 | 4000 | |
| Auto range | √ | √ | √ | |
| Duty cycle | 0.1%~99.9% | √ | √ | √ |
| Diode | √ | √ | √ | |
| Auto power off | Around 30 minutes | √ | √ | √ |
| Continuity buzzer | √ | √ | √ | |
| Low battery indication | ≤2.4V | √ | √ | √ |
| Data hold | √ | √ | √ | |
| Relative mode | √ | √ | √ | |
| Input impedance for DCV | Around 10MΩ | √ | √ | √ |
| General Characteristics | ||||
| Power | 3V battery (CR2032) | |||
| Display | 43mm x 22mm | |||
| Product color | Red and grey | |||
| Product net weight | 76g | |||
| Product size | 110mm x 58.2mm x 10.8mm | |||
| Standard accessories | Battery, carrying case | |||
| Standard individual packing | Blister, English manual | |||
| Standard quantity per carton | 100pcs | |||
| Standard carton measurement | 750mm x 275mm x 490mm (0.1CBM per export carton) | |||
| Standard carton gross weight | 20kg | |||
The latest price of UNI-T UT120A Pocket Size Digital Multimeter in Bangladesh is BDT 1,850 You can buy the UNI-T UT120A Pocket Size Digital Multimeter at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
