The WeAct USB Logic Analyzer DLA Mini is a compact and versatile hardware debugging tool designed for real-time digital signal analysis. Equipped with 8 channels and a maximum sampling rate of 24MHz, this analyzer is ideal for debugging and analyzing microcontrollers, FPGAs, and other digital systems. It is compatible with the open-source sigrok-PulseView software, providing broad protocol support and compatibility with Linux, Windows, and Mac OS X.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement

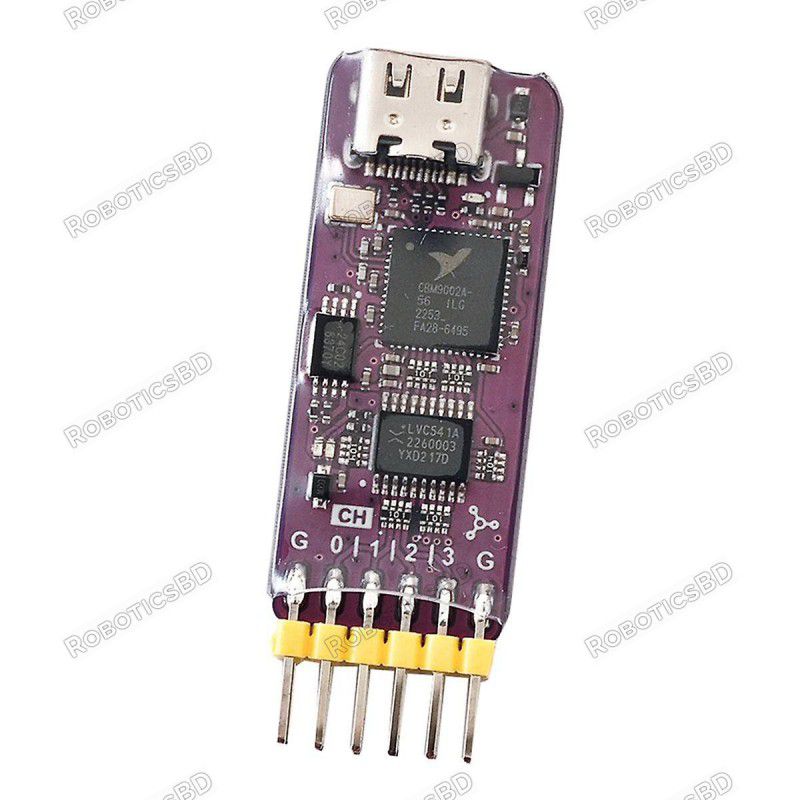

WeAct USB Logic Analyzer DLA Mini 24MHz 8-Channel Debug Tool
The WeAct USB Logic Analyzer DLA Mini is a compact and versatile hardware debugging tool designed for real-time digital signal analysis. Equipped with 8 channels and a maximum sampling rate of 24MHz, this analyzer is ideal for debugging and analyzing microcontrollers, FPGAs, and other digital systems. It is compatible with the open-source sigrok-PulseView software, providing broad protocol support and compatibility with Linux, Windows, and Mac OS X.
High Sampling Rate: 24MHz sampling rate across 8 channels, ensuring accurate signal analysis.
Wide Signal Input Range: Supports 0-5.5V, suitable for various logic levels.
USB 2.0 Interface: High-speed data transfer with USB 2.0; recommended to use a direct USB port for optimal performance.
Cross-Platform Compatibility: Works with sigrok-PulseView, an open-source software supporting over 100 protocol decoders, enabling custom protocol analysis.
Sampling Rate: 24MHz for all 8 channels
Signal Input Range: 0-5.5V
Input High Voltage (VIH): >2V
Input Low Voltage (VIL): <0.8V
Communication: USB 2.0
Download and Install Software:
Install sigrok-PulseView (recommended version 0.4.2) and the appropriate LogicAnalyzer driver.
Firmware Setup:
Run Zadig to select the device and install the fx2lafw driver. The yellow light indicates successful firmware loading.
Signal Analysis:
Use PulseView to start sampling signals. The green LED indicates CH0, and the blue LED indicates CH1.
Sampling Rate Issues: Use a direct USB port rather than a hub to achieve a full 24MHz sampling rate.
Signal Distortion: Ensure the sampling rate is 3-5 times higher than the frequency of the sampled signal.
Firmware Loading: Firmware is dynamically loaded via PulseView, eliminating the need for pre-installed firmware.
1 x WeAct USB Logic Analyzer DLA Mini
The WeAct USB Logic Analyzer is an excellent tool for electronics engineers, hobbyists, and developers who need a reliable and high-performance debugging solution. Its compact size and cross-platform compatibility make it a versatile addition to any toolkit.
WeAct LogicAnalyzerV1 is a logic analyzer designed based on Cypress CY7C68013A/Corebai CBM9002A USB controller. It can collect 8 channels at the same time. The maximum sampling rate of each channel is 24Mhz, and the maximum logical level supports 5.5V. The software adopts sigrok-PulseView, which is open source, and supports Linux, Windows, Mac OS X and other platforms. It supports more than 100 kinds of protocol analysis, and can add its own protocol analysis.
After PulseView is installed, run Zadig, select the device you want to Install the Driver on, check Edit, change the device name to
fx2LAFw, and then clickInstall Driver
See sigrok Supported Protocol decoders
Try to connect the logic analyzer to a separate USB port and do not use a USB docking station
The sampling rate of the general logic analyzer needs to be 3-5 times higher than the frequency of the sampled signal to avoid distortion
Firmware is written online via PulseView, providing little meaning
Support, their own use of programming, but EEPROM only 2Kbit size
The green light indicates CH0 and the blue light indicates CH1
Place msvcr100.dll (Files in Tools folder) in the same directory as pulseview.exe, such as C:Program Files (x86)sigrokPulseView
The latest price of WeAct USB Logic Analyzer DLA Mini 24MHz 8-Channel Debug Tool in Bangladesh is BDT 1,550 You can buy the WeAct USB Logic Analyzer DLA Mini 24MHz 8-Channel Debug Tool at best price from our RoboticsBD or visit RoboticsBD Office.
|
