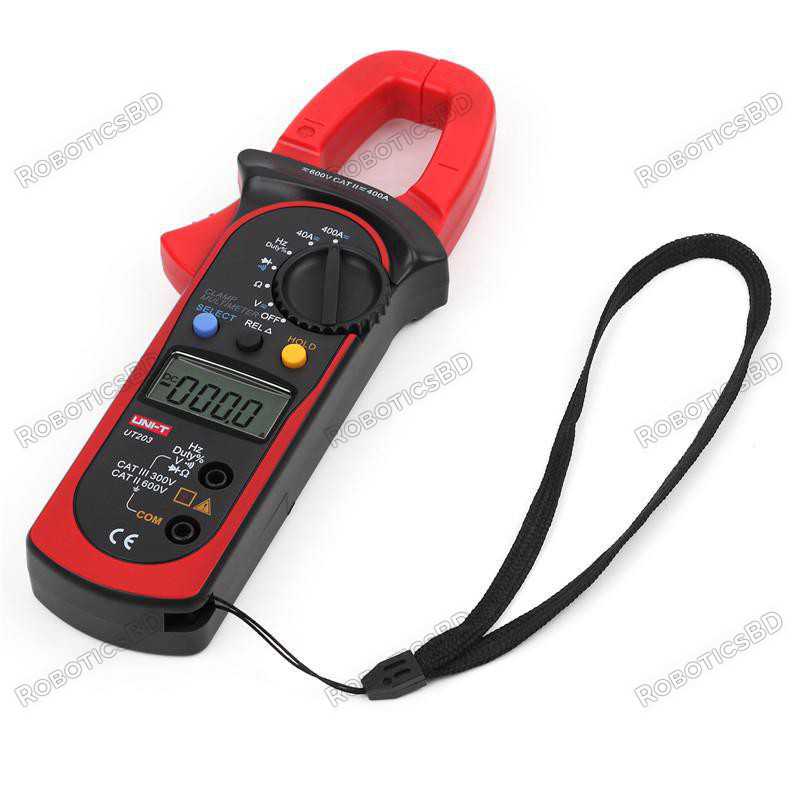

The UNI-T UT203 Digital Clamp Meter is a versatile tool designed for measuring various electrical parameters with ease. With the ability to measure both DC and AC voltage, as well as DC and AC current, it provides accurate readings for a wide range of applications. The DC voltage range covers 400 mV to 600 V, while the AC voltage range extends from 4 V to 600 V. For current measurements, the meter offers a DC current range of 40 A to 400 A and an AC current range of 40 A to 400 A. Powered by two 1.5V batteries (R03), it ensures reliable operation.
The meter features a clear display with dimensions of 37mm x 25mm, making it easy to read the measured values. With a combination of red and grey colors, it has an attractive and professional appearance. The compact and lightweight design, with dimensions of 215mm x 63mm x 36mm and a net weight of 235g, adds to its portability and convenience.. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Product Name | UNI-T UT203 Digital Clamp Meter |
| DC Voltage Range | 400 mV / 4 V / 40 V / 400 V / 600 V |
| AC Voltage Range | 4 V / 40 V / 400 V / 600 V |
| DC Current Range | 40 A / 400 A |
| AC Current Range | 40 A / 400 A |
| Power Source | 1.5V battery (R03) x 2 |
| Display Size | 37mm x 25mm |
| Product Color | Red and grey |
| Product Net Weight | 235g |
| Product Size | 215mm x 63mm x 36mm |
| Shipment Weight | 0.376 kg |
| Shipment Dimensions | 24 × 9 × 6 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x UNI-T UT203 Clamp Meter
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of UNI-T UT203 Clamp Meter in Bangladesh is BDT 3,950 You can buy the UNI-T UT203 Clamp Meter at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
