Multi-functional transistor tester for automatic detection of NPN and PNP transistors, FET, diodes, dual diode, thyristor, SCR, automatic identification of the transistor pinout. It also can be used as square signal and PWM signal generator. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
Note: Product images/ Components brand may vary from actual product as our stock rotates.
Before measuring capacitance, the capacitor must be discharged, otherwise very likely damage the meter.
Note: Batteries not included
| General Specification | |
| Display | 160 x 128 LCD |
| Power Supply | 1 * 9V Battery(not included); DC 6.8-12V |
| Current | Approx. 30mA |
| Resistance Measurement | Max. 50MΩ |
| Resistance Resolution | 0.01Ω |
| Capacitance Measurement | 25pF~100mF |
| Capacitance Resolution | 1pF |
| DC Voltage Measurement | Up to 50V |
| Screen Size | 3.7 * 3cm / 1.45 * 1.18in |
| PCB Size | 7.8 * 6.2cm / 3.1 * 2.44in |
| Product Weight | 66g / 2.3oz |
| Package Weight | 69g / 2.45oz |
| Shipment Weight | 0.069 kg |
| Shipment Dimensions | 18 × 18 × 6 cm |
Please allow 5% measuring deviation due to manual measurement.

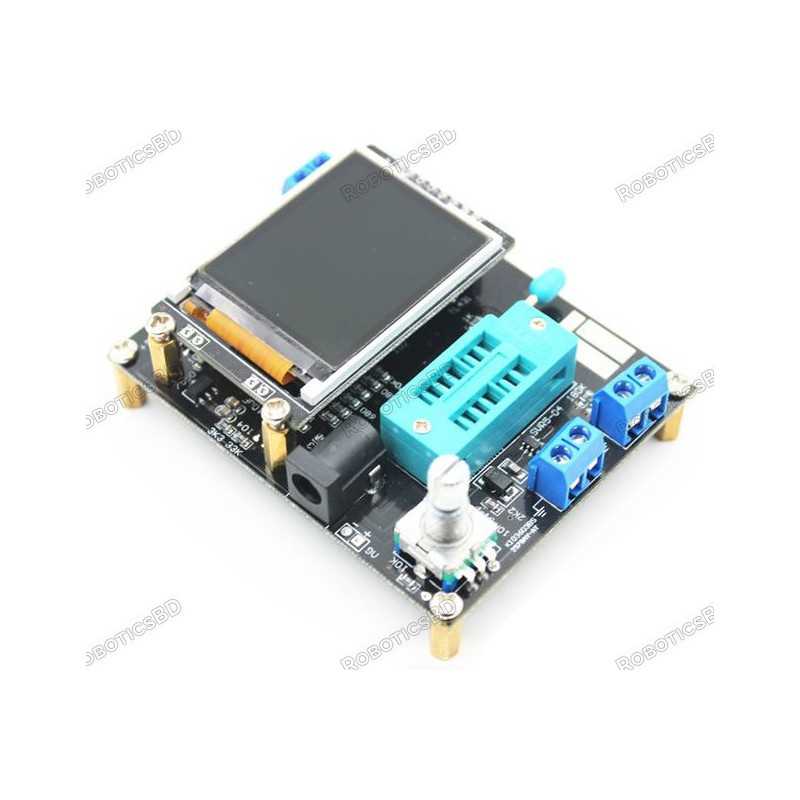

1 x Multifunctional LCD GM328A Transistor Tester Frequency Meter PWM Square Wave Signal Generator
The latest price of Multifunctional LCD GM328A Transistor Tester Frequency Meter PWM Square Wave Signal Generator in Bangladesh is BDT 1,980 You can buy the Multifunctional LCD GM328A Transistor Tester Frequency Meter PWM Square Wave Signal Generator at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
