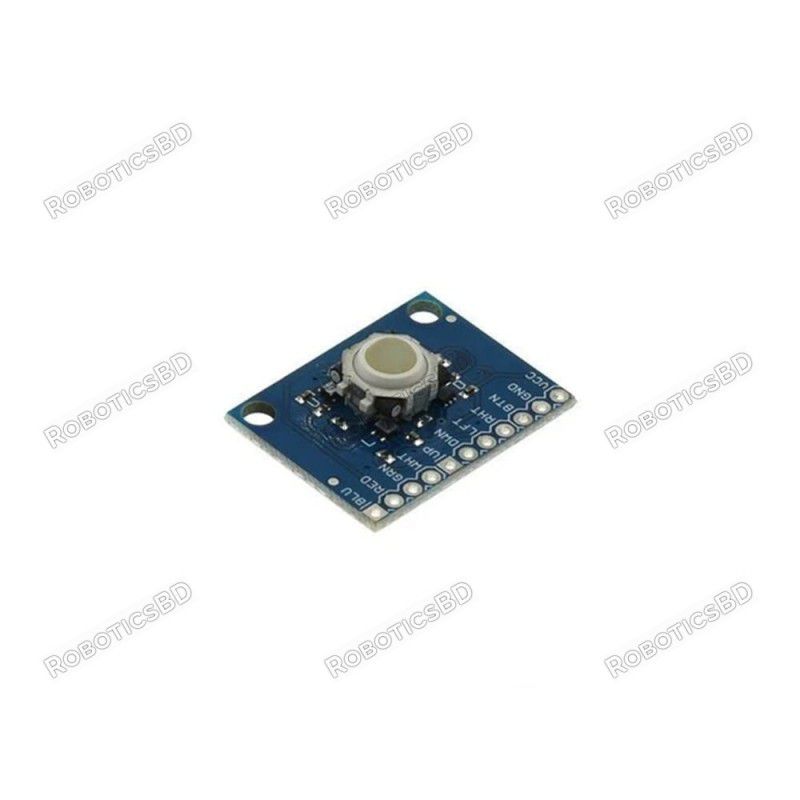

The ICSH044A Trackball Hall Effect Sensor Module is a compact and highly sensitive 4-axis trackball module designed for precise motion tracking and control. It utilizes Hall effect sensors to detect movement in up, down, left, and right directions, with an integrated momentary switch for additional click/selection functionality. The module also features four RGB LEDs (Red, Blue, Green, and White), allowing for customizable illumination.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The ICSH044A Trackball Hall Effect Sensor Module is a compact and highly sensitive 4-axis trackball module designed for precise motion tracking and control. It utilizes Hall effect sensors to detect movement in up, down, left, and right directions, with an integrated momentary switch for additional click/selection functionality. The module also features four RGB LEDs (Red, Blue, Green, and White), allowing for customizable illumination.
Designed for microcontroller integration, the module provides 360° smooth motion tracking, making it ideal for applications requiring fine input control, cursor movement, or joystick-like functionality. It can be used in projects like robotic control, gaming interfaces, custom input devices, and embedded system navigation.
✔ Precise 360° Rotation Tracking – Detects multi-directional motion with high sensitivity.
✔ Hall Effect Sensor Technology – Ensures smooth and accurate tracking with minimal mechanical wear.
✔ Momentary Click Button – Acts as a selection or input switch when pressed.
✔ Built-in RGB LED Lighting – Provides customizable visual feedback.
✔ Microcontroller Compatible – Easily interfaces with Arduino, ESP32, Raspberry Pi, and other MCUs.
✔ Compact & Durable Design – 22mm × 28mm PCB size, making it ideal for embedded applications.
✔ Wide Operating Voltage – Supports 2.5V to 5.25V, making it flexible for different power sources.
| Parameter | Specification |
|---|---|
| Model | ICSH044A |
| Operating Voltage | 2.5V - 5.25V |
| Motion Detection | Up, Down, Left, Right (Hall Effect Sensors) |
| Selection Button | Integrated Momentary Push Switch |
| LEDs | Red, Blue, Green, White |
| Output Type | Digital (High/Low transitions per movement) |
| PCB Dimensions | 22mm × 28mm |
| Interface | Standard 0.1” pitch header for easy connection |
✔ Embedded System Navigation – Ideal for custom UI controls and cursor navigation.
✔ Human-Machine Interfaces (HMI) – Used in industrial control panels, kiosks, and automation systems.
✔ Gaming Controllers & Simulations – Adds smooth joystick-like motion tracking to DIY gaming projects.
✔ Robotics & RC Control – Enhances precision control in robotic movement or drone navigation.
✔ Wearable Devices – Implement as a compact control input for smart wearables.
✔ Assistive Technology – Can be integrated into accessibility devices for motion-based control.
✅ Hall Effect Sensor Technology for Accurate Motion Sensing
✅ Compact & Lightweight, Ideal for Embedded Applications
✅ 360° Motion Detection for Enhanced User Control
✅ Built-in Click Button for Additional Functionality
✅ Customizable LED Lighting for Visual Feedback
✅ Compatible with Arduino, ESP32, Raspberry Pi & More
The latest price of ICSH044A Trackball Hall Effect Sensor Module in Bangladesh is BDT 499 You can buy the ICSH044A Trackball Hall Effect Sensor Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
