Note: Relay might be different from the picture as per stock
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement

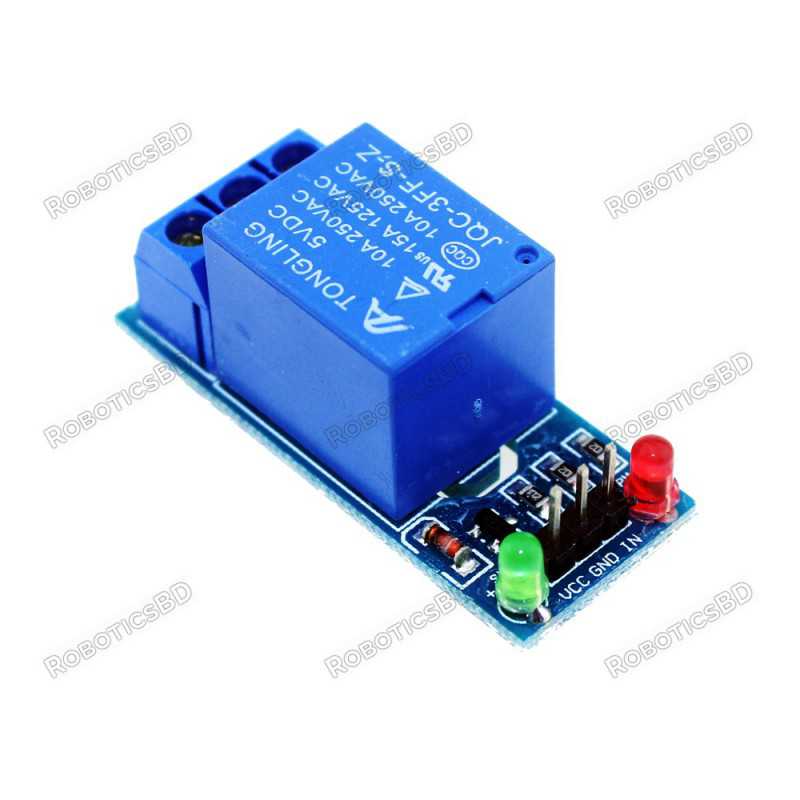

It is a 1 Channel 5V Relay Board Module. The relay normally open interface maximum load: AC 250V/10A, DC 30V/10A. It has a trigger current of 5mA, and module working voltage of DC 5V. Each channel of the module can be triggered by a jumper to set a high level or a low level. Fault-tolerant design, even if the control line is disconnected, the relay will not move. With status indicator: power (green), 1-channel relay status indicator (red). All module size interfaces can be directly connected through the terminal block, which is convenient and practical. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Operating Voltage (VDC) | 3 ~ 5 |
| Trigger Voltage (VDC) | 5 |
| Trigger Current (mA) | 20 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
| Operating Temperature (°C) | -40 to 85 |
| Opt. Relative Humidity(RH) | 20% ～ 85% |
| Storage condition (℃) | – 65 to 175 |
| Length (mm) | 43 |
| Width (mm) | 26.3 |
| Height (mm) | 17 |
| Weight (gm) | 14 |
| Shipment Weight | 0.018 kg |
| Shipment Dimensions | 8 × 5 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x 1 Channel 5V Relay Board Module.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of 1 Channel 5V Relay Board Module in Bangladesh is BDT 95 You can buy the 1 Channel 5V Relay Board Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
