Note: Relay might be different from the picture as per stock
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement

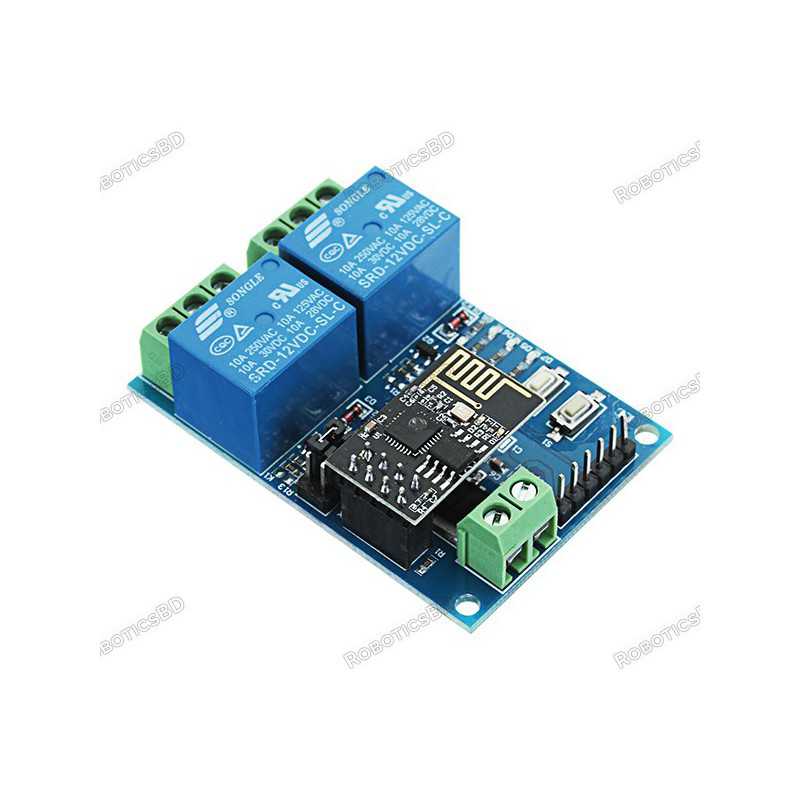

This Wi-Fi relay module carries an ESP8266 Wi-Fi module and microcontroller. It will send the serial port instructions to the cell phone APP and Implementation within the local area network (LAN) for wireless control relay. RoboticsBD
This module is ideally suited to controlling larger voltages in your project through WIFI. This is a 1 channel relay module that can be used to activate up to 250V AC and 30V DC. This allows you to build in device control, operating remote lights, or triggering systems when the module is supplied with a signal from an ESP8266 module. RoboticsBD
The module has an LED that lights relative to the state of the module. A red power activation LED that lights when a signal is received on the IN pin. When a signal is received an audible click can be heard as the relay triggers, connecting the output pins. The relay is controlled via the included ESP8266. This will require configuration via UART prior to full operation. Once it is programmed and powered it will look after itself, making it ideal for use in internet of things “IOT” based projects. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
How to Use:
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Transmission Distance(m) : | 400 |
| Relay Channel: | 2 |
| Trigger Voltage (VDC): | 5 |
| Switching Voltage (VAC): | 250@10A |
| Switching Voltage (VDC): | 30@10A |
| Baud Rate: | 9600 |
| Shipment Weight | 0.035 kg |
| Shipment Dimensions | 10 × 8 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x ESP8266 Dual WiFi Relay Module Internet Of Things Smart Home Mobile APP Remote Switch.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of ESP8266 Dual WiFi Relay Module Internet Of Things Smart Home Mobile APP Remote Switch in Bangladesh is BDT 835 You can buy the ESP8266 Dual WiFi Relay Module Internet Of Things Smart Home Mobile APP Remote Switch at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
