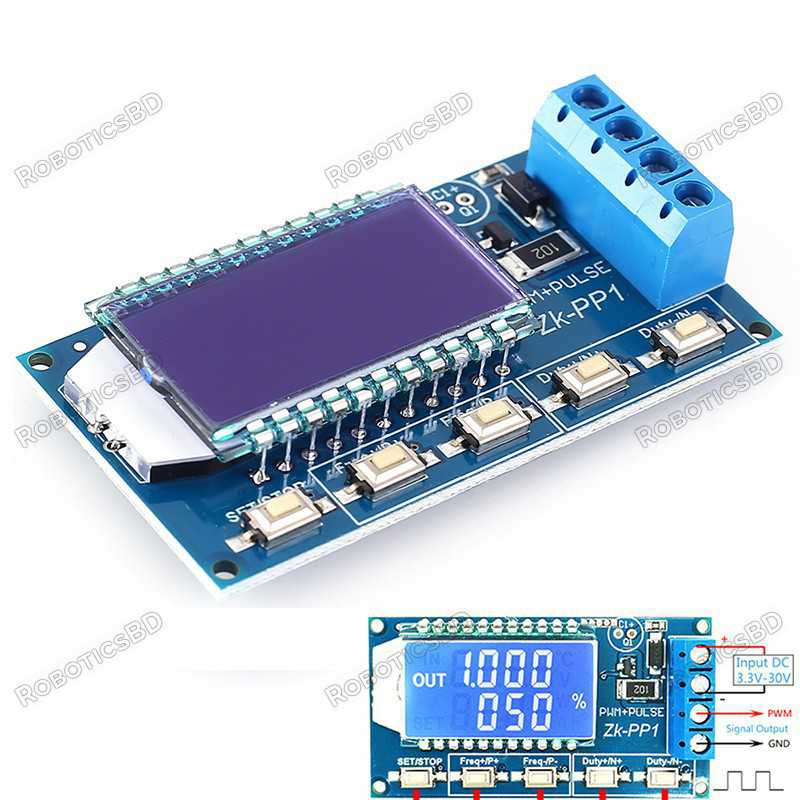

The ZK-PP1 PWM Signal Generator is a highly versatile and reliable device, designed to meet the needs of both professional and hobbyist users. Equipped with PWM and PULSE modes, this signal generator allows users to customize frequency, duty cycle, and pulse parameters with ease. Its high-definition LCD display simplifies operation, ensuring accurate settings for every use case. Built to perform under varying environmental conditions, the ZK-PP1 is compact yet powerful, making it an essential tool for signal testing, motor control, and other technical applications. Whether in production environments or research projects, the ZK-PP1 guarantees precision and dependability. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Product Name | ZK-PP1 PWM Signal Generator |
| Model | ZK-PP1 |
| Working Voltage | DC 3.3V-30V |
| Frequency Range | 1Hz~150KHz |
| Frequency Accuracy | ±2% |
| Duty Cycle Range | 0.00%-100% |
| Output Current | Approximately 30mA |
| Number of Pulses | 1~9999 or Infinite |
| Delay Time | 0.000s~9999s |
| Pulse Width | 0.000s~9999s |
| Time Accuracy | 1ms |
| Output Amplitude | Same as input voltage |
| Working Temperature | -40°C~85°C |
| Working Humidity | 0%~95%RH |
| Size | 60 x 32 x 13.5mm |
| Shipment Weight | 0.018kg |
| Shipment Dimensions | 6 x 4 x 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
PWM Mode:
PULSE Mode:
Note:
This signal generator provides 1-channel signal output.
Maximum output current is 30mA, suitable for driving low-power devices.
Please refer to the user manual and description before use.
1 x 3.3V-30V 1Ch 1Hz-150KHz Dual Mode Signal Generator Square Wave LCD PWM Pulse Frequency Duty Cycle Module
