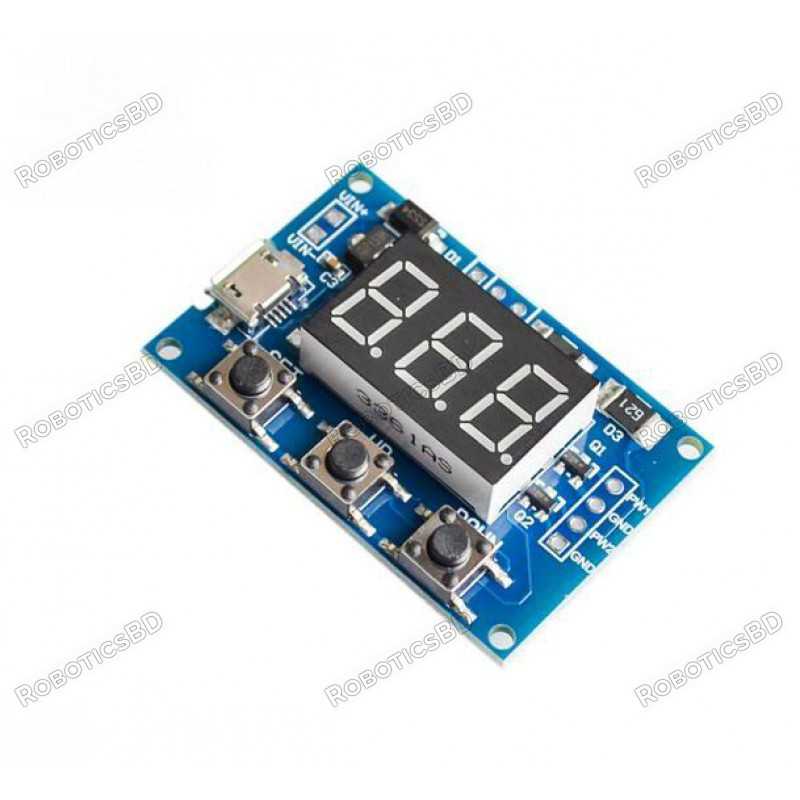

The 2-Channel PWM Pulse Frequency Adjustable Signal Generator Module is a versatile tool for creating square and rectangular waveforms. Designed for development and experimentation, it is ideal for driving stepper motor drivers, generating adjustable pulses for MCUs, and controlling circuits such as light dimmers. With a wide frequency range (1Hz to 150KHz) and precise duty cycle adjustments, this module supports serial port control for remote configuration. Its compact design and easy-to-use interface make it an essential addition to your electronics toolkit. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Operating Voltage | 5–30V DC |
| Frequency Range | 1Hz to 150KHz |
| Frequency Precision | ±2% |
| Duty Cycle Range | 1% to 100% |
| Serial Port Standard | 9600 bps, 8N1 configuration |
| Output Current | 8–30mA |
| Operating Temperature | -30°C to +60°C |
| Interface Type | Micro USB and buttons |
| Dimensions | 44x30x11mm |
| Weight | 8g |
| Shipment Weight | 0.0086 kg |
| Shipment Dimensions | 5 x 3 x 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Setting successfully back: DOWN
Setting unsuccessfully back: FALL
1 x 2 Channel PWM Pulse Frequency Adjustable Duty Cycle Square Wave Rectangular Wave Signal Generator Module
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of 2 Channel PWM Pulse Frequency Adjustable Duty Cycle Square Wave Rectangular Wave Signal Generator Module in Bangladesh is BDT 350 You can buy the 2 Channel PWM Pulse Frequency Adjustable Duty Cycle Square Wave Rectangular Wave Signal Generator Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
