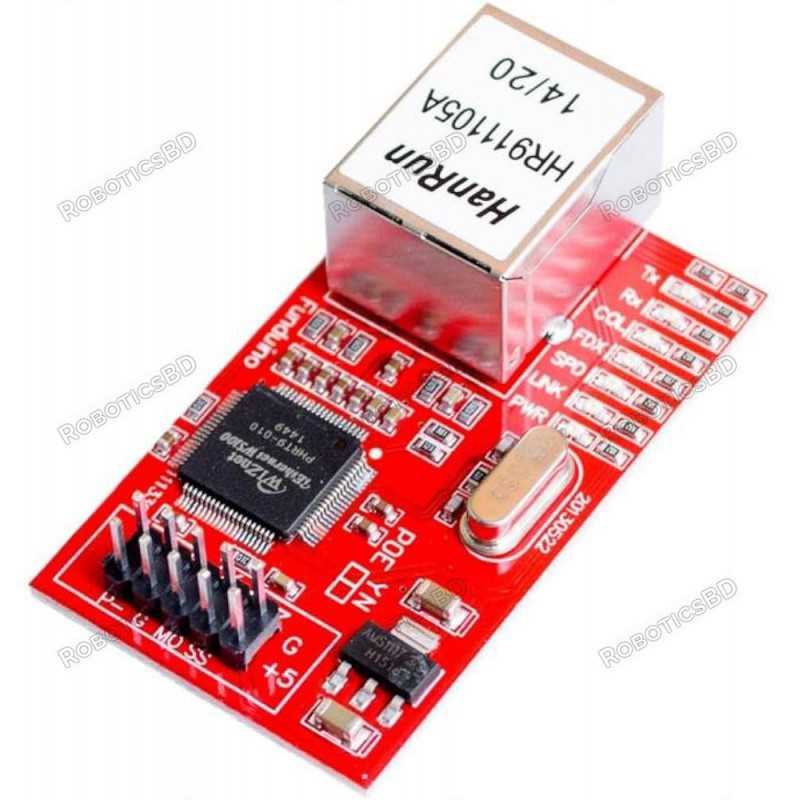

This is W5100 Ethernet Module Ethernet Network Module for arduino.
The W5100 Ethernet Module is a full-featured, single-chip. This Ethernet controller is designed for embedded applications; where ease of integration, stability, performance, area and system cost control are requires.
The W5100 Ethernet Module has been designed to facilitate easy implementation of Internet connectivity without OS. W5100 is IEEE 802.3 17 BASE-T and 802.3u 10 BASE-TX compliant.
The W5100 includes fully hardwired, market-proven TCP/IP stack and integrated Ethernet MAC & PHY. Hardwired TCP/IP stack supports TCP, UDP, IPv4, ICMP, ARP, IGMP and PPPoE which has been proven in various application for several years. A 16kbytes internal buffer is included for data transmission.
No need of consideration for handling Ethernet Controller, but simple socket programming is required.
Connect to Uno/Mega
V+5: 5v
GND: GND
MO: D11 (D51)
MI: D12 (D50)
SCK: D13 (D52)
RST: RESET
1 x W5100 Ethernet Module.
The latest price of W5100 Ethernet Network Module for Arduino in Bangladesh is BDT 910 You can buy the W5100 Ethernet Network Module for Arduino at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
